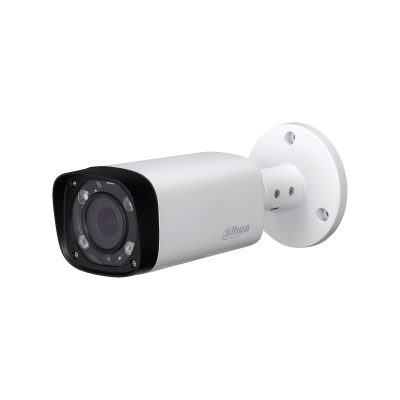

Dahua Technology Pro DH-HAC-HFW2401R-Z-IRE6 security camera Bullet IP security camera Indoor & outdoor
Dahua Technology

Pro DH-HAC-HFW2401R-Z-IRE6 security camera Bullet IP security camera Indoor & outdoor

2688 x 1520 pixels Ceiling/wall

Model DH-HAC-HFW2401R-Z-IRE6

63 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight610 g
  • ColourWhite
  • Form factorBullet
  • Camera pan controlYes
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
610 g
Colour
White
Form factor
Bullet
Camera pan control
Yes
Brand
Dahua Technology
Model
DH-HAC-HFW2401R-Z-IRE6
Part number
DH-HAC-HFW2401R-Z-IRE6
Also known as
Dahua Technology Pro DH-HAC-HFW2401R-Z-IRE6 security camera Bullet IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling/wall

Specifications

63 specifications in 14 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Languages supportMulti
CertificationCE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Design

Form factorBullet
Mounting typeCeiling/wall
Product colourWhite
Housing materialAluminium
International Protection (IP) codeIP67

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.01 lx
Angle of rotation360°
Tilt angle range0 - 87°
Pan range0 - 360°
White balanceAuto, Manual
Camera shutter speed1/4 - 1/100000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes
Number of effective pixels (H x V)2688 x 1520 pixels

Lens system

Focal length range2.7 - 13.5 mm
Maximum aperture number1.3
Detect distance (tele)222 m
Detect distance (wide)64 m
Identify distance (tele)22 m
Identify distance (wide)6 m
Observe distance (tele)89 m
Observe distance (wide)26 m
Recognize distance (tele)44 m
Recognize distance (wide)13 m

Night vision

Night visionYes
Night vision distance60 m
LED typeIR
Number of illumination LEDs4

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Frame rate30 fps
Noise reductionYes
Noise reduction technologyUltra 2D noise reduction, Ultra 3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Highlight Compensation (HLC)Yes
Smart IRYes

Audio

Signal-to-Noise Ratio (SNR)65 dB
Voice codecsAGC

Network

Ethernet LANNo
Wi-FiNo
BluetoothNo

Storage

Built-in HDDNo

Power

Power source typeDC
Power consumption (max)11.1 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 90%

Weight & dimensions

Diameter9.04 cm
Length213 mm
Weight610 g

Packaging content

Number of cameras1
