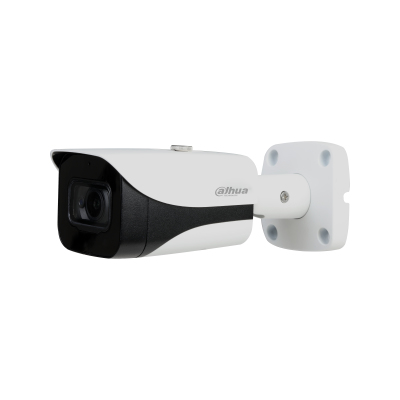

Dahua Technology Pro DH-HAC-HFW2241E-A security camera Bullet CCTV security camera Indoor & outdoor
Dahua Technology

Pro DH-HAC-HFW2241E-A security camera Bullet CCTV security camera Indoor & outdoor

1920 x 1080 pixels Ceiling/wall

Model DH-HAC-HFW2241E-A

72 specifications
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight300 g
  • ColourWhite
  • Form factorBullet
  • Minimum illumination0.004 lx
See all specifications

Overview

Connectivity
Wired
Type
CCTV security camera
Weight
300 g
Colour
White
Form factor
Bullet
Minimum illumination
0.004 lx
Brand
Dahua Technology
Model
DH-HAC-HFW2241E-A
Part number
DH-HAC-HFW2241E-A
Also known as
Dahua Technology Pro DH-HAC-HFW2241E-A security camera Bullet CCTV security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall

Specifications

72 specifications in 17 groups

Performance

TypeCCTV security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
Remote viewingYes
CertificationCE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Design

Form factorBullet
Mounting typeCeiling/wall
Product colourWhite
Housing materialAluminium
Protection featuresVandal proof
International Protection (IP) codeIP67

Camera

Minimum illumination0.004 lx
Angle of rotation360°
Lens viewing angle, horizontal86.9°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Manual
Camera shutter typeElectronic

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes
Number of effective pixels (H x V)1920 x 1080 pixels

Lens system

Number of lenses1
Detect distance55 m
Observe distance22 m
Recognize distance11 m
Fixed focusYes
Identify distance6 m
Maximum aperture number1.6
Closest focusing distance1.2 m
Fixed focal length3.6 mm

Night vision

Night visionYes
Night vision distance40 m
LED typeIR
Number of illumination LEDs2

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Supported graphics resolutions1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Frame rate30 fps
Analog signal format systemNTSC, PAL
3D NR (Noise Reduction)Yes
Automatic gain controlYes
Back Light Compensation (BLC)Yes
Full HDYes
Highlight Compensation (HLC)Yes
Smart IRYes

Audio

Audio input channels1.0 channels
Built-in microphoneYes

Network

Ethernet LANNo
Wi-FiNo
BluetoothNo

Storage

Built-in HDDNo

Ports & interfaces

BNC output ports1

Security

Intelligent Video Surveillance (IVS) system featuresFace detection

Power

Power source typeDC
Power consumption (max)6.7 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Width179.9 mm
Depth70 mm
Height70 mm
Weight300 g

Packaging data

Package weight410 g

Packaging content

Number of cameras1
