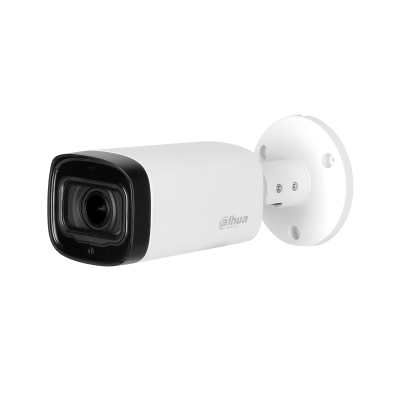

Lite Plus DH-HAC-HFW1801RN-ZIRE6 security camera Bullet CCTV security camera Indoor & outdoor
3840 x 2160 pixels Ceiling/Wall/Pole
Model DH-HAC-HFW1801RN-ZIRE6
65 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight550 g
- ColourWhite
- Form factorBullet
- Camera pan controlNo
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 550 g
- Colour
- White
- Form factor
- Bullet
- Camera pan control
- No
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-HAC-HFW1801RN-ZIRE6
- Part number
- DH-HAC-HFW1801RN-ZIRE6
- Also known as
- Dahua Technology Lite Plus DH-HAC-HFW1801RN-ZIRE6 security camera Bullet CCTV security camera Indoor & outdoor 3840 x 2160 pixels Ceiling/Wall/Pole
Specifications
65 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Ceiling/Wall/Pole |
| Product colour | White |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | No |
| Camera tilt control | No |
| Minimum illumination | 0.03 lx |
| Angle of rotation | 360° |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 360° |
| White balance | Auto, Manual |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/3 - 1/100000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Zoom capability | Yes |
| Digital zoom | 4x |
| Focal length range | 2.7 - 13.5 mm |
| Auto focus | Yes |
| Maximum aperture number | 1.7 |
| Closest focusing distance | 0.8 m |
| Detect distance (tele) | 264 m |
| Detect distance (wide) | 90 m |
| Identify distance (tele) | 26 m |
| Identify distance (wide) | 9 m |
| Observe distance (tele) | 106 m |
| Observe distance (wide) | 36 m |
| Recognize distance (tele) | 53 m |
| Recognize distance (wide) | 18 m |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 60 m |
| LED type | IR |
| Number of illumination LEDs | 4 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Total megapixels | 8 MP |
| Supported graphics resolutions | 960 x 480, 960 x 576, 2560 x 1440, 2592 x 1944 |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Privacy masking | Yes |
| Smart IR | Yes |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
Security
| Specification | Value |
|---|---|
| Mirror | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (typical) | 11 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -30 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 90.4 mm |
| Depth | 209.9 mm |
| Height | 90.4 mm |
| Weight | 550 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 700 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
