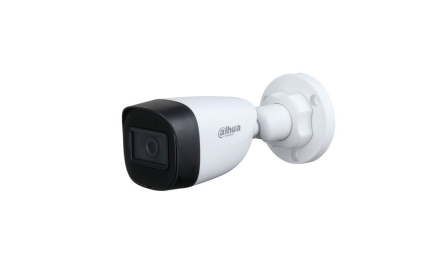

Dahua Technology Lite DH-HAC-HFW1801CN(-A) security camera Bulb CCTV security camera Indoor & outdoor
Dahua Technology

Lite DH-HAC-HFW1801CN(-A) security camera Bulb CCTV security camera Indoor & outdoor

3840 x 2160 pixels Ceiling/Wall/Pole

Model DH-HAC-HFW1801CN(-A)

71 specifications
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight220 g
  • ColourWhite
  • Form factorBulb
  • Camera pan controlYes
See all specifications

Overview

Connectivity
Wired
Type
CCTV security camera
Weight
220 g
Colour
White
Form factor
Bulb
Camera pan control
Yes
Brand
Dahua Technology
Model
DH-HAC-HFW1801CN(-A)
Part number
DH-HAC-HFW1801CN(-A)
Also known as
Dahua Technology Lite DH-HAC-HFW1801CN(-A) security camera Bulb CCTV security camera Indoor & outdoor 3840 x 2160 pixels Ceiling/Wall/Pole

Specifications

71 specifications in 16 groups

Performance

TypeCCTV security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
CertificationCE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035 FCC: 47 CFR FCC Part 15, Subpart B; UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14

Design

Form factorBulb
Mounting typeCeiling/Wall/Pole
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.001 lx
Angle of rotation360°
Lens viewing angle, horizontal106°
Lens viewing angle, vertical56°
Lens viewing angle, diagonal125°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Progressive scanYes

Lens system

Number of lenses1
Zoom capabilityYes
Detect distance88 m
Observe distance32.5 m
Recognize distance17.6 m
Identify distance8.8 m
Maximum aperture number2
Fixed focal length2.8 mm

Night vision

Night visionYes
Night vision distance30 m
LED typeIR

Video

Maximum resolution3840 x 2160 pixels
Total megapixels8 MP
Supported video modes1080p, 2160p
Frame rate15 fps
Analog signal format systemNTSC
Noise reductionYes
Noise reduction technology3D noise reduction
Back Light Compensation (BLC)Yes
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Smart IRYes

Audio

Signal-to-Noise Ratio (SNR)65 dB
Built-in microphoneYes

Network

Ethernet LANNo
Wi-FiNo
BluetoothNo

Storage

Built-in HDDNo

Ports & interfaces

BNC output ports1

Power

Power source typeDC
Power consumption (max)4.8 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Width161.3 mm
Depth69.7 mm
Height70 mm
Weight220 g

Packaging data

Package width182 mm
Package depth90 mm
Package height77 mm
Package weight320 g

Packaging content

Number of cameras1
