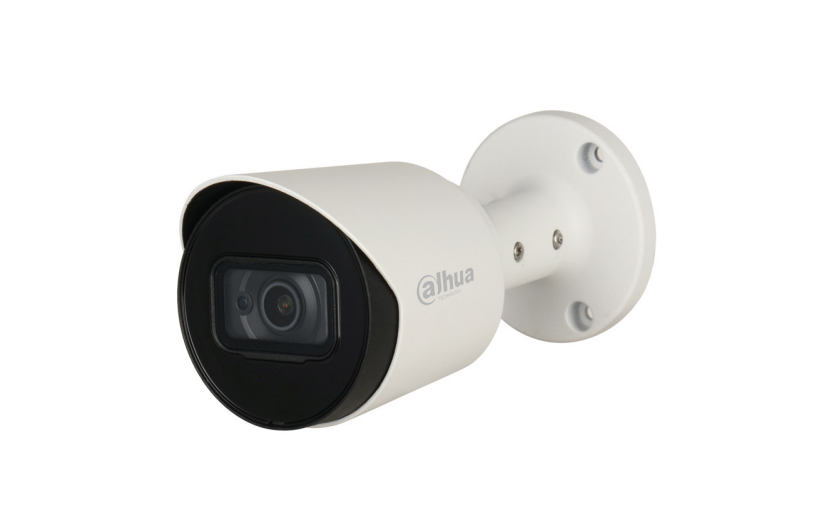

Dahua Technology Lite DH-HAC-HFW1800TN-A-0360B security camera Bullet IP security camera Outdoor

Dahua Technology Lite DH-HAC-HFW1800TN-A-0360B security camera Bullet IP security camera Outdoor

3840 x 2160 pixels Wall

Model DH-HAC-HFW1800TN-A-0360B

77 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight350 g
  • ColourWhite
  • Form factorBullet
  • Angle of rotation360°
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
350 g
Colour
White
Form factor
Bullet
Angle of rotation
360°
Brand
Dahua Technology
Model
DH-HAC-HFW1800TN-A-0360B
Part number
DH-HAC-HFW1800TN-A-0360B
Also known as
Dahua Technology Lite DH-HAC-HFW1800TN-A-0360B security camera Bullet IP security camera Outdoor 3840 x 2160 pixels Wall

Specifications

77 specifications in 17 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationCE (EN55032, EN55024, EN50130-4,EN60950-1) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Design

Form factorBullet
Mounting typeWall
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67

Camera

Angle of rotation360°
Lens viewing angle, horizontal87°
Lens viewing angle, vertical47°
Lens viewing angle, diagonal104°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Manual
Camera shutter typeElectronic
Camera shutter speedPAL: 1/25s–1/100000s NTSC: 1/30s–1/100000s
Adjustment shutter speedAuto/Manual
Number of Privacy masking areas8
Viewing angle, horizontal (2.8mm lens)105°
Viewing angle, vertical (2.8mm lens)56°
Viewing angle, diagonal (2.8mm lens)125°
Viewing angle, horizontal (6mm lens)54.7°
Viewing angle, vertical (6mm lens)31.3°
Viewing angle, diagonal (6mm lens)62.4°

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes
Number of effective pixels (H x V)3840 x 2160 pixels

Lens system

Focal length range3.6 mm
Maximum aperture number2
Closest focusing distance1.9 m
Detect distance (2.8mm lens)74.7 m
Observe distance (2.8mm lens)29.9 m
Recognize distance (2.8mm lens)14.9 m
Identify distance (2.8mm lens)7.5 m
Detect distance (6mm lens)160 m
Observe distance (6mm lens)64 m
Recognize distance (6mm lens)32 m
Identify distance (6mm lens)16 m

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs1

Video

Maximum resolution3840 x 2160 pixels
Total megapixels4 MP
Supported graphics resolutions960 x 480, 960 x 576, 2560 x 1440, 2592 x 1944, 3840 x 2160
Frame rate30 fps
Noise reductionYes
Noise reduction technology2D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Smart IRYes

Audio

Audio input channels1.0 channels
Built-in microphoneYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo

Ports & interfaces

BNC output ports1

Security

MirrorYes

Power

Power source typeDC
Power consumption (max)4.3 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Width174.5 mm
Depth70.6 mm
Height72.3 mm
Weight350 g

Packaging data

Package weight450 g

Packaging content

Number of cameras1

Technical details

IrisYes
