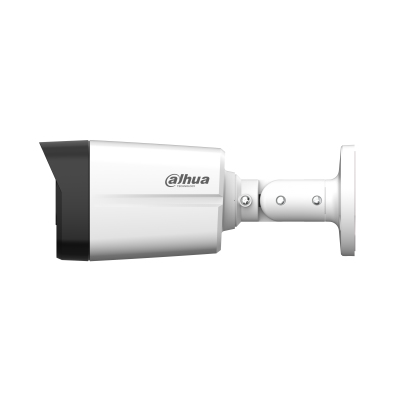

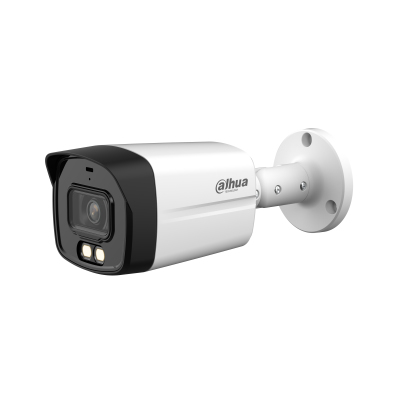

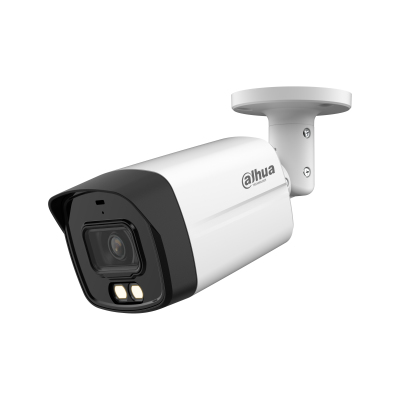

Dahua Technology Lite DH-HAC-HFW1509TLMP-IL-A security camera Turret CCTV security camera Outdoor
Dahua Technology

Lite DH-HAC-HFW1509TLMP-IL-A security camera Turret CCTV security camera Outdoor

2880 x 1620 pixels Ceiling

Model DH-HAC-HFW1509TLMP-IL-AEAN 6923172540607

76 specifications
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight340 g
  • ColourWhite
  • Form factorTurret
  • Minimum illumination0 lx
See all specifications

Overview

Connectivity
Wired
Type
CCTV security camera
Weight
340 g
Colour
White
Form factor
Turret
Minimum illumination
0 lx
Brand
Dahua Technology
Model
DH-HAC-HFW1509TLMP-IL-A
Part number
DH-HAC-HFW1509TLMP-IL-A
EAN / UPC
6923172540607
Also known as
Dahua Technology Lite DH-HAC-HFW1509TLMP-IL-A security camera Turret CCTV security camera Outdoor 2880 x 1620 pixels Ceiling

Specifications

76 specifications in 16 groups

Performance

TypeCCTV security camera
Placement supportedOutdoor
Connectivity technologyWired
Picture overlay2880 x 1620 pixels
Maximum operating distance78 m
Wide Dynamic Range (WDR)Yes
Infrared (IR) cut-off filterYes
Built-in lightYes
Luminous flux0.0001 lm
Dynamic range120 dB
Light exposure modesAuto, Manual

Design

Form factorTurret
Mounting typeCeiling
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67

Camera

Minimum illumination0 lx
Angle of rotation360°
Lens viewing angle, horizontal111°
Lens viewing angle, vertical57°
Lens viewing angle, diagonal131°
Tilt angle range0 - 90°
Pan range0 - 360°
Camera shutter typeElectronic
Camera shutter speed1/3 s–1/100000 s
Adjustment shutter speedAuto

Image sensor

Sensor typeCMOS

Lens system

Number of lenses1
Zoom capabilityYes
Digital zoom4x
Detect distance66 m
Observe distance26.4 m
Recognize distance13.2 m
Fixed focusYes
Identify distance6.6 m
Maximum aperture number1
Fixed focal length2.8 mm

Night vision

Night visionYes
Night vision distance40 m

Video

Maximum resolution2880 x 1620 pixels
Total megapixels5 MP
Supported graphics resolutions960 x 480, 960 x 576, 1920 x 1080 (HD 1080), 2560 x 1440, 2880 x 1620
Supported video modes480p, 576i, 1080p, 1440p, 1620p
Analog signal format systemNTSC, PAL
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Image quality adjustmentMirror
Privacy maskingYes
Smart IRYes

Audio

Signal-to-Noise Ratio (SNR)65 dB
Audio detectionYes

Storage

Built-in HDDNo

Ports & interfaces

BNC output ports1
Microphone inYes

Security

MirrorYes

Power

Power source typeDC
Power consumption (typical)5.7 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

Weight & dimensions

Width198.4 mm
Depth80.2 mm
Height76.2 mm
Weight340 g

Packaging data

Package width240 mm
Package depth115 mm
Package height111 mm
Package weight510 g

Packaging content

Number of cameras1
Mounting kitYes
