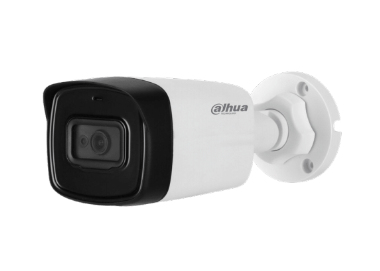

Dahua Technology Lite DH-HAC-HFW1400TL-A security camera Bullet CCTV security camera Indoor & outdoor
Dahua Technology

Lite DH-HAC-HFW1400TL-A security camera Bullet CCTV security camera Indoor & outdoor

2560 x 1440 pixels Ceiling/wall

Model DH-HAC-HFW1400TL-A

72 specifications
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight230 g
  • ColourWhite
  • Form factorBullet
  • Camera pan controlYes
See all specifications

Overview

Connectivity
Wired
Type
CCTV security camera
Weight
230 g
Colour
White
Form factor
Bullet
Camera pan control
Yes
Brand
Dahua Technology
Model
DH-HAC-HFW1400TL-A
Part number
DH-HAC-HFW1400TL-A
Also known as
Dahua Technology Lite DH-HAC-HFW1400TL-A security camera Bullet CCTV security camera Indoor & outdoor 2560 x 1440 pixels Ceiling/wall

Specifications

72 specifications in 16 groups

Performance

TypeCCTV security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
Languages supportMulti
CertificationCE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpart B, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Design

Form factorBullet
Mounting typeCeiling/wall
Product colourWhite
Housing materialPlastic
International Protection (IP) codeIP67

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0 lx
Angle of rotation360°
Lens viewing angle, horizontal76.4°
Lens viewing angle, vertical41.6°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Manual
Camera shutter typeElectronic
Camera shutter speedPAL: 1/25 - 1/100000; NTSC: 1/30 - 1/100000

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes

Lens system

Number of lenses1
Detect distance80 m
Observe distance32 m
Recognize distance16 m
Identify distance8 m
Maximum aperture number2
Closest focusing distance1.4 m
Fixed focal length3.6 mm

Night vision

Night visionYes
Night vision distance40 m
LED typeIR
Number of illumination LEDs2

Video

Maximum resolution2560 x 1440 pixels
Total megapixels4 MP
Supported graphics resolutions1920 x 1080 (HD 1080), 2560 x 1440
Supported video modes1080p
Frame rate30 fps
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto
Back Light Compensation (BLC)Yes
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Smart IRYes

Audio

Signal-to-Noise Ratio (SNR)65 dB
Built-in microphoneYes

Network

Ethernet LANNo
Wi-FiNo
BluetoothNo

Storage

Built-in HDDNo

Ports & interfaces

BNC output ports1

Power

Power source typeDC
Power consumption (typical)5.6 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Width198.9 mm
Depth80.2 mm
Height76.2 mm
Weight230 g

Packaging data

Package weight370 g

Packaging content

Number of cameras1
