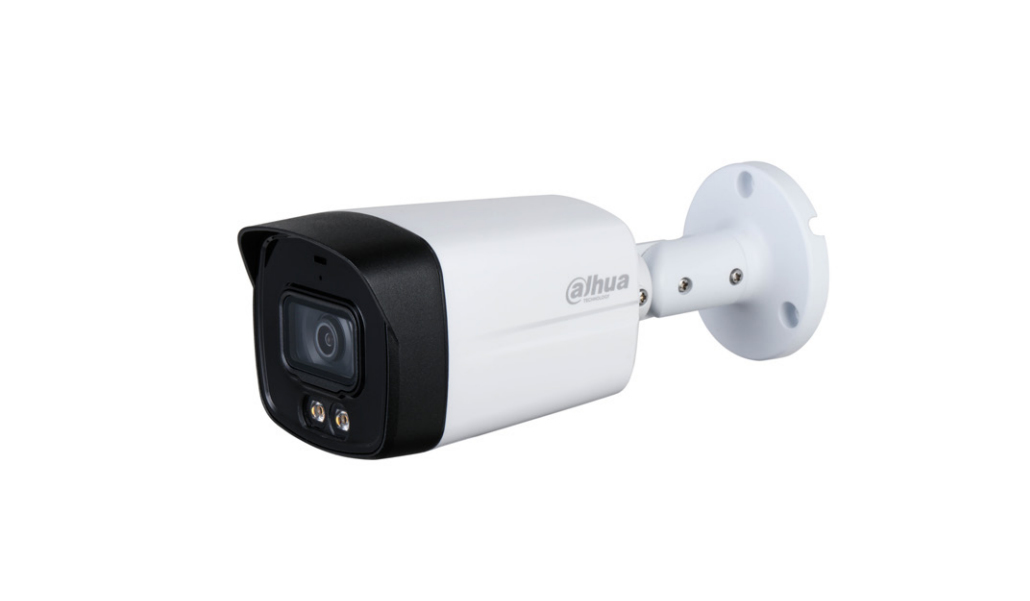

Dahua Technology Lite Plus DH-HAC-HFW1239TLMN-IL-A security camera Bullet CCTV security camera Indoor & outdoor
Dahua Technology

Lite Plus DH-HAC-HFW1239TLMN-IL-A security camera Bullet CCTV security camera Indoor & outdoor

1920 x 1080 pixels Wall/Pole

Model DH-HAC-HFW1239TLMN-IL-A

72 specifications
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight300 g
  • ColourWhite
  • Form factorBullet
  • Camera pan controlNo
See all specifications

Overview

Connectivity
Wired
Type
CCTV security camera
Weight
300 g
Colour
White
Form factor
Bullet
Camera pan control
No
Brand
Dahua Technology
Model
DH-HAC-HFW1239TLMN-IL-A
Part number
DH-HAC-HFW1239TLMN-IL-A
Also known as
Dahua Technology Lite Plus DH-HAC-HFW1239TLMN-IL-A security camera Bullet CCTV security camera Indoor & outdoor 1920 x 1080 pixels Wall/Pole

Specifications

72 specifications in 17 groups

Performance

TypeCCTV security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Dynamic range130 dB
CertificationCE (EN55032:2015, EN61000-3-2: 2014, EN61000-3- 3: 2013, EN55024:2010+A1: 2015, EN55035: 2017, EN50130-4: 2011+A1: 2014, EN62368-1: 2014+A11: 2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL62368-1+CAN/CSA C22.2 No.62368-1-14)

Design

Form factorBullet
Mounting typeWall/Pole
Product colourWhite
Housing materialMetal, Plastic
International Protection (IP) codeIP67

Camera

Camera pan controlNo
Camera tilt controlNo
Minimum illumination0 lx
Angle of rotation360°
Lens viewing angle, horizontal107°
Lens viewing angle, vertical56°
Lens viewing angle, diagonal127°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Manual
Camera shutter typeElectronic
Camera shutter speed1/30 - 1/100000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Progressive scanYes
Number of effective pixels (H x V)1920 x 1080 pixels

Lens system

Number of lenses1
Focal length range2.8 mm
Maximum aperture number1.6
Closest focusing distance0.7 m
Detect distance (wide)42.2 m
Identify distance (wide)4.2 m
Observe distance (wide)16.9 m
Recognize distance (wide)8.4 m

Night vision

Night visionYes
Night vision distance40 m
LED typeIR
Number of illumination LEDs2

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Supported graphics resolutions704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Frame rate30 fps
Analog signal format systemNTSC
Noise reductionYes
Noise reduction technology2D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Highlight Compensation (HLC)Yes
Privacy maskingYes

Audio

Built-in microphoneYes

Network

Ethernet LANNo
Wi-FiNo
BluetoothNo

Storage

Built-in HDDNo

Ports & interfaces

BNC output ports1

Security

MirrorYes

Power

Power source typeDC
Power consumption (max)4 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Width80.2 mm
Height76.2 mm
Length198.4 mm
Weight300 g

Packaging data

Package weight450 g

Packaging content

Number of cameras1
