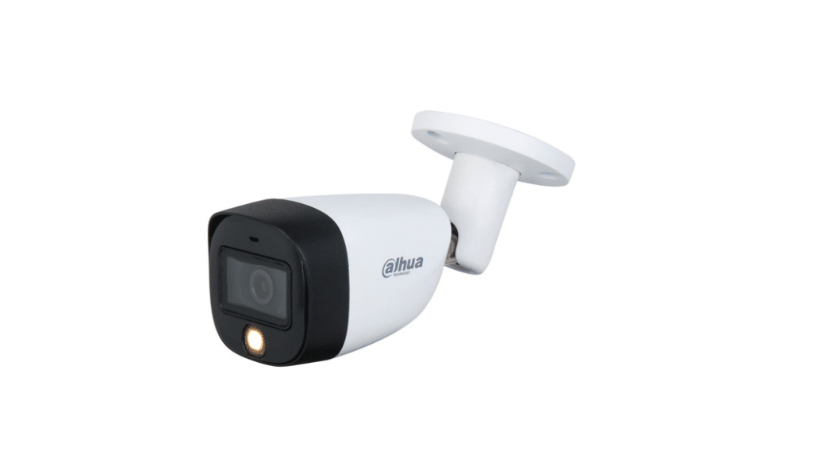

Dahua Technology Lite DH-HAC-HFW1209CMN-A-LED security camera Bullet CCTV security camera Outdoor
Dahua Technology

Lite DH-HAC-HFW1209CMN-A-LED security camera Bullet CCTV security camera Outdoor

1920 x 1080 pixels Ceiling/wall

Model DH-HAC-HFW1209CMN-A-LEDEAN 6923172538253

72 specifications
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight320 g
  • ColourWhite
  • Form factorBullet
  • Camera pan controlNo
See all specifications

Overview

Connectivity
Wired
Type
CCTV security camera
Weight
320 g
Colour
White
Form factor
Bullet
Camera pan control
No
Brand
Dahua Technology
Model
DH-HAC-HFW1209CMN-A-LED
Part number
DH-HAC-HFW1209CMN-A-LED
EAN / UPC
6923172538253, 6923172538291
Also known as
Dahua Technology Lite DH-HAC-HFW1209CMN-A-LED security camera Bullet CCTV security camera Outdoor 1920 x 1080 pixels Ceiling/wall

Specifications

72 specifications in 17 groups

Performance

TypeCCTV security camera
Placement supportedOutdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationCE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035 FCC: 47 CFR FCC Part 15, Subpart B

Design

Form factorBullet
Mounting typeCeiling/wall
Product colourWhite
Housing materialPlastic
International Protection (IP) codeIP67

Camera

Camera pan controlNo
Camera tilt controlNo
Minimum illumination0 lx
Angle of rotation360°
Lens viewing angle, horizontal108°
Lens viewing angle, vertical58°
Lens viewing angle, diagonal127°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Manual
Camera shutter typeElectronic
Camera shutter speed1/30 - 1/100000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Progressive scanYes

Lens system

Number of lenses1
Maximum aperture number1.6
Closest focusing distance0.7 m
Detect distance (wide)42.2 m
Fixed focal length2.8 mm
Identify distance (wide)4.2 m
Observe distance (wide)16.9 m
Recognize distance (wide)8.4 m

Night vision

Night visionYes
Night vision distance20 m
Number of illumination LEDs1

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Supported graphics resolutions960 x 480, 960 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Frame rate30 fps
Analog signal format systemNTSC
Noise reductionYes
Noise reduction technology2D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Privacy maskingYes

Audio

Built-in microphoneYes

Network

Ethernet LANNo
Wi-FiNo
BluetoothNo

Storage

Built-in HDDNo

Ports & interfaces

BNC output ports1

Security

MirrorYes

Power

Power source typeDC
Power consumption (max)3.3 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Width166.6 mm
Depth69.7 mm
Height70 mm
Weight320 g

Packaging data

Package width182 mm
Package depth90 mm
Package height77 mm
Package weight420 g

Packaging content

Number of cameras1
