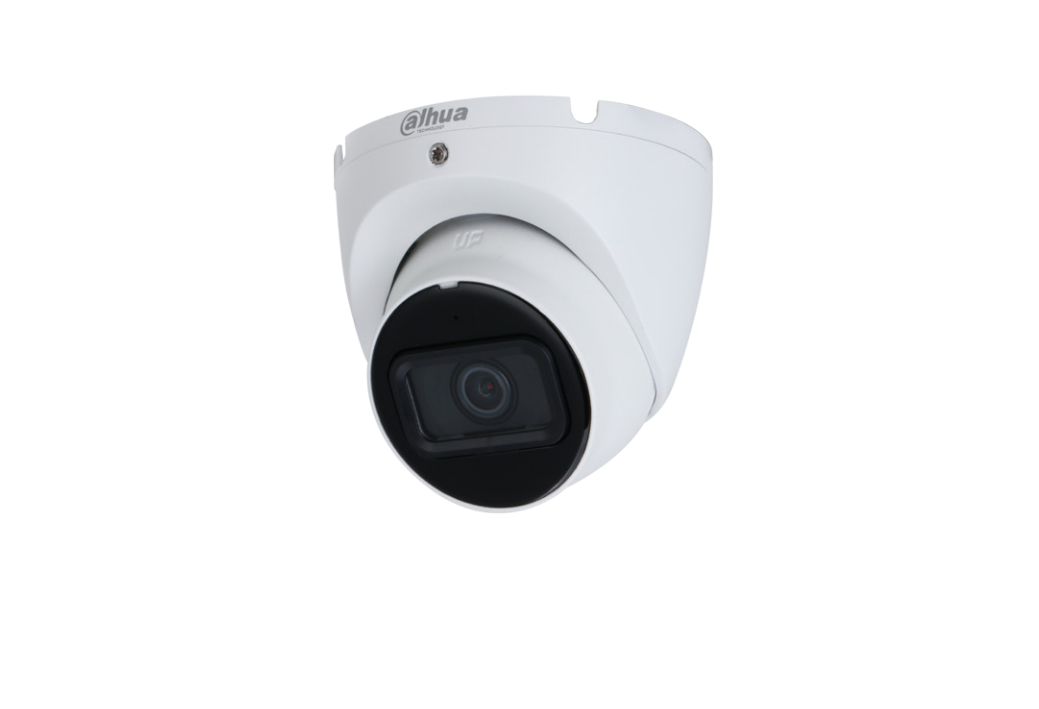

Dahua Technology Pro DH-HAC-HDW2501TLMN-A security camera Turret CCTV security camera Indoor & outdoor
Dahua Technology

Pro DH-HAC-HDW2501TLMN-A security camera Turret CCTV security camera Indoor & outdoor

2880 x 1620 pixels Ceiling/Wall/Pole

Model DH-HAC-HDW2501TLMN-A

71 specifications
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight330 g
  • ColourWhite
  • Form factorTurret
  • Camera pan controlNo
See all specifications

Overview

Connectivity
Wired
Type
CCTV security camera
Weight
330 g
Colour
White
Form factor
Turret
Camera pan control
No
Brand
Dahua Technology
Model
DH-HAC-HDW2501TLMN-A
Part number
DH-HAC-HDW2501TLMN-A
Also known as
Dahua Technology Pro DH-HAC-HDW2501TLMN-A security camera Turret CCTV security camera Indoor & outdoor 2880 x 1620 pixels Ceiling/Wall/Pole

Specifications

71 specifications in 17 groups

Performance

TypeCCTV security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Dynamic range120 dB
CertificationCE (EN55032, EN55024, EN50130-4, EN62368-1) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Design

Form factorTurret
Mounting typeCeiling/Wall/Pole
Product colourWhite
International Protection (IP) codeIP67

Camera

Camera pan controlNo
Camera tilt controlNo
Minimum illumination0 lx
Angle of rotation360°
Lens viewing angle, horizontal111°
Lens viewing angle, vertical58°
Lens viewing angle, diagonal132°
Tilt angle range0 - 78°
Pan range0 - 360°
Camera shutter typeElectronic
Camera shutter speed1/4 – 1/100000

Image sensor

Sensor typeCMOS
Progressive scanYes

Lens system

Number of lenses1
Zoom capabilityYes
Digital zoom4x
Maximum aperture number1.6
Closest focusing distance0.9 m
Detect distance (wide)63.6 m
Fixed focal length2.8 mm
Identify distance (wide)6.4 m
Observe distance (wide)25.4 m
Recognize distance (wide)12.7 m

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs1

Video

Maximum resolution2880 x 1620 pixels
Total megapixels5 MP
Supported graphics resolutions1280 x 720 (HD 720), 2560 x 1440, 960 x 480, 960 x 576, 1920 x 1080 (HD 1080), 2880 x 1620
Supported video modes1620p, 480p, 1440p, 576p, 1080p
Frame rate30 fps
Analog signal format systemNTSC
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Smart IRYes

Audio

Signal-to-Noise Ratio (SNR)65 dB
Built-in microphoneYes

Network

Ethernet LANNo
Wi-FiNo
BluetoothNo

Storage

Built-in HDDNo

Ports & interfaces

BNC output ports1

Security

MirrorYes

Power

Power source typeDC
Power consumption (max)4.3 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Height85.7 mm
Diameter9.4 cm
Weight330 g

Packaging data

Package weight470 g

Packaging content

Number of cameras1
