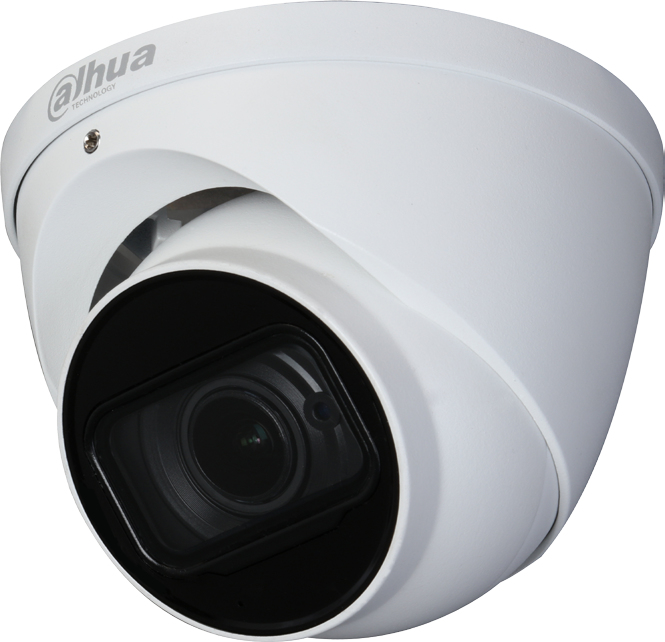

Dahua Technology Pro DH-HAC-HDW2501T-Z-A Dome CCTV security camera Outdoor
Dahua Technology

Pro DH-HAC-HDW2501T-Z-A Dome CCTV security camera Outdoor

2592 x 1944 pixels Ceiling/wall

Model DH-HAC-HDW2501T-Z-APart no. HAC-HDW2501T-Z-A

70 specifications
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight600 g
  • ColourWhite
  • Form factorDome
  • Camera pan controlYes
See all specifications

Overview

Connectivity
Wired
Type
CCTV security camera
Weight
600 g
Colour
White
Form factor
Dome
Camera pan control
Yes
Brand
Dahua Technology
Model
DH-HAC-HDW2501T-Z-A
Part number
HAC-HDW2501T-Z-A
Also known as
Dahua Technology Pro DH-HAC-HDW2501T-Z-A Dome CCTV security camera Outdoor 2592 x 1944 pixels Ceiling/wall

Specifications

70 specifications in 16 groups

Performance

TypeCCTV security camera
Placement supportedOutdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
CertificationCE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC 15 B, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Design

Form factorDome
Mounting typeCeiling/wall
Product colourWhite
Housing materialAluminium
International Protection (IP) codeIP67

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0 lx
Angle of rotation360°
Lens viewing angle, horizontal102°
Tilt angle range0 - 78°
Pan range0 - 360°
White balanceAuto, Manual
Camera shutter typeElectronic
Camera shutter speed1/4 - 1/100000, 1/3 - 1/100000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes
Number of effective pixels (H x V)2592 x 1944 pixels

Lens system

Number of lenses1
Focal length range2.7 - 13.5 mm
FocusMotorized/Manual
Maximum aperture number1.3
Closest focusing distance0.2 m
Detect distance (tele)222 m
Detect distance (wide)64 m
Identify distance (tele)22 m
Identify distance (wide)6 m
Observe distance (tele)89 m
Observe distance (wide)26 m
Recognize distance (tele)44 m
Recognize distance (wide)13 m

Night vision

Night visionYes
Night vision distance60 m
LED typeIR
Number of illumination LEDs2

Video

Maximum resolution2592 x 1944 pixels
Total megapixels5 MP
Frame rate30 fps
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto
Back Light Compensation (BLC)Yes
Highlight Compensation (HLC)Yes

Audio

Built-in microphoneYes

Network

Ethernet LANNo
Wi-FiNo
BluetoothNo

Storage

Built-in HDDNo

Ports & interfaces

BNC output ports1

Power

Power source typeDC
Power consumption (max)10 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)0 - 90%

Weight & dimensions

Height107 mm
Diameter12.2 cm
Weight600 g

Packaging data

Package weight800 g

Packaging content

Number of cameras1
