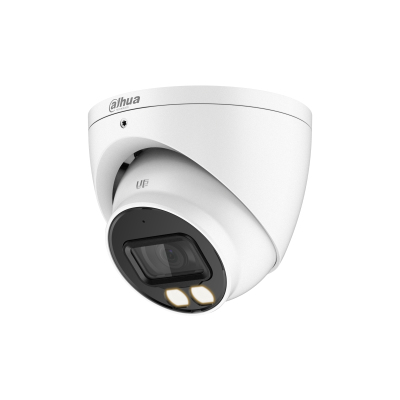

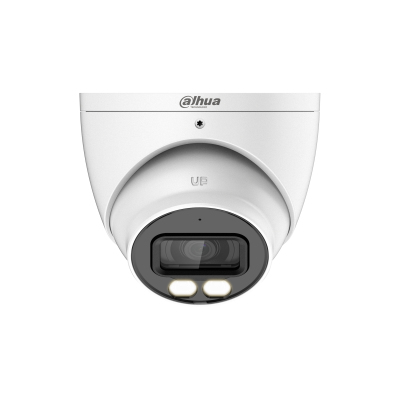

Dahua Technology Lite DH-HAC-HDW1509TP-IL-A security camera Spherical CCTV security camera Outdoor
Dahua Technology

Lite DH-HAC-HDW1509TP-IL-A security camera Spherical CCTV security camera Outdoor

2880 x 1620 pixels Ceiling

Model DH-HAC-HDW1509TP-IL-AEAN 6923172540553

80 specifications
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight490 g
  • ColourBlack, White
  • Form factorSpherical
  • Camera pan controlYes
See all specifications

Overview

Connectivity
Wired
Type
CCTV security camera
Weight
490 g
Colour
Black, White
Form factor
Spherical
Camera pan control
Yes
Brand
Dahua Technology
Model
DH-HAC-HDW1509TP-IL-A
Part number
DH-HAC-HDW1509TP-IL-A
EAN / UPC
6923172540553
Also known as
Dahua Technology Lite DH-HAC-HDW1509TP-IL-A security camera Spherical CCTV security camera Outdoor 2880 x 1620 pixels Ceiling

Specifications

80 specifications in 17 groups

Performance

TypeCCTV security camera
Placement supportedOutdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Remote viewingYes
Built-in lightYes
Dynamic range120 dB
CertificationCE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN62368-1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL62368-1+CAN/CSA C22.2 No.62368-1-14)

Design

Form factorSpherical
Mounting typeCeiling
Product colourBlack, White
Housing materialMetal
International Protection (IP) codeIP67

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.0001 lx
Field of view (FOV) angle131°
Angle of rotation360°
Lens viewing angle, horizontal111°
Lens viewing angle, vertical57°
Lens viewing angle, diagonal131°
Tilt angle range0 - 78°
Pan range0 - 360°
White balanceAWC, Auto
Camera shutter typeElectronic
Camera shutter speed1/3 s–1/100000 s

Image sensor

Sensor typeCMOS
Progressive scanYes

Lens system

Number of lenses1
Zoom capabilityYes
Digital zoom4x
Detect distance78 m
Observe distance31.2 m
Recognize distance15.6 m
Identify distance7.8 m
Maximum aperture number1
Fixed focal length3.6 mm

Night vision

Night visionYes
LED typeIR
Number of illumination LEDs2

Video

Maximum resolution2880 x 1620 pixels
Total megapixels5 MP
Supported graphics resolutions960 x 480, 960 x 576, 1920 x 1080 (HD 1080), 2560 x 1440, 2880 x 1620
Supported video modes1080p
Video recordingYes
Frame rate30 fps
Analog signal format systemNTSC, PAL
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Smart IRYes

Audio

Audio input channels1.0 channels
Signal-to-Noise Ratio (SNR)65 dB
Built-in microphoneYes

Network

Ethernet LANNo
Wi-FiNo
BluetoothNo

Storage

Built-in HDDNo

Ports & interfaces

BNC output ports1

Security

Fire detectionYes
MirrorYes

Power

Power source typeDC
AC input voltage12 V
Power consumption (max)5.7 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

Weight & dimensions

Height93.6 mm
Diameter10.6 cm
Weight490 g

Packaging data

Package width148 mm
Package depth139 mm
Package height137 mm
Package weight660 g

Packaging content

Number of cameras1
