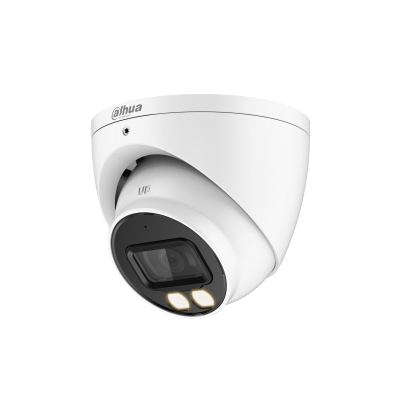

Lite DH-HAC-HDW1509TN-A-LED-0360B security camera Turret CCTV security camera Indoor & outdoor
2880 x 1620 pixels Ceiling/Wall/Pole
Model DH-HAC-HDW1509TN-A-LED-0360B
59 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight480 g
- ColourWhite
- Form factorTurret
- Camera pan controlYes
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 480 g
- Colour
- White
- Form factor
- Turret
- Camera pan control
- Yes
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-HAC-HDW1509TN-A-LED-0360B
- Part number
- DH-HAC-HDW1509TN-A-LED-0360B
- Also known as
- Dahua Technology Lite DH-HAC-HDW1509TN-A-LED-0360B security camera Turret CCTV security camera Indoor & outdoor 2880 x 1620 pixels Ceiling/Wall/Pole
Specifications
59 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Certification | CE (EN55032, EN55024, EN50130-4,EN60950-1) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
Design
| Specification | Value |
|---|---|
| Form factor | Turret |
| Mounting type | Ceiling/Wall/Pole |
| Product colour | White |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.001 lx |
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 112° |
| Lens viewing angle, vertical | 57° |
| Lens viewing angle, diagonal | 132° |
| Tilt angle range | 0 - 78° |
| Pan range | 0 - 360° |
| White balance | Auto |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/3 - 1/100000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Detect distance | 80 m |
| Observe distance | 32 m |
| Recognize distance | 16 m |
| Focal length range | 2.8 - 3.6 mm |
| Identify distance | 8 m |
| Maximum aperture number | 1 |
| Closest focusing distance | 1.6 m |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 40 m |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2880 x 1620 pixels |
| Total megapixels | 5 MP |
| Supported graphics resolutions | 960 x 480, 960 x 576, 1920 x 1080 (HD 1080), 2560 x 1440, 2880 x 1620 |
| Frame rate | 30 fps |
| Analog signal format system | NTSC, PAL |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Privacy masking | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 65 dB |
| Built-in microphone | Yes |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
Security
| Specification | Value |
|---|---|
| Mirror | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 6.4 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 93.6 mm |
| Height | 106 mm |
| Weight | 480 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 670 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
