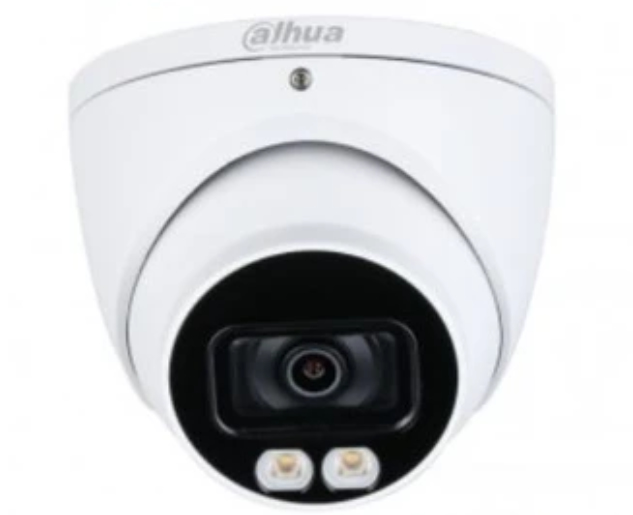

Dahua Technology Lite DH-HAC-HDW1239TN-A-LED-0360B security camera Dome CCTV security camera Indoor & outdoor
Dahua Technology

Lite DH-HAC-HDW1239TN-A-LED-0360B security camera Dome CCTV security camera Indoor & outdoor

1920 x 1080 pixels Ceiling/wall

Model DH-HAC-HDW1239TN-A-LED-0360BEAN 6923172506269

76 specifications
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight460 g
  • ColourWhite
  • Form factorDome
  • Camera pan controlYes
See all specifications

Overview

Connectivity
Wired
Type
CCTV security camera
Weight
460 g
Colour
White
Form factor
Dome
Camera pan control
Yes
Brand
Dahua Technology
Model
DH-HAC-HDW1239TN-A-LED-0360B
Part number
DH-HAC-HDW1239TN-A-LED-0360B
EAN / UPC
6923172506269
Also known as
Dahua Technology Lite DH-HAC-HDW1239TN-A-LED-0360B security camera Dome CCTV security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall

Specifications

76 specifications in 18 groups

Performance

TypeCCTV security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ modesDigital PTZ
Wide Dynamic Range (WDR)Yes
CertificationEN55032, EN55024, EN50130-4,EN60950-1 FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Design

Form factorDome
Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal
Protection featuresDust resistant, Water resistant
International Protection (IP) codeIP67
Fog proofYes

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0 lx
Lens viewing angle, horizontal86.9°
Lens viewing angle, vertical46.3°
Lens viewing angle, diagonal103.6°
Tilt angle range0 - 78°
Pan range0 - 360°
White balanceAuto, Manual
Camera shutter typeElectronic
Camera shutter speed1/30 - 1/100000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Number of effective pixels (H x V)1920 x 1080 pixels

Lens system

Number of lenses1
Digital zoom16x
Detect distance55.2 m
Observe distance22.1 m
Recognize distance11 m
Fixed focusYes
Maximum aperture number1.6
Closest focusing distance1.2 m
Fixed focal length3.6 mm

Night vision

Night visionYes
Night vision distance40 m
LED typeIR
Number of illumination LEDs2

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2.16 MP
Supported video modes720p, 1080p
Frame rate30 fps
Analog signal format systemNTSC
NTSC resolutions1920 x 1080 pixels
Noise reductionYes
Noise reduction technology2D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Smart IRYes

Audio

Built-in microphoneYes

Network

Ethernet LANNo
Wi-FiNo
BluetoothNo

Storage

Built-in HDDNo

Ports & interfaces

BNC output ports1

Security

MirrorYes

Power

Power source typeDC
Power consumption (max)4.2 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Height93.6 mm
Diameter10.6 cm
Weight460 g

Sustainability

Compliance certificatesCE
Sustainability complianceYes

Packaging data

Package weight610 g

Packaging content

Number of cameras1
