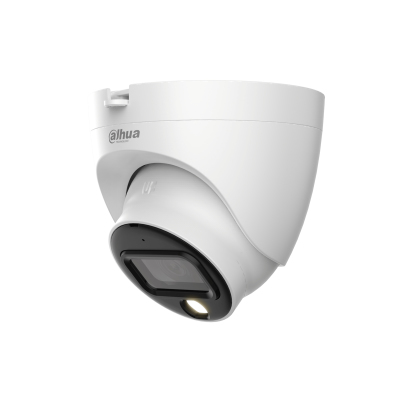

Dahua Technology Lite DH-HAC-HDW1239TLQN-A-LED Turret CCTV security camera Outdoor
Dahua Technology

Lite DH-HAC-HDW1239TLQN-A-LED Turret CCTV security camera Outdoor

1920 x 1080 pixels Ceiling/Wall/Pole

Model DH-HAC-HDW1239TLQN-A-LEDPart no. HAC-HDW1239TLQN-A-LED-0360BEAN 6923172506320

70 specifications
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight220 g
  • ColourWhite
  • Form factorTurret
  • Minimum illumination0.001 lx
See all specifications

Overview

Connectivity
Wired
Type
CCTV security camera
Weight
220 g
Colour
White
Form factor
Turret
Minimum illumination
0.001 lx
Brand
Dahua Technology
Model
DH-HAC-HDW1239TLQN-A-LED
Part number
HAC-HDW1239TLQN-A-LED-0360B
EAN / UPC
6923172506320
Also known as
Dahua Technology Lite DH-HAC-HDW1239TLQN-A-LED Turret CCTV security camera Outdoor 1920 x 1080 pixels Ceiling/Wall/Pole

Specifications

70 specifications in 17 groups

Performance

TypeCCTV security camera
Placement supportedOutdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
Dynamic range130 dB
CertificationCE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Design

Form factorTurret
Mounting typeCeiling/Wall/Pole
Product colourWhite
Housing materialMetal, Plastic
International Protection (IP) codeIP67

Camera

Minimum illumination0.001 lx
Angle of rotation360°
Lens viewing angle, horizontal86°
Lens viewing angle, vertical46°
Lens viewing angle, diagonal101°
Tilt angle range0 - 78°
Pan range0 - 360°
White balanceAuto
Camera shutter typeElectronic
Camera shutter speed1/30 – 1/100000

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Lens system

Number of lenses1
Detect distance53.7 m
Observe distance21.5 m
Recognize distance10.7 m
Identify distance5.4 m
Maximum aperture number1.6
Closest focusing distance1.1 m
Fixed focal length3.6 mm

Night vision

Night visionYes
Night vision distance20 m
LED typeIR
Number of illumination LEDs1

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Supported graphics resolutions960 x 480, 960 x 576, 1920 x 1080 (HD 1080)
Supported video modes1080p
Frame rate30 fps
Analog signal format systemNTSC
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Highlight Compensation (HLC)Yes
Privacy maskingYes

Audio

Signal-to-Noise Ratio (SNR)65 dB
Built-in microphoneYes

Network

Ethernet LANNo
Wi-FiNo
BluetoothNo

Storage

Built-in HDDNo

Ports & interfaces

BNC output ports1

Security

MirrorYes

Power

Power source typeDC
Power consumption (max)3.3 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Height92.9 mm
Diameter9.71 cm
Weight220 g

Packaging data

Package weight280 g

Packaging content

Number of cameras1
