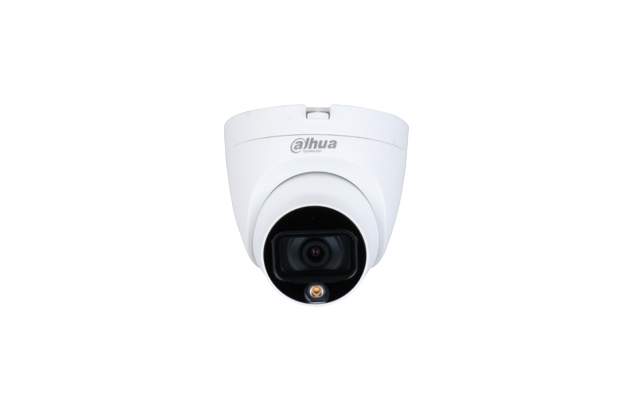

Lite DH-HAC-HDW1209TLQN-LED security camera Dome IP security camera Outdoor
1920 x 1080 pixels Wall
Model DH-HAC-HDW1209TLQN-LED
70 specifications
- ConnectivityWired
- TypeIP security camera
- Weight210 g
- ColourWhite
- Form factorDome
- Minimum illumination0.01 lx
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 210 g
- Colour
- White
- Form factor
- Dome
- Minimum illumination
- 0.01 lx
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-HAC-HDW1209TLQN-LED
- Part number
- DH-HAC-HDW1209TLQN-LED
- Also known as
- Dahua Technology Lite DH-HAC-HDW1209TLQN-LED security camera Dome IP security camera Outdoor 1920 x 1080 pixels Wall
Specifications
70 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Certification | CE (EN55032, EN55024, EN50130-4,EN60950-1) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Wall |
| Product colour | White |
| Housing material | Metal, Plastic |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.01 lx |
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 106° |
| Lens viewing angle, vertical | 56.5° |
| Lens viewing angle, diagonal | 126.2° |
| Tilt angle range | 0 - 78° |
| Pan range | 0 - 360° |
| White balance | Auto, Manual |
| Camera shutter type | Electronic |
| Number of Privacy masking areas | 8 |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Yes |
| Number of effective pixels (H x V) | 1920 x 1080 pixels |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Detect distance | 43.9 m |
| Observe distance | 17.5 m |
| Recognize distance | 8.8 m |
| Identify distance | 4.4 m |
| Maximum aperture number | 1.6 |
| Closest focusing distance | 0.7 m |
| Fixed focal length | 2.8 mm |
| Detect distance (2.8mm lens) | 43.9 m |
| Observe distance (2.8mm lens) | 17.5 m |
| Recognize distance (2.8mm lens) | 8.8 m |
| Identify distance (2.8mm lens) | 4.4 m |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 20 m |
| LED type | IR |
| Number of illumination LEDs | 1 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Supported video modes | 720p, 1080p |
| Frame rate | 30 fps |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Privacy masking | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
| Microphone in | Yes |
Security
| Specification | Value |
|---|---|
| Mirror | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 3.1 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | 0 - 95 °C |
| Operating relative humidity (H-H) | -40 - 60% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 91.4 mm |
| Diameter | 9.71 cm |
| Weight | 210 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 280 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
Technical details
| Specification | Value |
|---|---|
| Iris | Yes |
