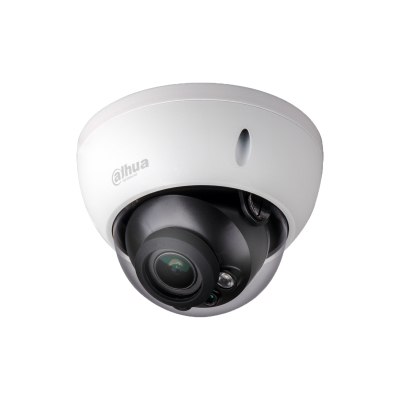

Dahua Technology Pro DH-HAC-HDBW2802R-Z Dome CCTV security camera Outdoor
Dahua Technology

Pro DH-HAC-HDBW2802R-Z Dome CCTV security camera Outdoor

3840 x 2160 pixels Ceiling/wall

Model DH-HAC-HDBW2802R-ZPart no. HAC-HDBW2802R-Z

71 specifications
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight470 g
  • ColourWhite
  • Form factorDome
  • Camera pan controlYes
See all specifications

Overview

Connectivity
Wired
Type
CCTV security camera
Weight
470 g
Colour
White
Form factor
Dome
Camera pan control
Yes
Brand
Dahua Technology
Model
DH-HAC-HDBW2802R-Z
Part number
HAC-HDBW2802R-Z
Also known as
Dahua Technology Pro DH-HAC-HDBW2802R-Z Dome CCTV security camera Outdoor 3840 x 2160 pixels Ceiling/wall

Specifications

71 specifications in 15 groups

Performance

TypeCCTV security camera
Placement supportedOutdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
CertificationCE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC 15 B, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Design

Form factorDome
Mounting typeCeiling/wall
Product colourWhite
Housing materialAluminium
International Protection (IP) codeIP67
IK codeIK10

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0 lx
Angle of rotation355°
Lens viewing angle, horizontal112°
Tilt angle range0 - 75°
Pan range0 - 355°
White balanceAuto, Manual
Camera shutter typeElectronic
Camera shutter speed1/4 - 1/100000, 1/3 - 1/100000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2 mm (1 / 2")
Progressive scanYes
Number of effective pixels (H x V)3840 x 2160 pixels

Lens system

Number of lenses1
Focal length range3.7 - 11 mm
FocusMotorized/Manual
Maximum aperture number1.5
Closest focusing distance0.2 m
Detect distance (tele)190 m
Detect distance (wide)83 m
Identify distance (tele)19 m
Identify distance (wide)8 m
Observe distance (tele)76 m
Observe distance (wide)33 m
Recognize distance (tele)38 m
Recognize distance (wide)17 m

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs2

Video

Maximum resolution3840 x 2160 pixels
Total megapixels8 MP
Frame rate30 fps
Analog signal format systemNTSC, PAL
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto
Back Light Compensation (BLC)Yes
Highlight Compensation (HLC)Yes

Network

Ethernet LANNo
Wi-FiNo
BluetoothNo

Storage

Built-in HDDNo

Ports & interfaces

BNC output ports1

Power

Power source typeDC
Power consumption (max)7 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)0 - 90%

Weight & dimensions

Height88.9 mm
Diameter12.2 cm
Weight470 g

Packaging data

Package weight650 g

Packaging content

Number of cameras1
