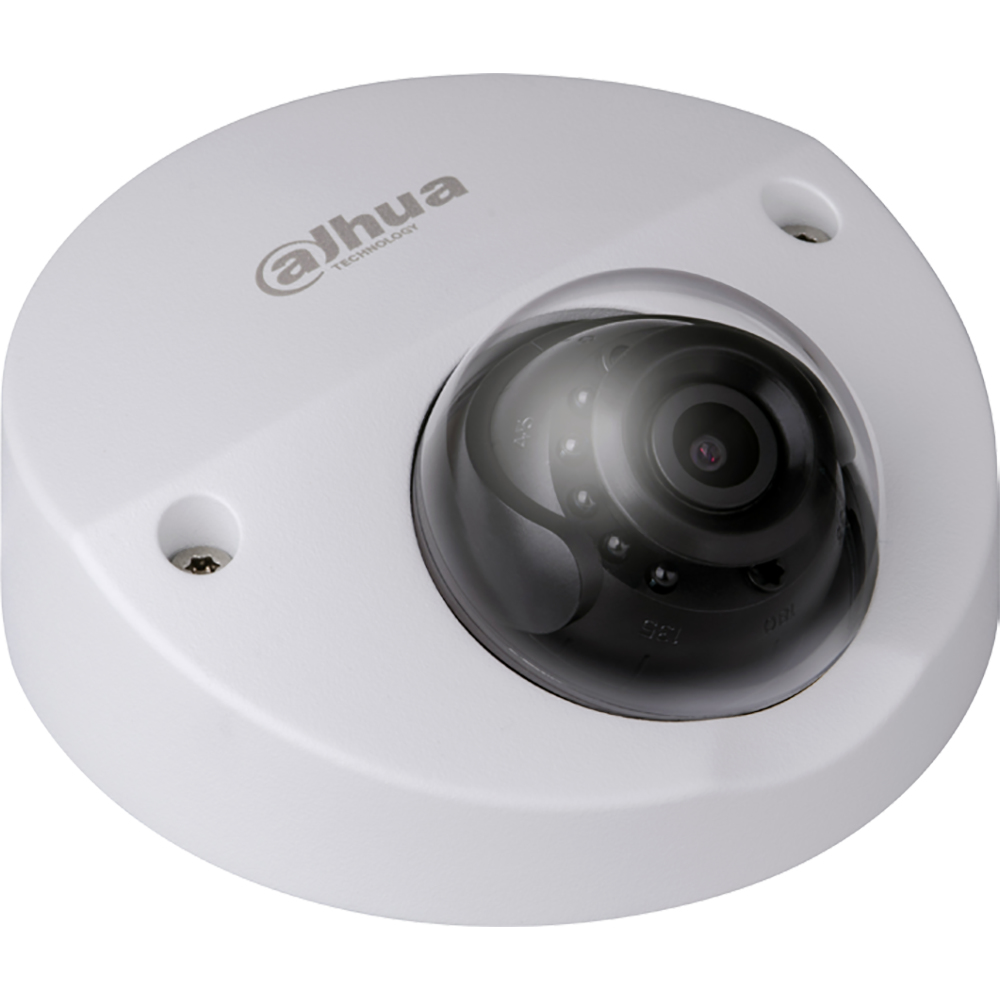

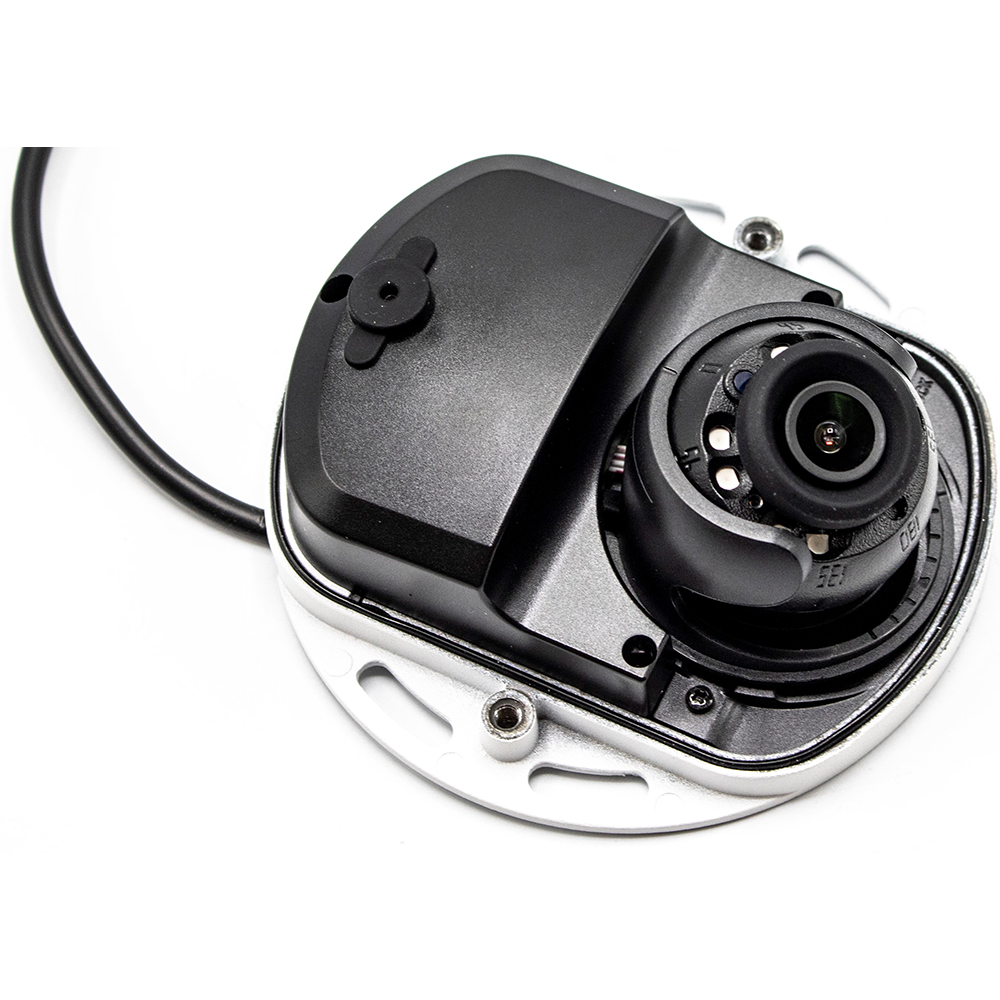

Pro DH-HAC-HDBW2241FN-A-0280B-S2-DIP security camera Dome CCTV security camera Indoor & outdoor
1920 x 1080 pixels Ceiling
Model DH-HAC-HDBW2241FN-A-0280B-S2-DIP
57 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight310 g
- ColourWhite
- Form factorDome
- Angle of rotation360°
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 310 g
- Colour
- White
- Form factor
- Dome
- Angle of rotation
- 360°
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-HAC-HDBW2241FN-A-0280B-S2-DIP
- Part number
- DH-HAC-HDBW2241FN-A-0280B-S2-DIP
- Also known as
- Dahua Technology Pro DH-HAC-HDBW2241FN-A-0280B-S2-DIP security camera Dome CCTV security camera Indoor & outdoor 1920 x 1080 pixels Ceiling
Specifications
57 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | White |
| Housing material | Aluminium |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
Camera
| Specification | Value |
|---|---|
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 109° |
| Lens viewing angle, vertical | 58° |
| Lens viewing angle, diagonal | 127° |
| Tilt angle range | 0 - 80° |
| Pan range | 0 - 60° |
| White balance | Auto, Manual |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/30 - 1/100000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
Lens system
| Specification | Value |
|---|---|
| Detect distance | 42.2 m |
| Observe distance | 16.9 m |
| Recognize distance | 8.4 m |
| Identify distance | 4.2 m |
| Maximum aperture number | 1.6 |
| Fixed focal length | 2.8 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 8 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Supported video modes | 1080p |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 65 dB |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 2.7 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 50.3 mm |
| Diameter | 10.6 cm |
| Weight | 310 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 450 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
