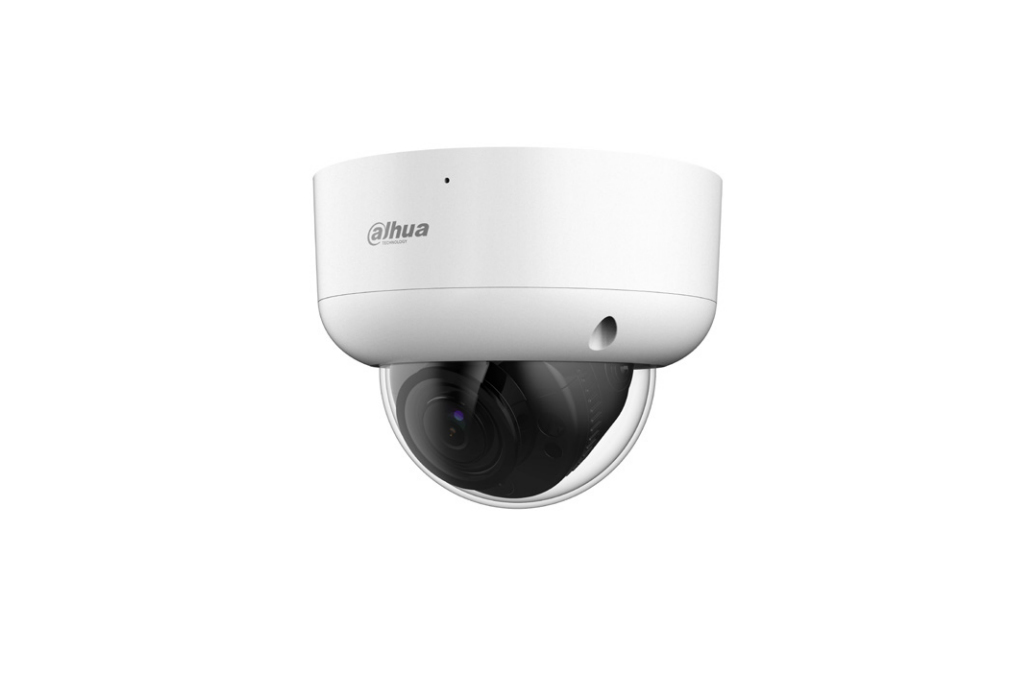

Dahua Technology Lite DH-HAC-HDBW1801RAN-Z-A security camera Dome CCTV security camera Outdoor
Dahua Technology

Lite DH-HAC-HDBW1801RAN-Z-A security camera Dome CCTV security camera Outdoor

3840 x 2160 pixels Ceiling/wall

Model DH-HAC-HDBW1801RAN-Z-A

75 specifications
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight640 g
  • ColourWhite
  • Form factorDome
  • Minimum illumination0 lx
See all specifications

Overview

Connectivity
Wired
Type
CCTV security camera
Weight
640 g
Colour
White
Form factor
Dome
Minimum illumination
0 lx
Brand
Dahua Technology
Model
DH-HAC-HDBW1801RAN-Z-A
Part number
DH-HAC-HDBW1801RAN-Z-A
Also known as
Dahua Technology Lite DH-HAC-HDBW1801RAN-Z-A security camera Dome CCTV security camera Outdoor 3840 x 2160 pixels Ceiling/wall

Specifications

75 specifications in 17 groups

Performance

TypeCCTV security camera
Placement supportedOutdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Dynamic range120 dB
CertificationCE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035; FCC: 47 CFR FCC Part 15, Subpart B; UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14

Design

Form factorDome
Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67
IK codeIK10

Camera

Minimum illumination0 lx
Angle of rotation355°
Lens viewing angle, horizontal114 - 32°
Lens viewing angle, vertical58 - 17°
Lens viewing angle, diagonal138 - 36°
Tilt angle range0 - 80°
Pan range0 - 355°
White balanceAuto, Manual
Camera shutter typeElectronic
Camera shutter speed1/30 - 1/100000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Number of effective pixels (H x V)3840 x 2160 pixels

Lens system

Number of lenses1
Zoom capabilityYes
Digital zoom4x
Focal length range2.7 - 13.5 mm
Maximum aperture number1.5
Closest focusing distance0.8 m
Detect distance (tele)280 m
Detect distance (wide)85.3 m
Identify distance (tele)28 m
Identify distance (wide)8.5 m
Observe distance (tele)112 m
Observe distance (wide)34.1 m
Recognize distance (tele)56 m
Recognize distance (wide)17.1 m

Night vision

Night visionYes
Night vision distance60 m
LED typeIR
Number of illumination LEDs3

Video

Maximum resolution3840 x 2160 pixels
Total megapixels4 MP
Supported graphics resolutions960 x 480, 960 x 576, 2560 x 1440, 2592 x 1944, 3840 x 2160
Frame rate30 fps
Analog signal format systemNTSC
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto
Back Light Compensation (BLC)Yes
Highlight Compensation (HLC)Yes
Privacy maskingYes

Audio

Built-in microphoneYes

Network

Ethernet LANNo
Wi-FiNo
BluetoothNo

Storage

Built-in HDDNo

Ports & interfaces

BNC output ports1

Security

MirrorYes

Power

Power source typeDC
Power consumption (max)7.92 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Height100 mm
Diameter12.6 cm
Weight640 g

Packaging data

Package weight840 g

Packaging content

Number of cameras1
