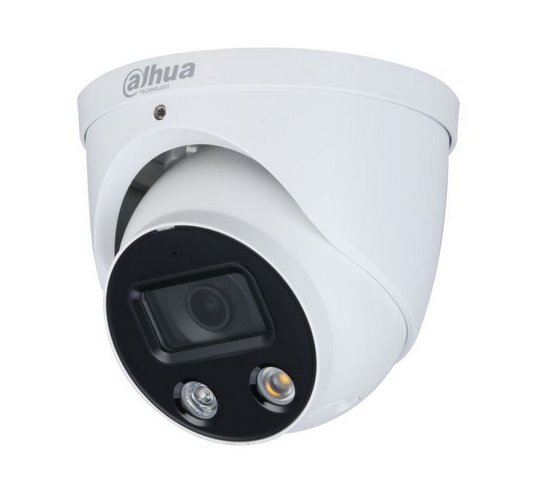

Dahua Technology Lite DE-DH-IPC-HDW3549HP-AS-PV-0280 security camera Dome IP security camera Indoor & outdoor

Dahua Technology Lite DE-DH-IPC-HDW3549HP-AS-PV-0280 security camera Dome IP security camera Indoor & outdoor

2592 x 1944 pixels Ceiling

Model DE-DH-IPC-HDW3549HP-AS-PV-0280

91 specifications
  • Memory512 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight754 g
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
512 MB
Connectivity
Wired
Type
IP security camera
Weight
754 g
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
DE-DH-IPC-HDW3549HP-AS-PV-0280
Part number
DE-DH-IPC-HDW3549HP-AS-PV-0280
Also known as
Dahua Technology Lite DE-DH-IPC-HDW3549HP-AS-PV-0280 security camera Dome IP security camera Indoor & outdoor 2592 x 1944 pixels Ceiling

Specifications

91 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Dynamic range120 dB
CertificationCE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67

Camera

Minimum illumination0.003 lx
Angle of rotation360°
Lens viewing angle, horizontal103°
Lens viewing angle, vertical53°
Lens viewing angle, diagonal122°
Tilt angle range0 - 78°
Pan range0 - 360°
White balanceAuto, Manual, Natural, Outdoor, Street lamp
Camera shutter typeElectronic, Mechanical
Camera shutter speed1/3 s–1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes

Lens system

Detect distance67.4 m
Observe distance27 m
Recognize distance13.5 m
Focal length range2.8 mm
Identify distance6.7 m
Maximum aperture number1

Night vision

Night visionYes
Night vision distance30 m
Number of illumination LEDs1

Video

Maximum resolution2592 x 1944 pixels
Total megapixels5 MP
Video formats supportedH.264, H.264+, H.265, H.265+
Supported graphics resolutions2592 x 1944
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.264: 32 kbps–8192 kbps, H.265: 12 kbps–8192 kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Audio formats supportedG.711, G.726
Signal-to-Noise Ratio (SNR)56 dB
Bit rate range12 - 8192 Kbit/s

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Number of users20 user(s)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory512 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Alarm input channels1
Alarm output channels1
Intelligent Video Surveillance (IVS) system featuresHuman detection
MirrorYes
Security algorithmsHTTPS, WPA-SDK
Video motion detectionYes

Management features

Web browserYes
Management softwarePSS; DSS; DMSS

Power

Power source typeDC, PoE
Power consumption (typical)2.5 W
Power consumption (max)7.3 W
Power consumption (Power over Ethernet (PoE))3 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height122 mm
Diameter11.1 cm
Weight754 g

Packaging data

Package weight915 g

Packaging content

Number of cameras1
