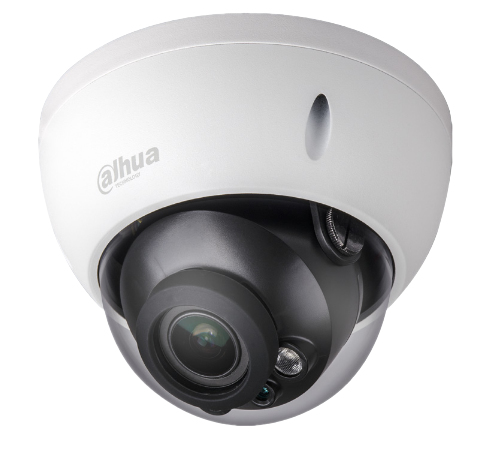

Dahua Technology Lite DE-DH-IPC-HDBW5631RP-ZE-27135 security camera Dome IP security camera Indoor & outdoor
Dahua Technology

Lite DE-DH-IPC-HDBW5631RP-ZE-27135 security camera Dome IP security camera Indoor & outdoor

3072 x 2048 pixels Ceiling

Model DE-DH-IPC-HDBW5631RP-ZE-27135

94 specifications
  • Memory512 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight500 g
  • ColourBlack, White
  • Form factorDome
See all specifications

Overview

Memory
512 MB
Connectivity
Wired
Type
IP security camera
Weight
500 g
Colour
Black, White
Form factor
Dome
Brand
Dahua Technology
Model
DE-DH-IPC-HDBW5631RP-ZE-27135
Part number
DE-DH-IPC-HDBW5631RP-ZE-27135
Also known as
Dahua Technology Lite DE-DH-IPC-HDBW5631RP-ZE-27135 security camera Dome IP security camera Indoor & outdoor 3072 x 2048 pixels Ceiling

Specifications

94 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
Alarm input/outputYes
CertificationCE (EN 60950:2000) UL:UL60950-1 FCC: Part 15 B

Design

Form factorDome
Mounting typeCeiling
Product colourBlack, White
Housing materialMetal
International Protection (IP) codeIP67
IK codeIK10

Camera

Camera pan controlYes
Camera tilt controlYes
Lens viewing angle, vertical91°
Lens viewing angle, diagonal58°
Tilt angle range0 - 75°
Pan range0 - 355°
White balanceAuto, Manual, Natural, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/3~1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.9 mm (1 / 2.9")
Progressive scanYes

Lens system

Number of lenses1
Zoom capabilityYes
Optical zoom5x
Digital zoom16x
Detect distance256 m
Observe distance102 m
Recognize distance51 m
Focal length range2.7 - 13.5 mm
FocusMotorized
Identify distance25 m
Maximum aperture number1.4
Closest focusing distance0.3 m

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs2

Video

Maximum resolution3072 x 2048 pixels
Total megapixels6 MP
Video compression formatsH.264, H.264+, H.265, H.265+
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2304 x 1296, 2592 x 1520, 2592 x 1944, 3072 x 1728, 3072 x 2048
Supported video modes720p, 1080p
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Audio formats supportedAAC
Voice codecsG.711Mu, G.711a, G.726

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.1x, IEEE 802.3af
Supported network protocolsHTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast, Unicast

Storage

Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Internal memory512 MB
ROM capacity32 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Intelligent Video Surveillance (IVS) system featuresAbandoned object, Face detection, Intrusion, Missing object, Tripwire
Video motion detectionYes

Management features

Web-based managementYes

Power

Power source typeDC, PoC
Power consumption (max)8.5 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height88.9 mm
Diameter12.2 cm
Weight500 g

Packaging data

Package weight580 g

Packaging content

Number of cameras1
