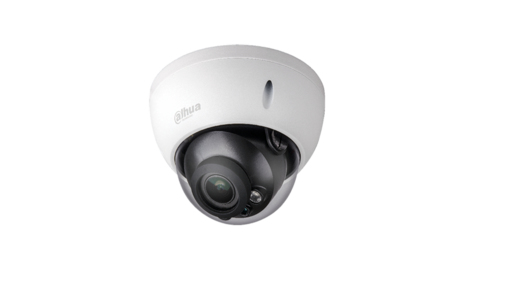

Dahua Technology Lite DE-DH-IPC-HDBW2431RP-ZAS-27135 security camera Dome IP security camera Indoor & outdoor
Dahua Technology

Lite DE-DH-IPC-HDBW2431RP-ZAS-27135 security camera Dome IP security camera Indoor & outdoor

2688 x 1520 pixels Ceiling/wall

Model DE-DH-IPC-HDBW2431RP-ZAS-27135

87 specifications
  • Memory128 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight470 g
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
128 MB
Connectivity
Wired
Type
IP security camera
Weight
470 g
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
DE-DH-IPC-HDBW2431RP-ZAS-27135
Part number
DE-DH-IPC-HDBW2431RP-ZAS-27135
Also known as
Dahua Technology Lite DE-DH-IPC-HDBW2431RP-ZAS-27135 security camera Dome IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling/wall

Specifications

87 specifications in 20 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
CertificationCE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Design

Form factorDome
Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67
IK codeIK10

Camera

Minimum illumination0.008 lx
Angle of rotation355°
Lens viewing angle, horizontal104°
Lens viewing angle, vertical55°
Lens viewing angle, diagonal124°
Tilt angle range0 - 75°
Pan range0 - 355°
White balanceAuto, Manual, Natural, Outdoor, Street lamp
Camera shutter speed1/3 s–1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes

Panoramic camera

Signal-to-Noise Ratio (SNR) (panoramic camera)56 dB
Closest focusing distance (panoramic camera)0.8 m
Detect distance (wide) (panoramic camera)64 m
Identify distance (wide) (panoramic camera)6.4 m
Observe distance (wide) (panoramic camera)25.6 m
Recognize distance (wide) (panoramic camera)12.8 m

Lens system

Focal length range2.7 - 13.5 mm
FocusMotorized
Maximum aperture number1.5

Night vision

Night visionYes
Night vision distance40 m
LED typeIR

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video compression formatsM-JPEG, H.264, H.264+, H.264B, H.265, H.265+
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 2688 x 1520
Supported video modes720p, 1080p
Frame rate30 fps
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Audio formats supportedG.726

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
Number of users20 user(s)

Storage

Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory128 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Alarm input channels1
Alarm output channels1
Intelligent Video Surveillance (IVS) system featuresIntrusion, Tripwire
MirrorYes
Video motion detectionYes

Management features

Web browserYes
Management softwarePSS; DSS; DMSS

Power

Power source typeDC, PoC
Power consumption (typical)6.5 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height122 mm
Diameter8.89 cm
Weight470 g

Packaging data

Package weight630 g

Packaging content

Number of cameras1
