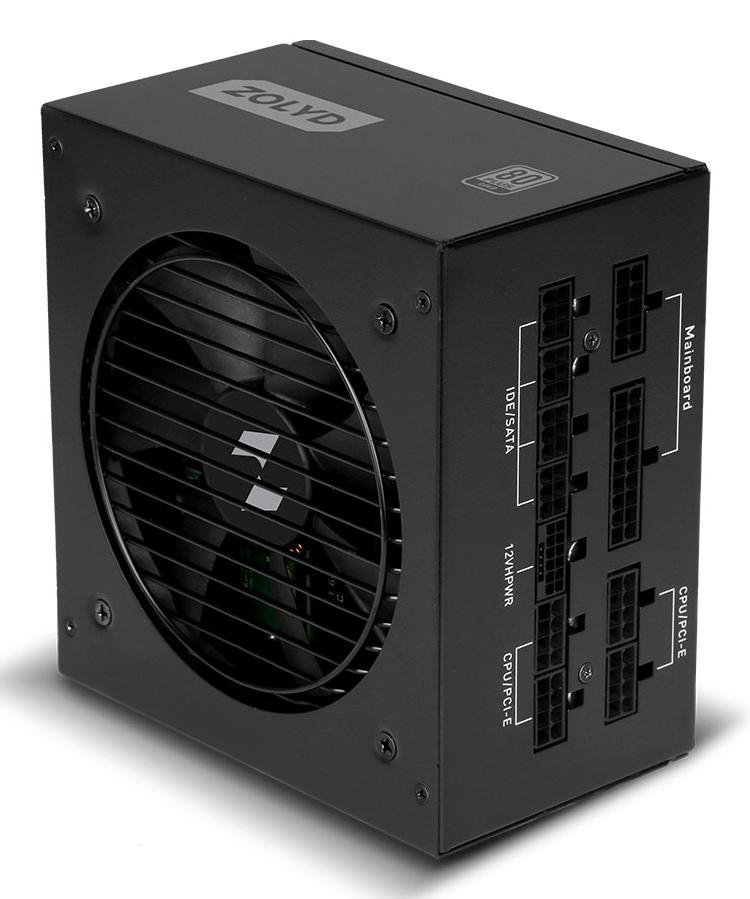

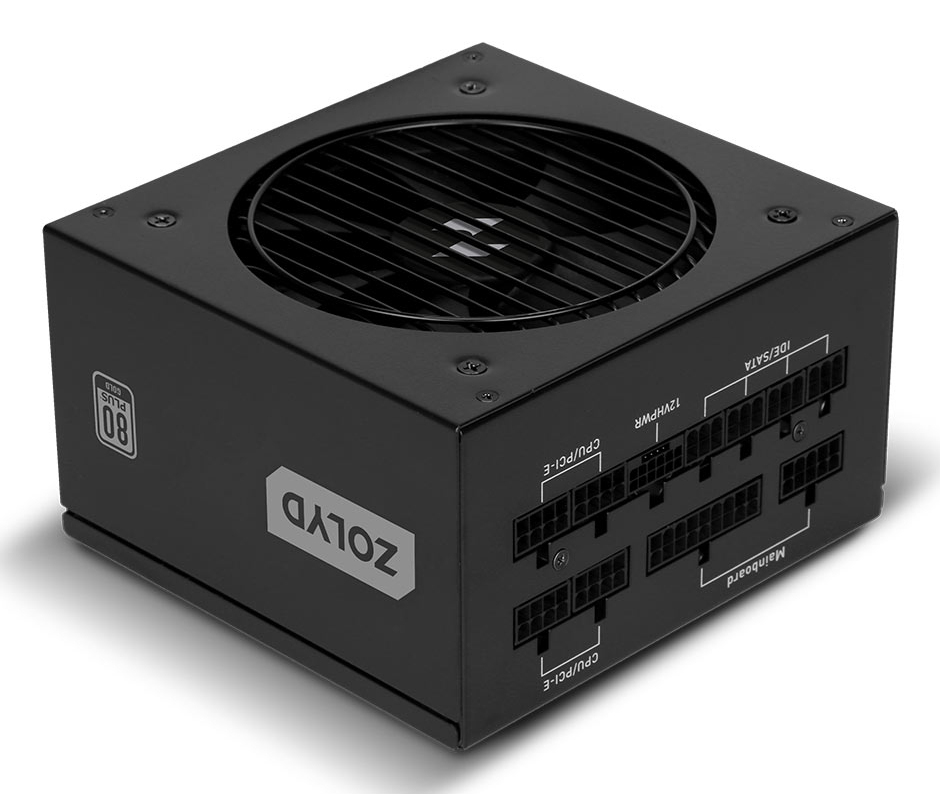

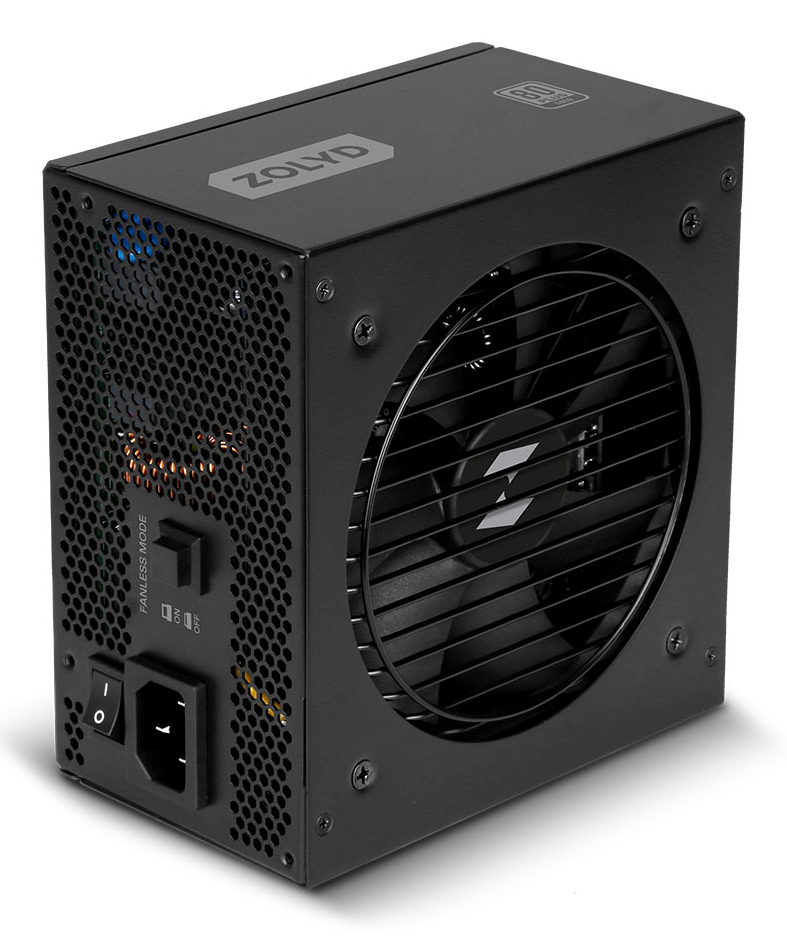

ZLDGM850MBK power supply unit
850 W 20+4 pin ATX ATX Black
Model ZLDGM850MBKEAN 5600413206942
34 specifications
- ColourBlack
- Total power850 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width150 mm
Overview
- Colour
- Black
- Total power
- 850 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- Zolyd
- Category
- Power Supply Unit
- Model
- ZLDGM850MBK
- Part number
- ZLDGM850MBK
- EAN / UPC
- 5600413206942
- Also known as
- Zolyd ZLDGM850MBK power supply unit 850 W 20+4 pin ATX ATX Black
Specifications
34 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 850 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 6 - 12 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 840 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| PCI Express power connectors (6+2 pin) | 3 |
| PCI Express power connectors (12+4 pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 85 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 330 mm |
| Package depth | 130 mm |
| Package height | 195 mm |
| Package weight | 2.3 kg |
