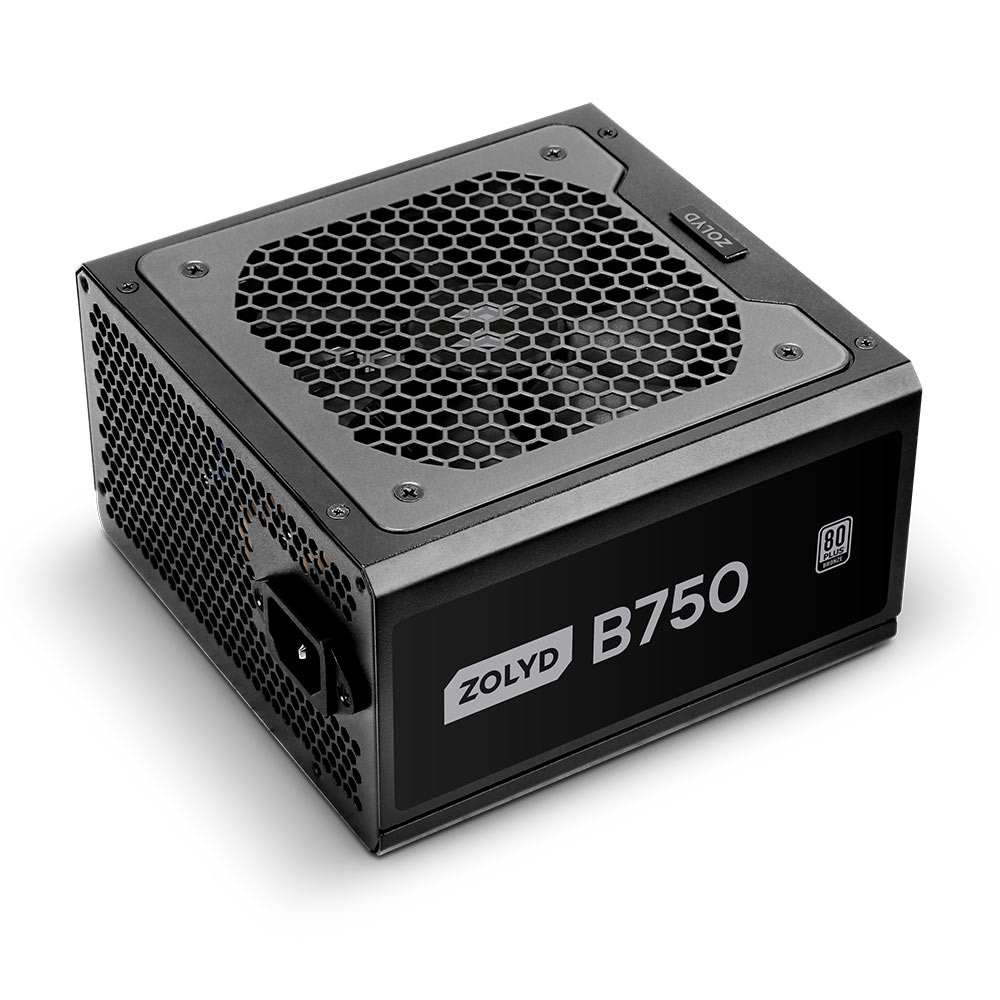

ZLDB750 power supply unit
750 W 24-pin ATX ATX Black
Model ZLDB750EAN 5600413206928
33 specifications
- ColourBlack
- Total power750 W
- Motherboard power connector24-pin ATX
- PurposePC
- Width150 mm
Overview
- Colour
- Black
- Total power
- 750 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- Zolyd
- Category
- Power Supply Unit
- Model
- ZLDB750
- Part number
- ZLDB750
- EAN / UPC
- 5600413206928
- Also known as
- Zolyd ZLDB750 power supply unit 750 W 24-pin ATX ATX Black
Specifications
33 specifications in 6 groups
Power

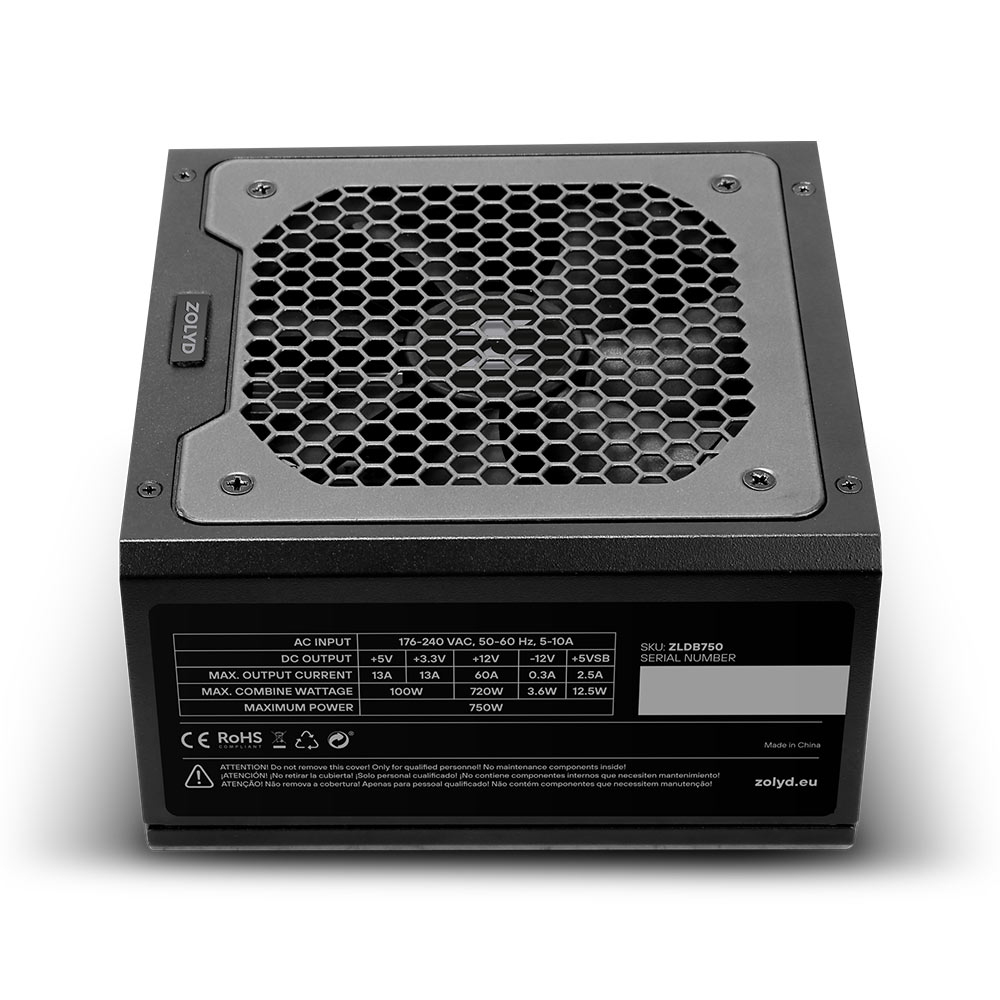

| Specification | Value |
|---|---|
| Total power | 750 W |
| AC input voltage | 176 – 240 |
| AC input frequency | 50/60 Hz |
| Input current | 5 - 10 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 720 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 15 A |
| Max output current (+12V) | 60 A |
| Max output current (+5V) | 13 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 330 mm |
| Package depth | 130 mm |
| Package height | 195 mm |
| Package weight | 2.1 kg |
