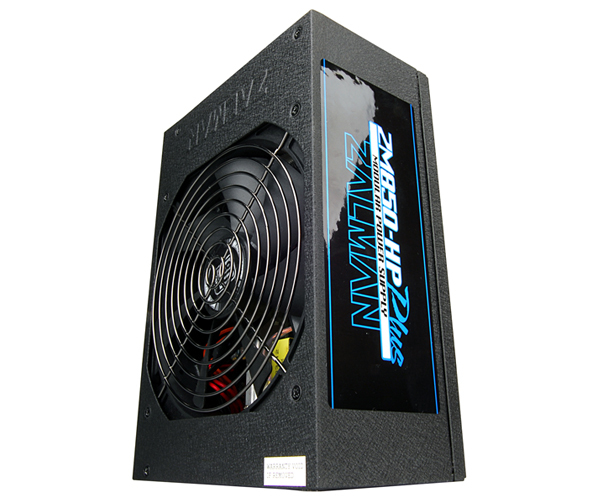

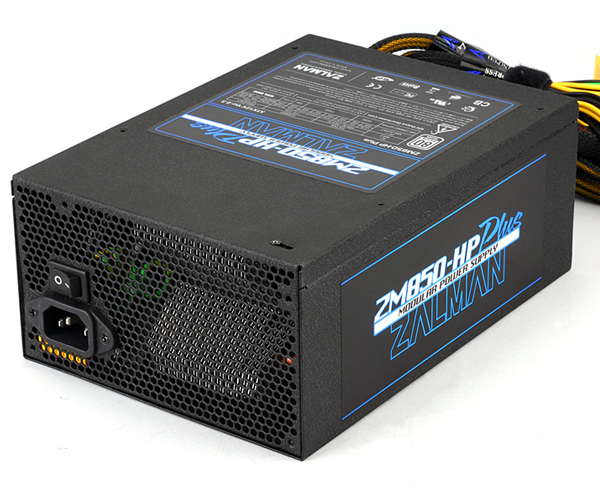

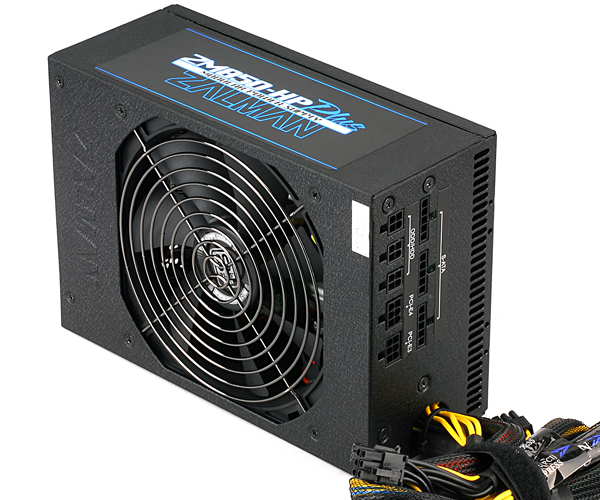

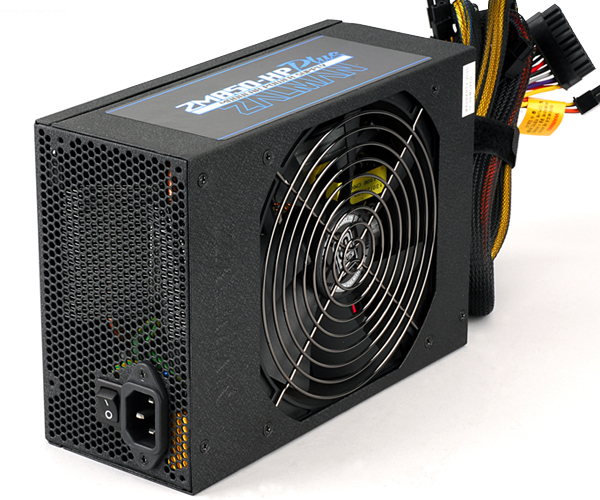

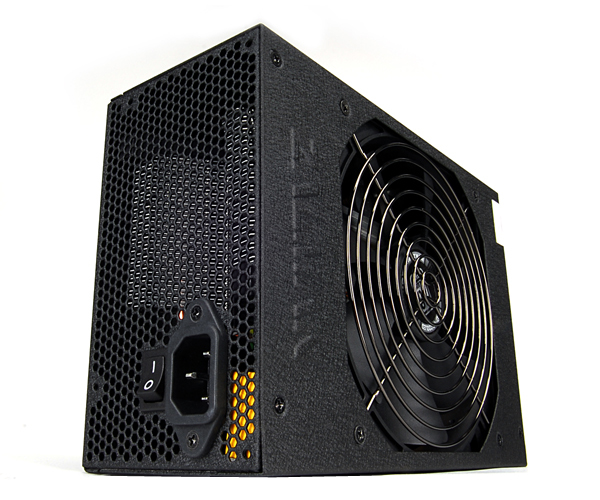

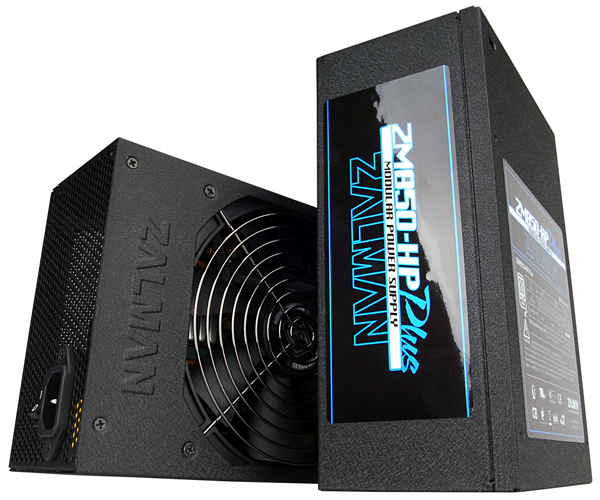

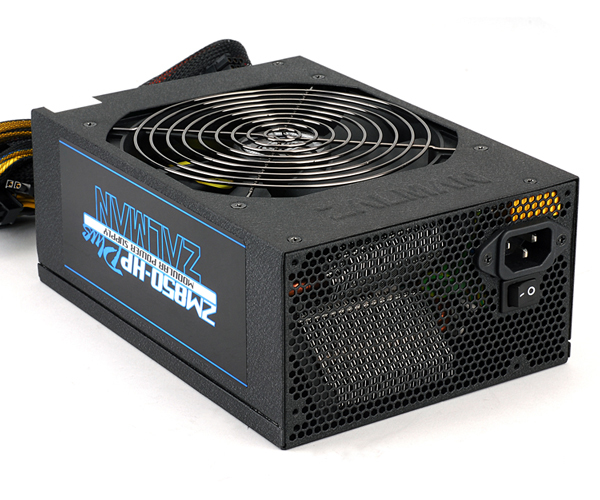

Zalman ZM850-HP Plus
Model ZM850-HP PlusPart no. ZM850-HP PLUSEAN 8809213761904
43 specifications
- Weight4 kg
- ColourBlack
- Total power850 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 4 kg
- Colour
- Black
- Total power
- 850 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Zalman
- Category
- Power Supply Unit
- Model
- ZM850-HP Plus
- Part number
- ZM850-HP PLUS
- EAN / UPC
- 8809213761904
- Also known as
- Zalman ZM850-HP Plus power supply unit 850 W 20+4 pin ATX ATX Black
Specifications
43 specifications in 9 groups
Power
| Specification | Value |
|---|---|
| Total power | 850 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 5.5 - 11 A |
| Maximum input current (@110V) | +12V1,+12V2,+12V3,+12V4,+3.3V,+5V,+5Vsb,-12V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 180 W |
| Combined power (+12V) | 816 W |
| Combined power (+5V) | 180 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 17.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 25 A |
| Max output current (+5V) | 24 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3.5 A |
| Efficiency | 90% |
| Power protection features | Over current, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 3 |
| EPS power connector (8-pin) | Yes |
| PCI Express power connectors (6-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 3 |
| CPU P4 connector (4-pin) | 1 |
| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS |
| ATX version | 2.2 |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan diameter | 14 cm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 210 mm |
| Height | 86 mm |
| Weight | 4 kg |
Technical details
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 150 x 210 x 86 mm |
What people say
Reviews & ratings
Zalman ZM850-HP Plus
No reviews yet
Be the first to tell others how Zalman ZM850-HP Plus works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Zalman ZM850-HP Plus

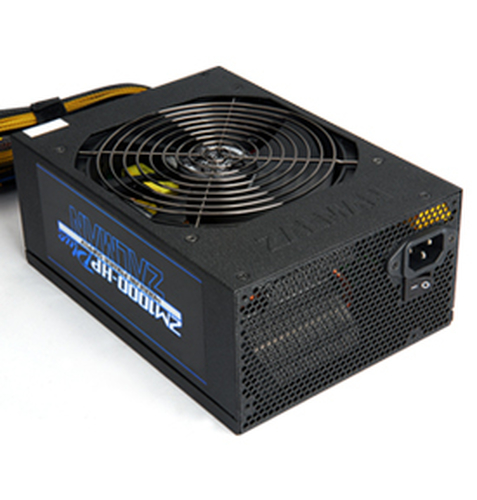

All power supply unit comparisons- Zalman ZM850-HP Plus vsZalman ZM1000-HP PLUSCompare specs
