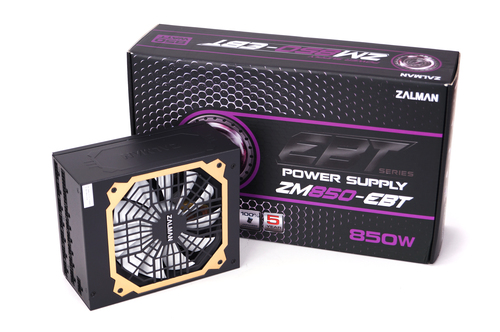

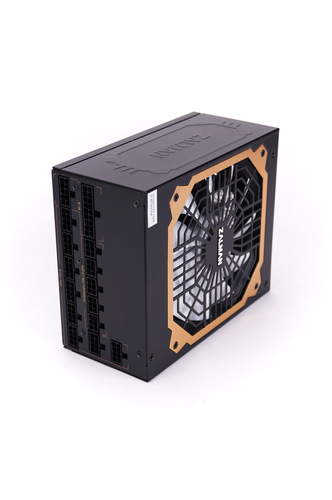

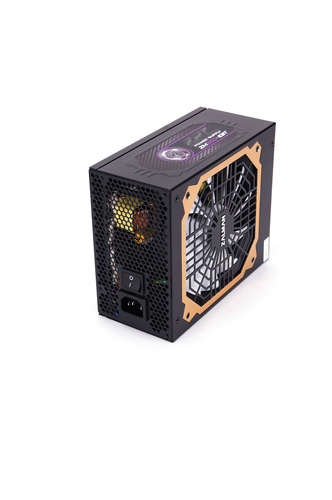

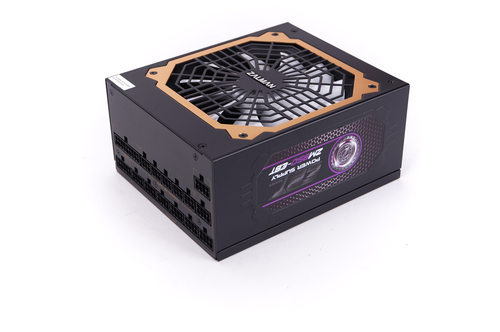

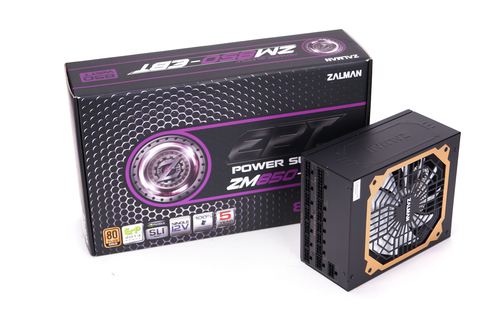

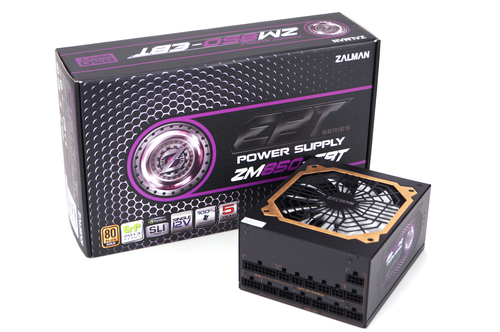

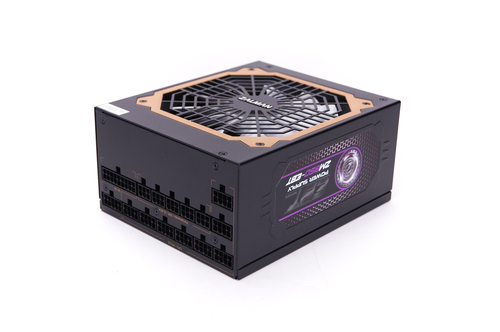

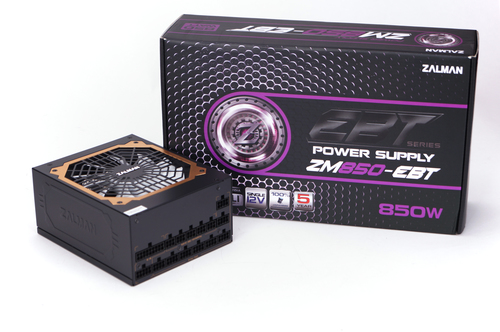

Zalman ZM850-EBT power supply unit

Zalman ZM850-EBT power supply unit

850 W 20+4 pin ATX ATX Black

Model ZM850-EBTEAN 823884207576

52 specifications
  • Weight3.2 kg
  • ColourBlack
  • Total power850 W
  • Motherboard power connector20+4 pin ATX
  • PurposePC
  • Operating temperature (T-T)0 - 50 °C
See all specifications

Overview

Weight
3.2 kg
Colour
Black
Total power
850 W
Motherboard power connector
20+4 pin ATX
Purpose
PC
Operating temperature (T-T)
0 - 50 °C
Brand
Zalman
Model
ZM850-EBT
Part number
ZM850-EBT
EAN / UPC
823884207576, 8809213767807
Also known as
Zalman ZM850-EBT power supply unit 850 W 20+4 pin ATX ATX Black

Specifications

52 specifications in 9 groups

Power

Total power850 W
AC input voltage110 - 240 V
AC input frequency50 - 60 Hz
Input current15 A
Maximum input current (@110V)15 A
Power factor99
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)130 W
Combined power (+12V)846 W
Combined power (+5V)130 W
Combined power (-12V)3.6 W
Combined power (+5Vsb)20 W
Max output current (+3.3V)25 A
Max output current (+12V)70.5 A
Max output current (+5V)25 A
Max output current (-12V)0.3 A
Max output current (+5Vsb)4 A
Efficiency92%
Power protection featuresOver current, Over power, Over voltage, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector20+4 pin ATX
Motherboard power cable length55 cm
Number of SATA power connectors3
SATA power cable length450 mm
PCI Express power connectors (6+2 pin)6
PCI Express power cable length55 cm
CPU P4 connector (4-pin)1
CPU power connector (4+4 pin)Yes
CPU power cable length65 cm
PCI Express connectorYes
Cabling typeFully-Modular

Performance

PurposePC
Power supply unit (PSU) form factorATX
80 PLUS certification80 PLUS Gold
ATX version2.3
EPS version2.92

Design

Product colourBlack
Cooling typeActive
Fan diameter13.5 cm
Number of fans1 fan(s)
Fan locationTop

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%

Packaging content

Cables includedAC, CPU, PCIe, SATA

Certificates

Compliance certificatesRoHS
CertificationCE, CB, EAC, NRTL, FCC, TUV, KC

Weight & dimensions

Width150 mm
Depth180 mm
Height86 mm
Weight3.2 kg

Packaging data

Package typeBox
