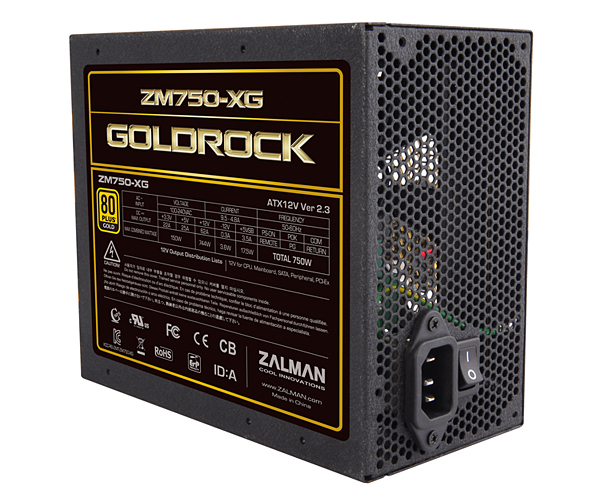

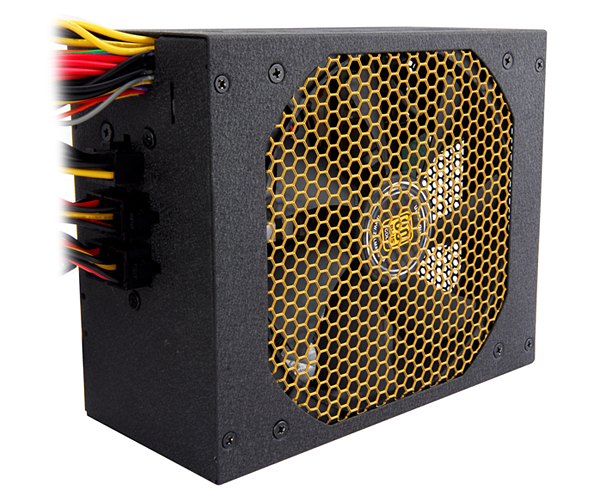

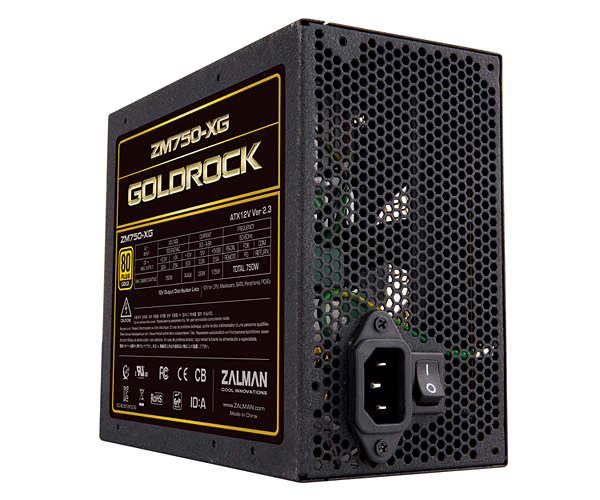

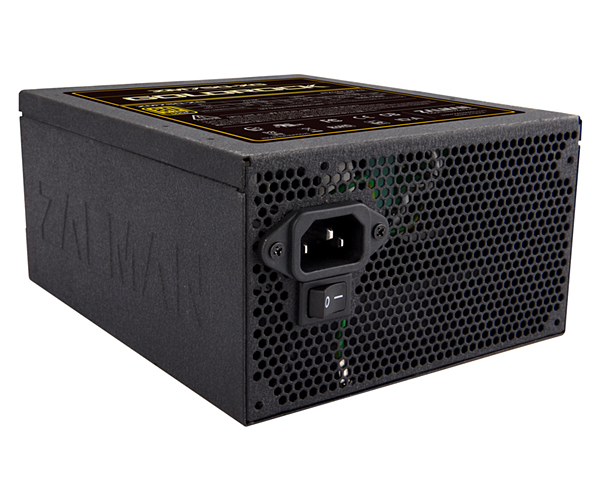

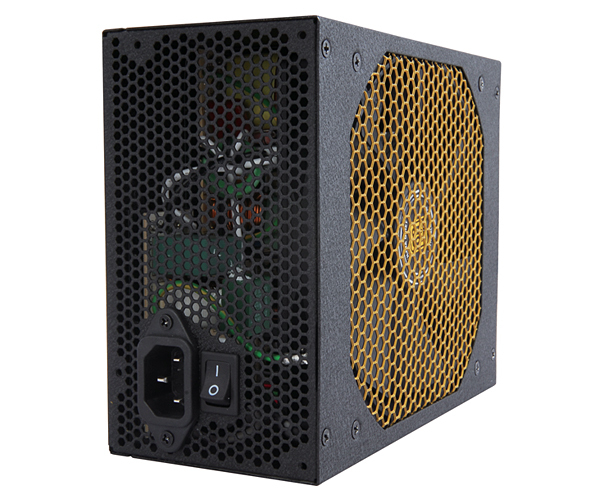

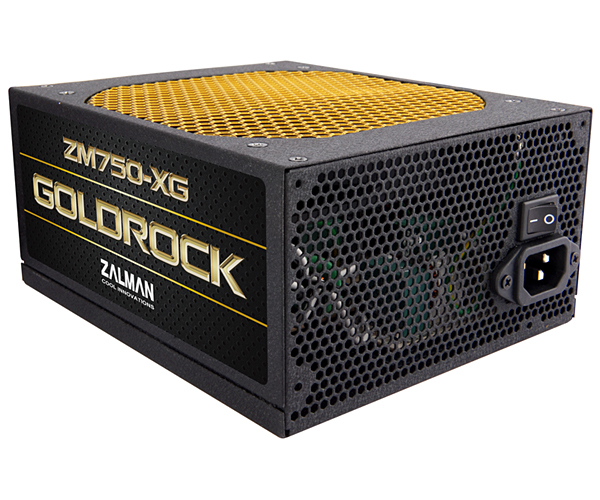

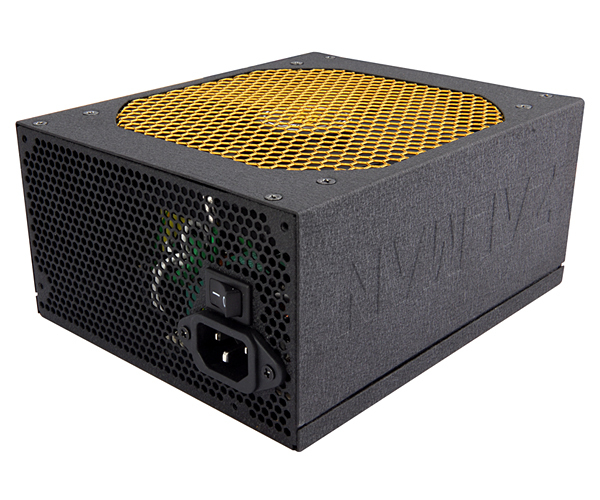

Zalman ZM750-XG power supply unit

Zalman ZM750-XG power supply unit

750 W 20+4 pin ATX ATX Black, Yellow

Model ZM750-XGEAN 823884203905

43 specifications
  • ColourBlack, Yellow
  • Total power750 W
  • Motherboard power connector20+4 pin ATX
  • PurposePC
  • Operating temperature (T-T)0 - 40 °C
  • Width150 mm
See all specifications

Overview

Colour
Black, Yellow
Total power
750 W
Motherboard power connector
20+4 pin ATX
Purpose
PC
Operating temperature (T-T)
0 - 40 °C
Width
150 mm
Brand
Zalman
Model
ZM750-XG
Part number
ZM750-XG
EAN / UPC
823884203905, 8238842039052, 8809213764141
Also known as
Zalman ZM750-XG power supply unit 750 W 20+4 pin ATX ATX Black, Yellow

Specifications

43 specifications in 7 groups

Power

Total power750 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current9.5 A
Maximum input current (@110V)+12V,+3.3V,+5V,+5Vsb,-5Vsb
Power factor99
Combined power (+3.3V)150 W
Combined power (+12V)744 W
Combined power (+5V)150 W
Combined power (-12V)3.6 W
Combined power (+5Vsb)17.5 W
Max output current (+3.3V)22 A
Max output current (+12V)62 A
Max output current (+5V)25 A
Max output current (-12V)0.3 A
Max output current (+5Vsb)3.5 A
Efficiency92%
Power protection featuresOver current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector20+4 pin ATX
Number of SATA power connectors2
Peripheral (Molex) power connectors (4-pin)7
PCI Express power connectors (6+2 pin)4
CPU power connector (4+4 pin)Yes
Floppy drive power connector1
Cabling typeSemi-Modular

Performance

PurposePC
Power supply unit (PSU) form factorATX
80 PLUS certification80 PLUS Gold
Mean time between failures (MTBF)100000 h

Design

Product colourBlack, Yellow
Cooling typeActive
Fan diameter13.9 cm
Number of fans1 fan(s)
Fan locationSide
On/off switchYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 80 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%

Weight & dimensions

Width150 mm
Depth180 mm
Height86 mm

Packaging data

ManualYes
