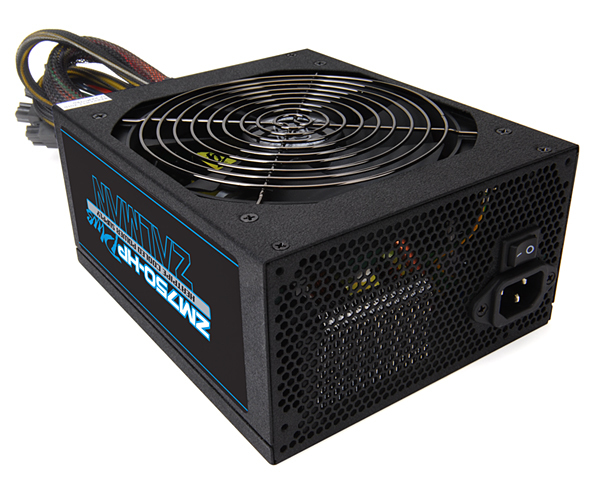

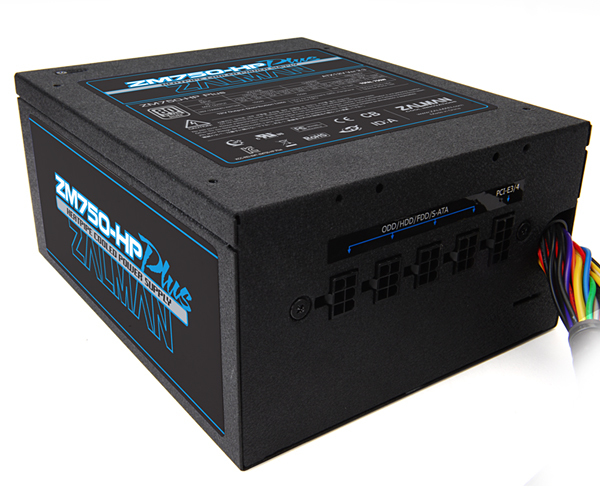

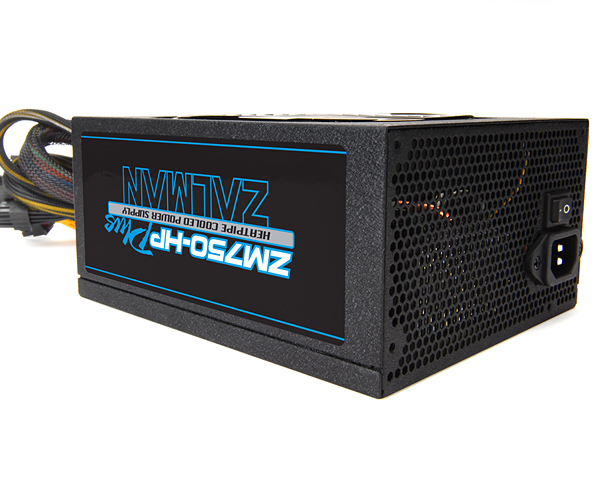

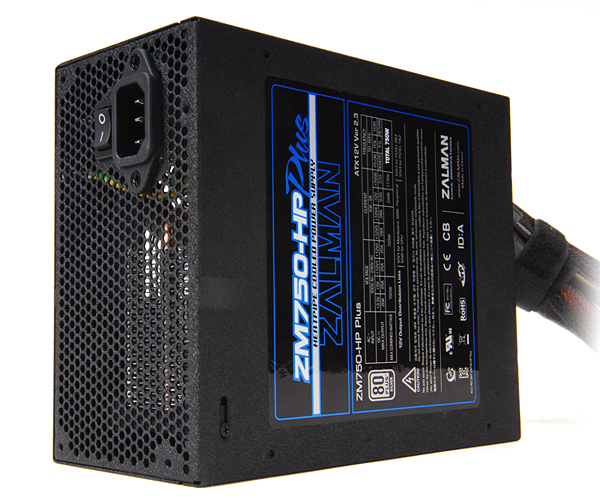

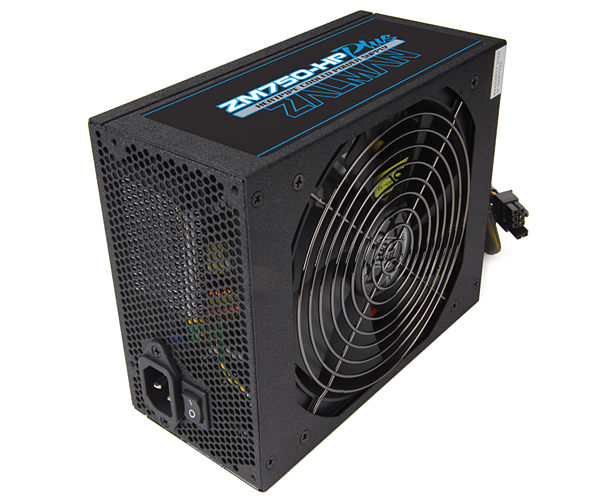

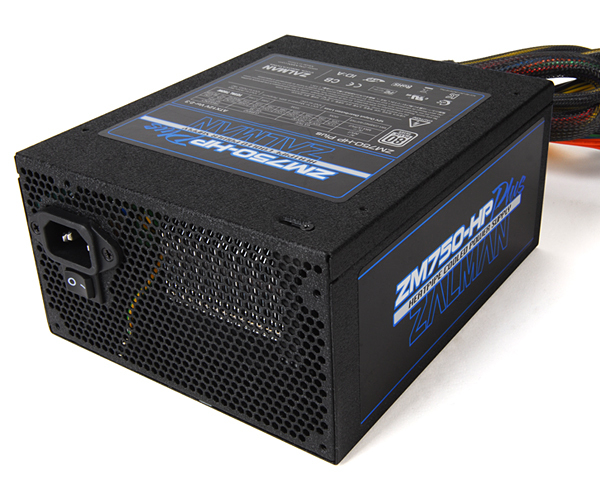

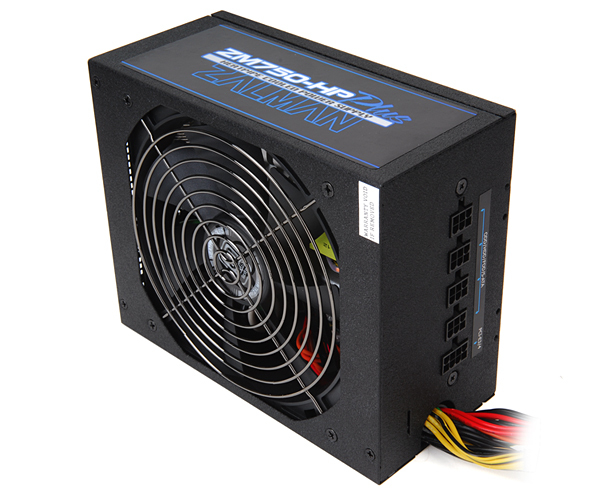

Zalman ZM750-HP Plus

Zalman ZM750-HP Plus

Model ZM750-HP PlusPart no. ZM750-HP PLUSEAN 8809213763311

52 specifications
  • Weight3.5 kg
  • ColourBlack
  • Total power750 W
  • Motherboard power connector20+4 pin ATX
  • PurposePC
  • Operating temperature (T-T)0 - 40 °C
See all specifications

Overview

Weight
3.5 kg
Colour
Black
Total power
750 W
Motherboard power connector
20+4 pin ATX
Purpose
PC
Operating temperature (T-T)
0 - 40 °C
Brand
Zalman
Model
ZM750-HP Plus
Part number
ZM750-HP PLUS
EAN / UPC
8809213763311
Also known as
Zalman ZM750-HP Plus power supply unit 750 W 20+4 pin ATX ATX Black

Specifications

52 specifications in 8 groups

Power

Total power750 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current10 A
Maximum input current (@110V)+12V1,+12V2,+12V3,+12V4,+3.3V,+5V,+5Vsb,-12V
Power factor99
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)150 W
Combined power (+12V)720 W
Combined power (+5V)150 W
Combined power (-12V)3.6 W
Combined power (+5Vsb)17.5 W
Max output current (+3.3V)20 A
Max output current (+12V1)25 A
Max output current (+12V2)20 A
Max output current (+12V3)28 A
Max output current (+12V4)28 A
Max output current (+5V)25 A
Max output current (-12V)0.3 A
Max output current (+5Vsb)17.5 A
Efficiency90%
Power protection featuresOver current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector20+4 pin ATX
Number of SATA power connectors4
Peripheral (Molex) power connectors (4-pin)4
PCI Express power connectors (6-pin)2
PCI Express power connectors (6+2 pin)2
CPU power connector (4+4 pin)Yes
Floppy drive power connector1
Cabling typeSemi-Modular

Performance

PurposePC
Power supply unit (PSU) form factorATX
80 PLUS certification80 PLUS Silver
ATX version2.3
Mean time between failures (MTBF)100000 h

Design

Product colourBlack
Cooling typeActive
Fan diameter14 cm
Number of fans1 fan(s)
Fan locationSide
On/off switchYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 80 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 95%

Certificates

Compliance certificatesRoHS
CertificationCB, CE, FCC

Weight & dimensions

Width150 mm
Depth180 mm
Height86 mm
Weight3.5 kg

Packaging data

ManualYes
