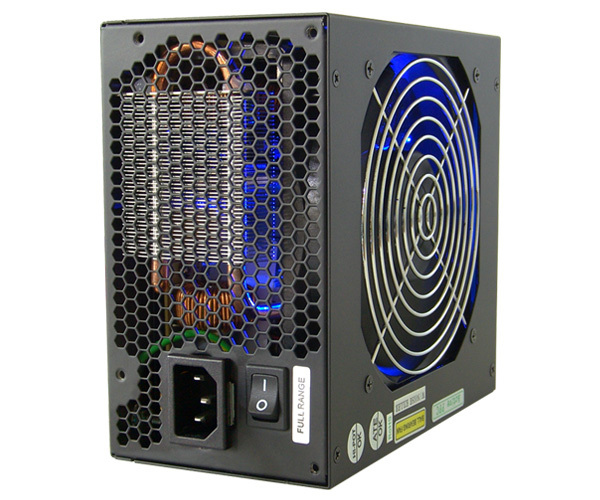

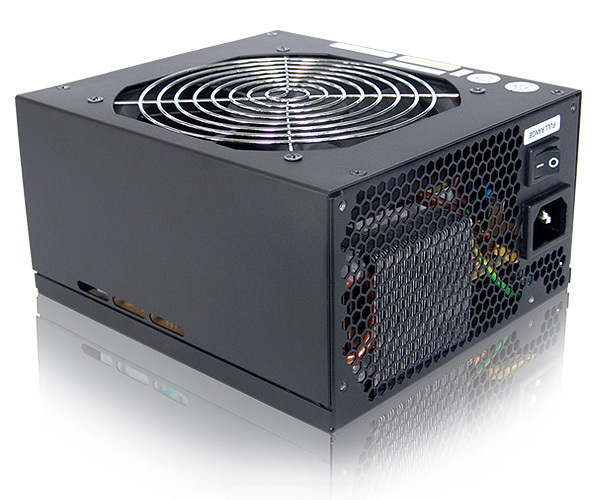

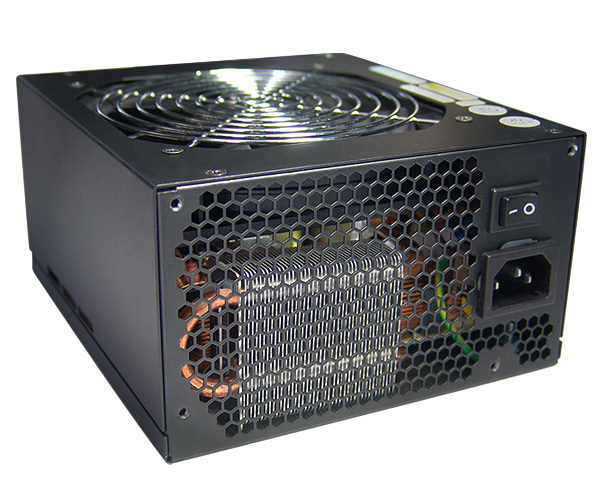

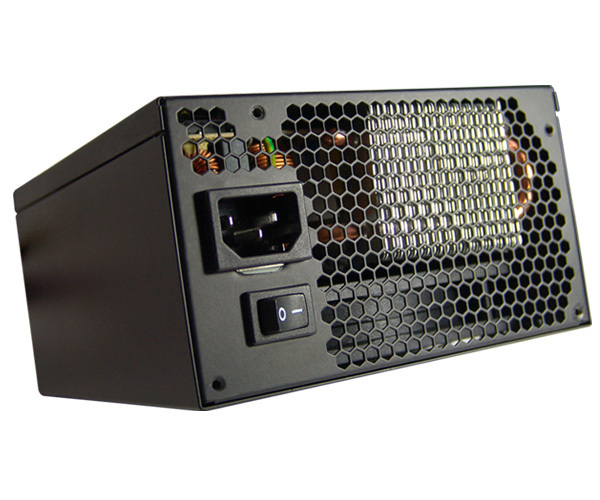

ZM750-HP power supply unit
750 W 20+4 pin ATX ATX Black
Model ZM750-HPEAN 8809213760402
44 specifications
- Noise20 dB
- ColourBlack
- Total power750 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Operating temperature (T-T)0 - 50 °C
Overview
- Noise
- 20 dB
- Colour
- Black
- Total power
- 750 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- Zalman
- Category
- Power Supply Unit
- Model
- ZM750-HP
- Part number
- ZM750-HP
- EAN / UPC
- 8809213760402
- Also known as
- Zalman ZM750-HP power supply unit 750 W 20+4 pin ATX ATX Black
Specifications
44 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| Input current | 5.5 - 12 A |
| Maximum input current (@110V) | +12V,+12V1,+12V2,+12V3,+12V4,+3.3V,+5V,+5Vsb,-12V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 160 W |
| Combined power (+12V) | 720 W |
| Combined power (+5V) | 160 W |
| Combined power (-12V) | 22.1 W |
| Combined power (+5Vsb) | 22.1 W |
| Max output current (+3.3V) | 30 A |
| Max output current (+12V) | 20 A |
| Max output current (+5V) | 30 A |
| Max output current (-12V) | 0.8 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 86% |
| Power protection features | Over current, Over voltage, Short circuit, Under voltage, Overheating |

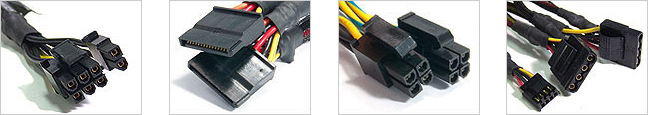

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 9 |
| EPS power connector (8-pin) | Yes |
| PCI Express power connectors (6-pin) | 2 |
| CPU P4 connector (4-pin) | 1 |
| ATX power connector (20+4 pin) | Yes |
| Floppy drive power connector | 2 |
| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS |
| ATX version | 2.2 |
| Noise level | 20 dB |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| LED indicators | Power |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | FCC, EC, CB, WEEE |
Other features
| Specification | Value |
|---|---|
| Voltage tolerance | ±10 |
| Dimensions (WxDxH) | 150 x 165 x 86 mm |
