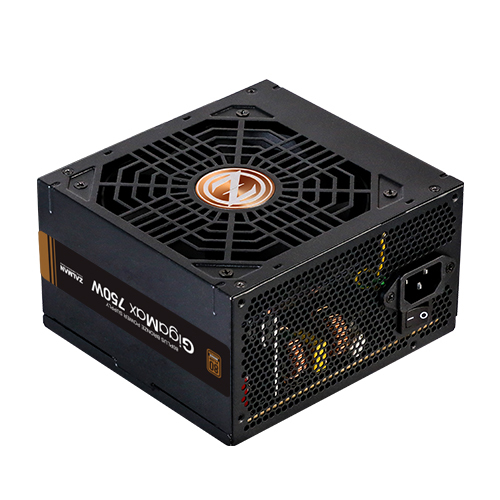

Zalman ZM750-ARX power supply unit

Zalman ZM750-ARX power supply unit

750 W 20+4 pin ATX ATX Black

Model ZM750-ARXEAN 823884208412

53 specifications
  • Weight2.9 kg
  • ColourBlack
  • Total power750 W
  • Motherboard power connector20+4 pin ATX
  • PurposePC
  • Operating temperature (T-T)0 - 40 °C
See all specifications

Overview

Weight
2.9 kg
Colour
Black
Total power
750 W
Motherboard power connector
20+4 pin ATX
Purpose
PC
Operating temperature (T-T)
0 - 40 °C
Brand
Zalman
Model
ZM750-ARX
Part number
ZM750-ARX
EAN / UPC
823884208412, 8809213768750
Also known as
Zalman ZM750-ARX power supply unit 750 W 20+4 pin ATX ATX Black

Specifications

53 specifications in 10 groups

Power

Total power750 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)120 W
Combined power (+12V)744 W
Combined power (+5V)120 W
Combined power (-12V)3.6 W
Combined power (+5Vsb)12.5 W
Max output current (+3.3V)25 A
Max output current (+12V)62 A
Max output current (+5V)22 A
Max output current (-12V)0.3 A
Max output current (+5Vsb)2.5 A
Efficiency94%
Power protection featuresOver current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector20+4 pin ATX
Motherboard power cable length60 cm
Number of SATA power connectors12
Peripheral (Molex) power connectors (4-pin)6
EPS power connector (8-pin)Yes
PCI Express power connectors (6+2 pin)4
PCI Express power cable length55 cm
CPU power connector (4+4 pin)Yes
CPU power cable length70 cm
Floppy disk drive connectorYes
Cabling typeFully-Modular

Performance

PurposePC
Power supply unit (PSU) form factorATX
80 PLUS certification80 PLUS Platinum

Design

Product colourBlack
Cooling typeActive
Fan diameter13.5 cm
Number of fans1 fan(s)
Fan locationTop

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%

Packaging content

Cables includedAC

Certificates

Compliance certificatesRoHS
CertificationUL, FCC, CB, CE, EAC, KC, WEEE

Weight & dimensions

Width150 mm
Depth180 mm
Height86 mm
Weight2.9 kg

Packaging data

Cable storage bag includedYes
Number of straps5
ManualYes
Package typeBox

Other features

Screws includedYes
Number of screws4
Cable ties includedYes
