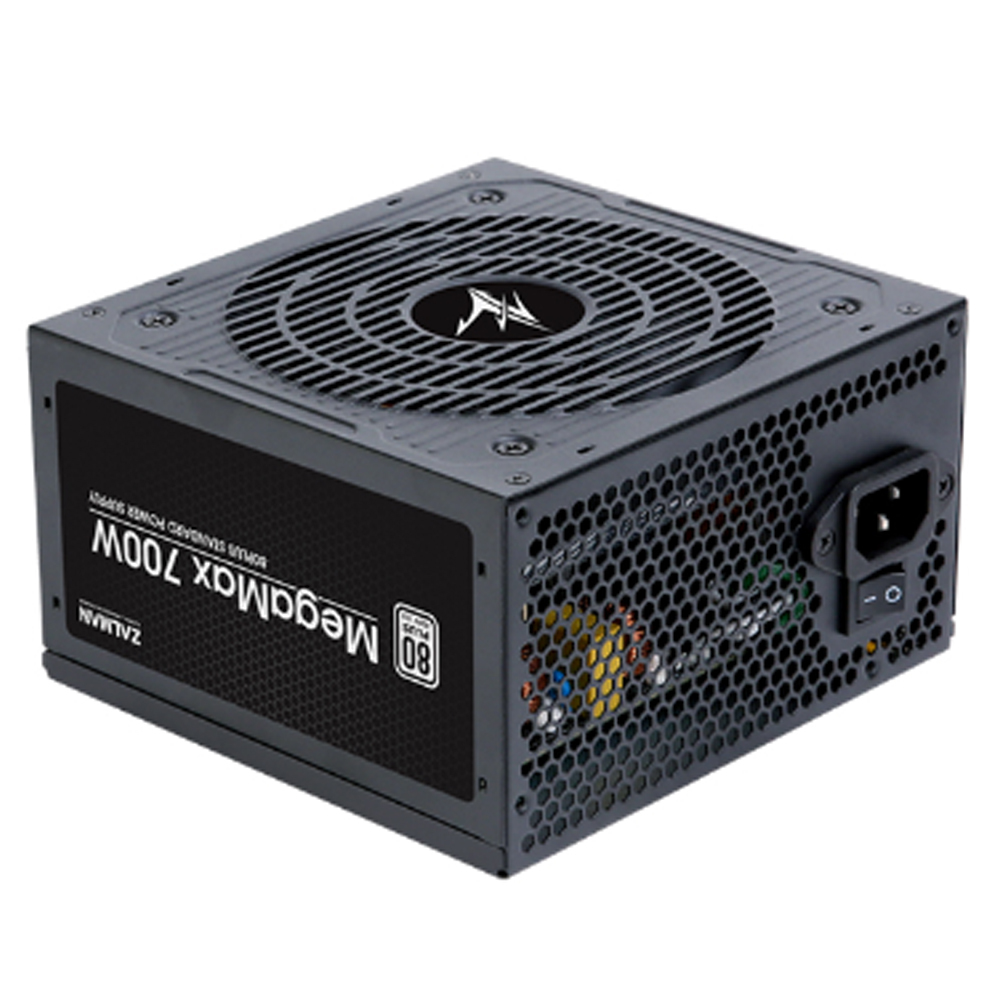

ZM700-TXII power supply unit
700 W 20+4 pin ATX ATX Black
Model ZM700-TXIIEAN 8809213769818
45 specifications
- Weight1.79 kg
- ColourBlack
- Total power700 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Operating temperature (T-T)10 - 45 °C
Overview
- Weight
- 1.79 kg
- Colour
- Black
- Total power
- 700 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Operating temperature (T-T)
- 10 - 45 °C
- Brand
- Zalman
- Category
- Power Supply Unit
- Model
- ZM700-TXII
- Part number
- ZM700-TXII
- EAN / UPC
- 8809213769818
- Also known as
- Zalman ZM700-TXII power supply unit 700 W 20+4 pin ATX ATX Black
Specifications
45 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 700 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 6 A |
| Power factor | 99 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+12V) | 630 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 52.5 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 87% |
| Power protection features | Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| EPS power connector (8-pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU P4 connector (4-pin) | 1 |
| ATX power connector (20+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS |
| ATX version | 2.31 |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan speed | 2500 - 2500 RPM |
| Fan location | Top |
| On/off switch | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 45 °C |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | KC, CE, CB, RoHS, EAC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 1.79 kg |
