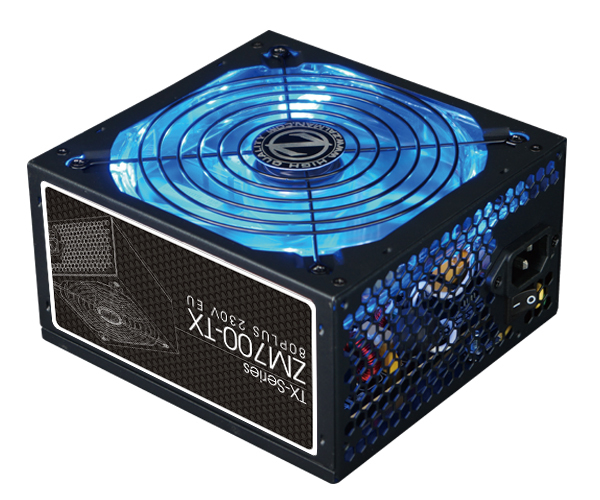

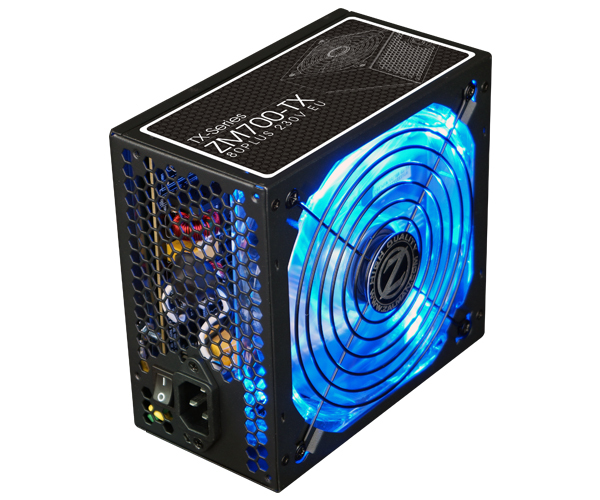

Zalman ZM700-TX power supply unit
700 W ATX Black
Model ZM700-TXEAN 8809213768286
22 specifications
- Weight2.2 kg
- ColourBlack
- Total power700 W
- Cabling typeNon-Modular
- PurposePC
- Width150 mm
Overview
- Weight
- 2.2 kg
- Colour
- Black
- Total power
- 700 W
- Cabling type
- Non-Modular
- Purpose
- PC
- Width
- 150 mm
- Brand
- Zalman
- Category
- Power Supply Unit
- Model
- ZM700-TX
- Part number
- ZM700-TX
- EAN / UPC
- 8809213768286
- Also known as
- Zalman ZM700-TX power supply unit 700 W ATX Black
Specifications
22 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 700 W |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 8 -20 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 140 W |
| Combined power (+12V) | 696 W |
| Combined power (+5V) | 140 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 58 A |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan diameter | 14 cm |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 157 mm |
| Height | 86 mm |
| Weight | 2.2 kg |
