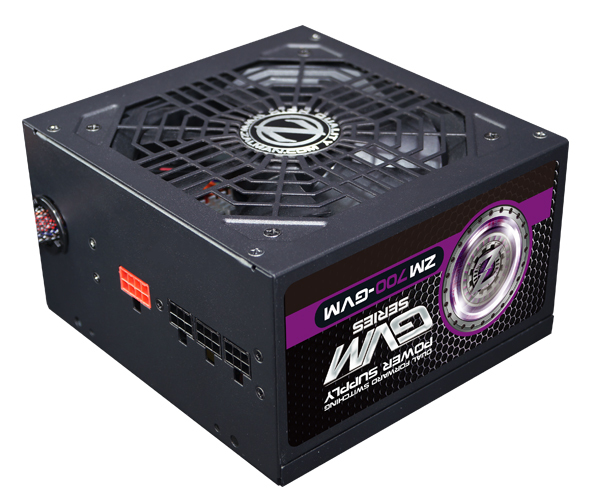

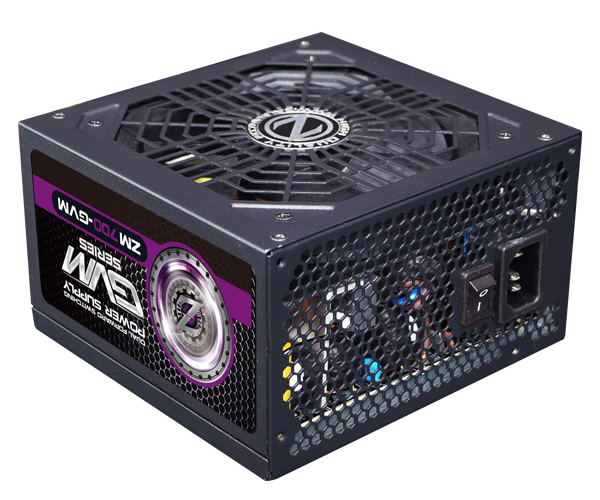

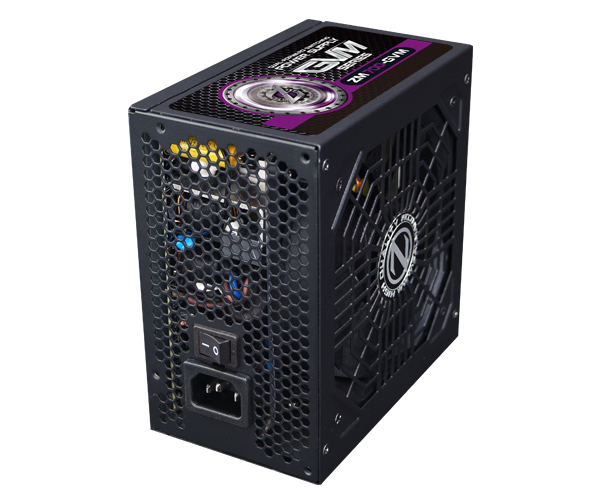

Zalman ZM700-GVM power supply unit 20+4 pin ATX ATX Black

Zalman ZM700-GVM power supply unit 20+4 pin ATX ATX Black

Model ZM700-GVMEAN 8809213768385

39 specifications
  • Weight2.5 kg
  • ColourBlack
  • AC input voltage115 - 230 V
  • Motherboard power connector20+4 pin ATX
  • Power supply unit (PSU) form factorATX
  • Operating temperature (T-T)0 - 45 °C
See all specifications

Overview

Weight
2.5 kg
Colour
Black
AC input voltage
115 - 230 V
Motherboard power connector
20+4 pin ATX
Power supply unit (PSU) form factor
ATX
Operating temperature (T-T)
0 - 45 °C
Brand
Zalman
Model
ZM700-GVM
Part number
ZM700-GVM
EAN / UPC
8809213768385
Also known as
Zalman ZM700-GVM power supply unit 20+4 pin ATX ATX Black

Specifications

39 specifications in 10 groups

Power

AC input voltage115 - 230 V
AC input frequency50 - 60 Hz
Input current10 A
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)130 W
Combined power (+12V)630 W
Combined power (+5V)130 W
Combined power (-12V)3.6 W
Combined power (+5Vsb)12.5 W
Max output current (+3.3V)22 A
Max output current (+12V)55 A
Max output current (+5V)22 A
Max output current (-12V)0.3 A
Max output current (+5Vsb)3.5 A
Power protection featuresOver voltage, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector20+4 pin ATX
Number of SATA power connectors6
Peripheral (Molex) power connectors (4-pin)4
Floppy disk drive connectorYes
Cabling typeSemi-Modular

Performance

Power supply unit (PSU) form factorATX
80 PLUS certification80 PLUS Bronze

Design

Product colourBlack
Cooling typeActive
Fan diameter12 cm
Number of fans1 fan(s)
On/off switchYes

Operational conditions

Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%

Packaging content

Cables includedAC

Certificates

CertificationNRTL, FCC, CB, CE, TUV, KC, EAC

Weight & dimensions

Width150 mm
Depth140 mm
Height86 mm
Weight2.5 kg

Packaging data

ManualYes

Technical details

Sustainability certificatesENERGY STAR
