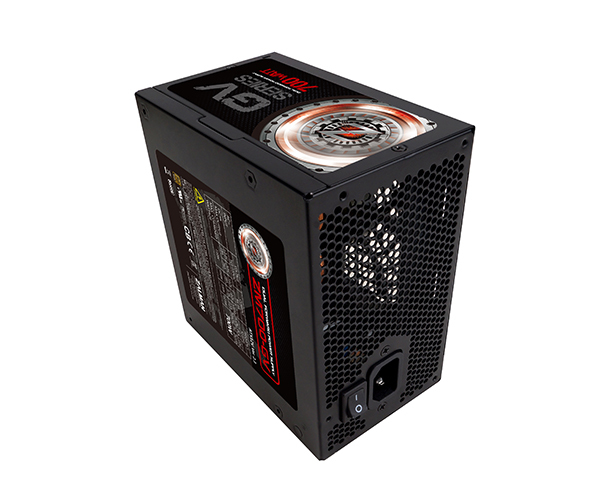

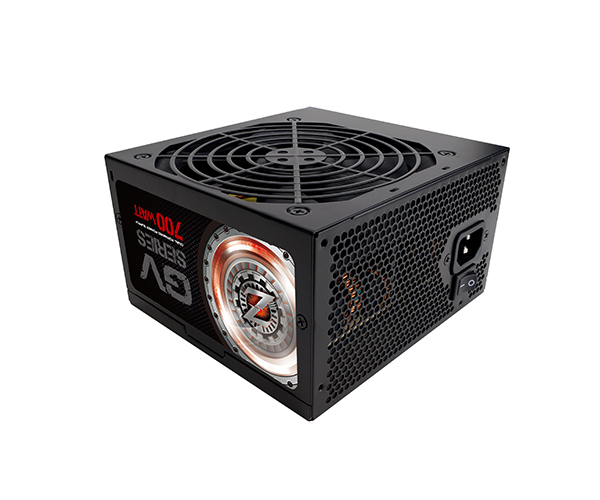

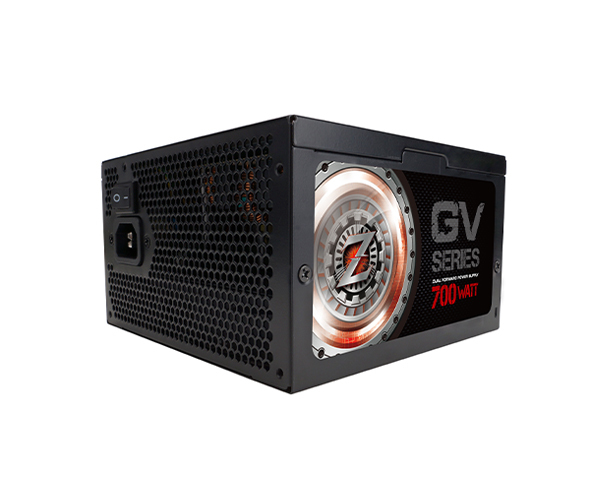

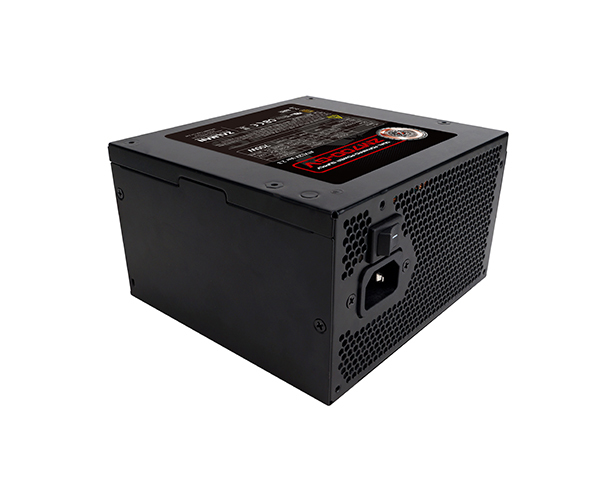

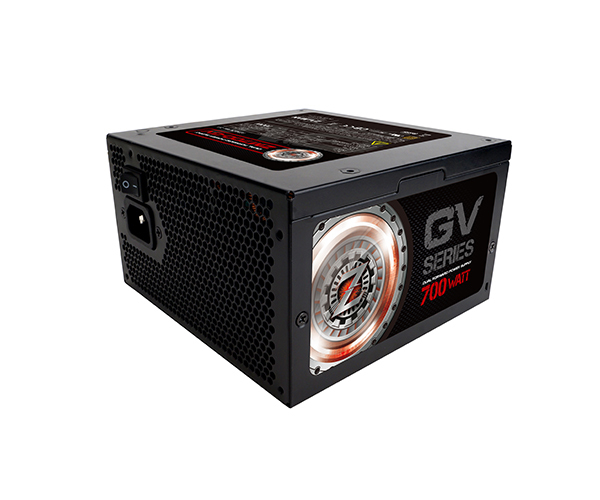

Zalman ZM700-GV power supply unit
700 W 20+4 pin ATX ATX Black
Model ZM700-GVEAN 8809213766060
43 specifications
- Weight2.2 kg
- ColourBlack
- Total power700 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Storage temperature (T-T)-20 - 70 °C
Overview
- Weight
- 2.2 kg
- Colour
- Black
- Total power
- 700 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Storage temperature (T-T)
- -20 - 70 °C
- Brand
- Zalman
- Category
- Power Supply Unit
- Model
- ZM700-GV
- Part number
- ZM700-GV
- EAN / UPC
- 8809213766060
- Also known as
- Zalman ZM700-GV power supply unit 700 W 20+4 pin ATX ATX Black
Specifications
43 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 700 W |
| AC input voltage | 115 - 230 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 10 A |
| Maximum input current (@110V) | +12V,+3.3V,+5V,+5Vsb,-12V |
| Power factor | 99 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 648 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 54 A |
| Max output current (+5V) | 18 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 88% |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6-pin) | 4 |
| CPU power connector (4+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Certificates
| Specification | Value |
|---|---|
| Certification | UL, FCC, CB, CE, KC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 2.2 kg |
What people say
Reviews & ratings
Zalman ZM700-GV power supply unit
No reviews yet
Be the first to tell others how Zalman ZM700-GV power supply unit works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Zalman ZM700-GV power supply unit

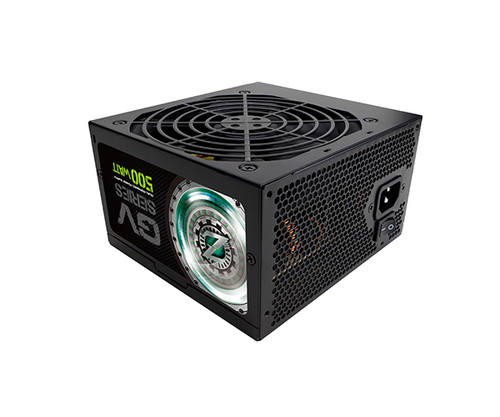

All power supply unit comparisons- Zalman ZM700-GV power supply unit vsZalman ZM500-GV power supply unitCompare specs

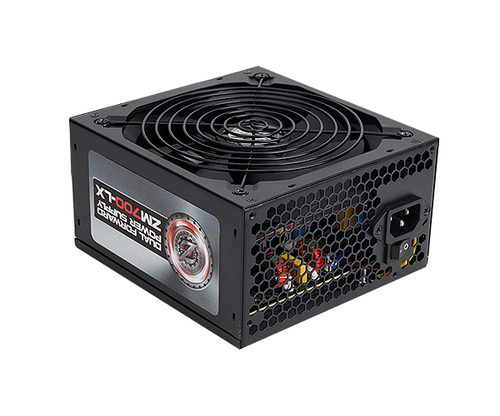

- Zalman ZM700-GV power supply unit vsZalman ZM700-LX power supply unitCompare specs

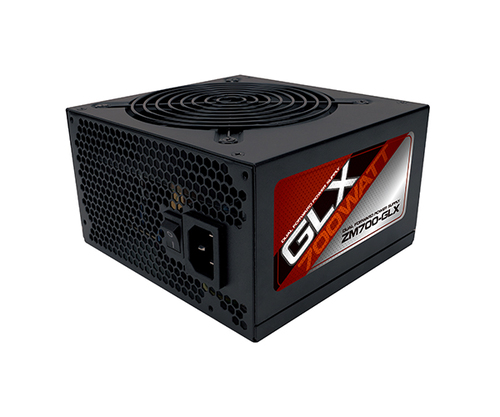

- Zalman ZM700-GV power supply unit vsZalman ZM700-GLX power supply unitCompare specs

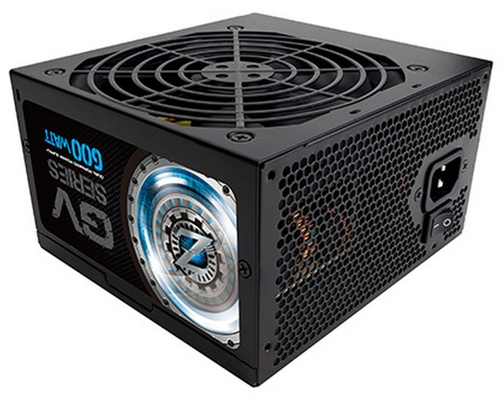

- Zalman ZM700-GV power supply unit vsZalman ZM600-GV power supply unitCompare specs

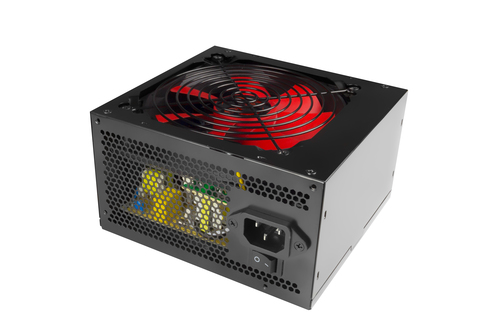

- Zalman ZM700-GV power supply unit vsMars Gaming MP500 power supply unitCompare specs

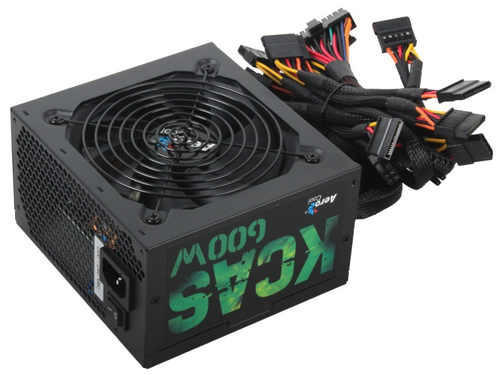

- Zalman ZM700-GV power supply unit vsAerocool KCAS power supply unitCompare specs
