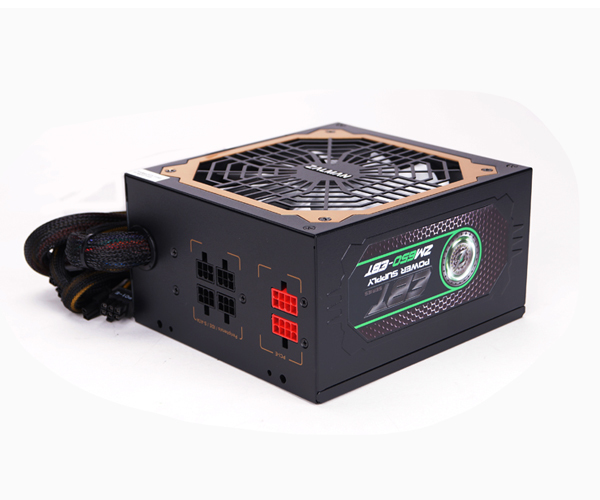

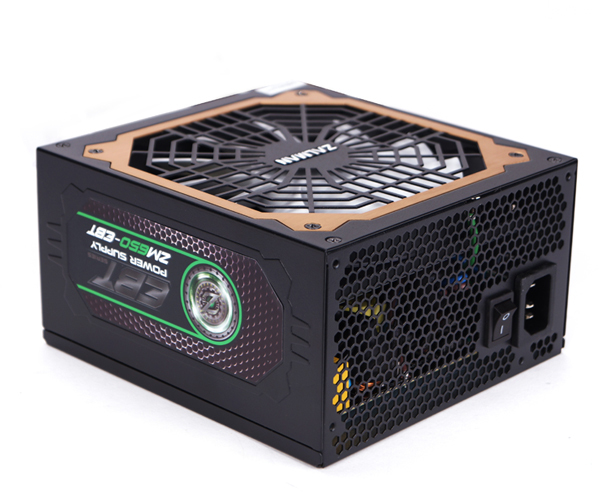

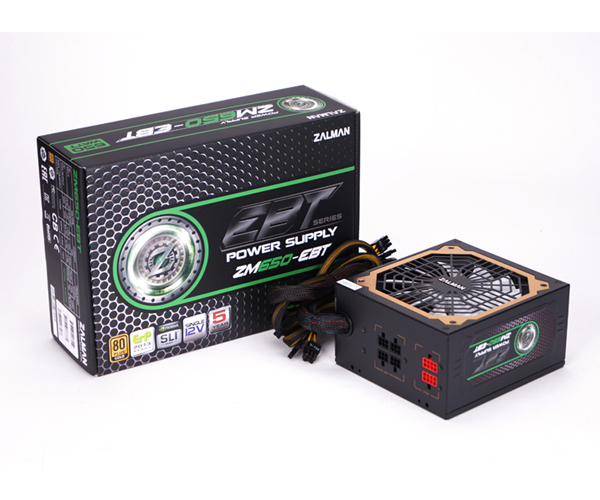

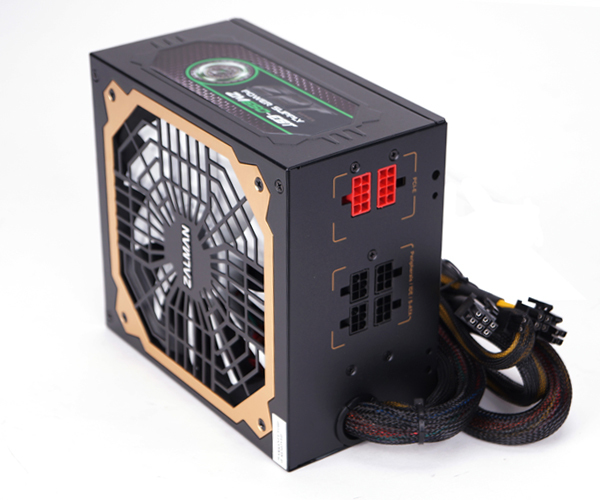

Zalman ZM650-EBT power supply unit
650 W ATX Black
Model ZM650-EBTEAN 823884207552
39 specifications
- Weight2.4 kg
- ColourBlack
- Total power650 W
- Number of SATA power connectors2
- PurposePC
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 2.4 kg
- Colour
- Black
- Total power
- 650 W
- Number of SATA power connectors
- 2
- Purpose
- PC
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Zalman
- Category
- Power Supply Unit
- Model
- ZM650-EBT
- Part number
- ZM650-EBT
- EAN / UPC
- 823884207552, 8809213767784
- Also known as
- Zalman ZM650-EBT power supply unit 650 W ATX Black
Specifications
39 specifications in 9 groups
Power
| Specification | Value |
|---|---|
| Total power | 650 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 10 A |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 650 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 54.2 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 92% |
| Power protection features | Over current, Over voltage, Overheating, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Number of SATA power connectors | 2 |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| Floppy disk drive connector | Yes |
| PCI Express connector | Yes |
| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 2.3 |
| EPS version | 2.92 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| On/off switch | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Certificates
| Specification | Value |
|---|---|
| Certification | NRTL, FCC, CB, CE, TUV, KC, EAC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
| Weight | 2.4 kg |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
