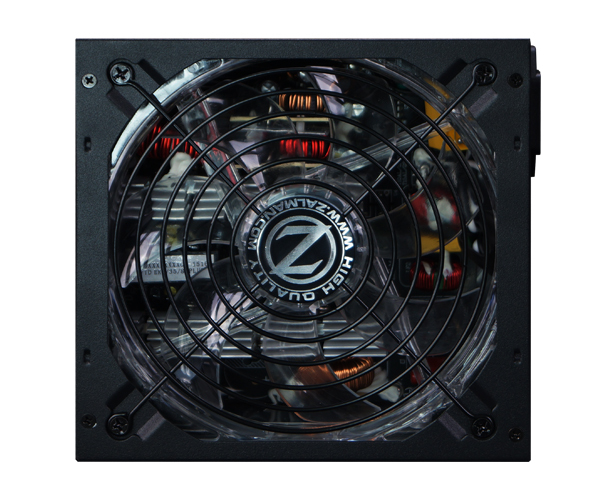

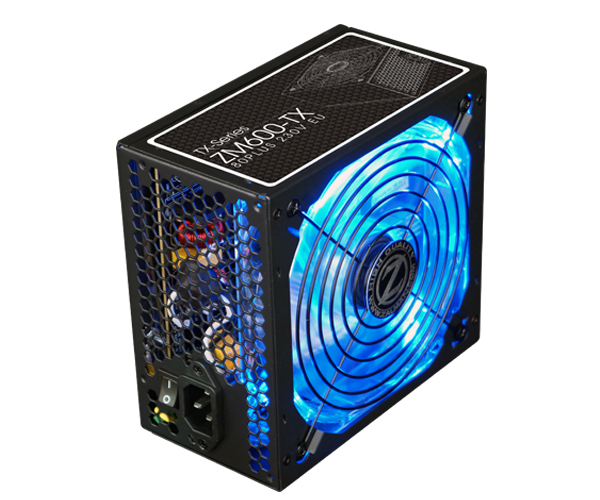

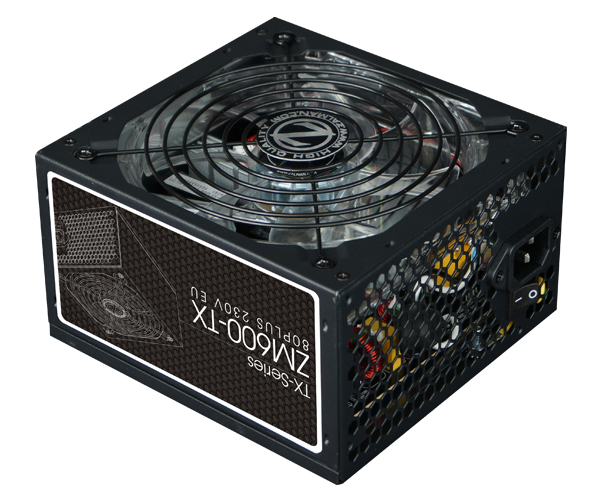

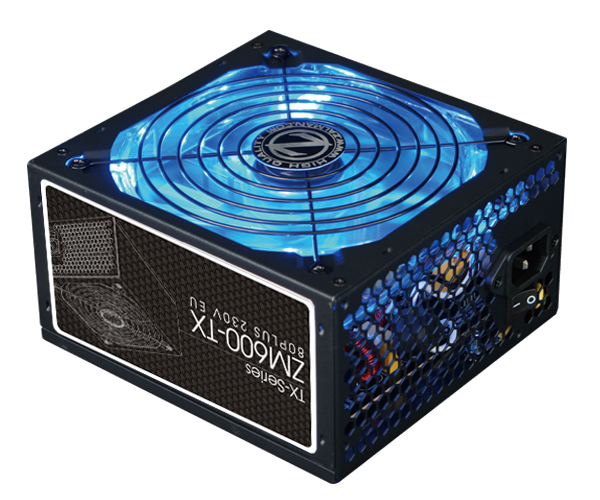

Zalman ZM600-TX power supply unit
600 W Black
Model ZM600-TXEAN 8809213768279
35 specifications
- Weight2.1 kg
- ColourBlack
- Total power600 W
- Cabling typeNon-Modular
- PurposePC
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 2.1 kg
- Colour
- Black
- Total power
- 600 W
- Cabling type
- Non-Modular
- Purpose
- PC
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Zalman
- Category
- Power Supply Unit
- Model
- ZM600-TX
- Part number
- ZM600-TX
- EAN / UPC
- 8809213768279
- Also known as
- Zalman ZM600-TX power supply unit 600 W Black
Specifications
35 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 600 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 576 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 0.3 W |
| Combined power (+5Vsb) | 2.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 58 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 3.6 A |
| Max output current (+5Vsb) | 12.5 A |
| Efficiency | 86% |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| 80 PLUS certification | 80 PLUS |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
| Illumination | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CB, CE, CCC, KC, EAC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 157 mm |
| Height | 86 mm |
| Weight | 2.1 kg |
Other features
| Specification | Value |
|---|---|
| Voltage tolerance | 98% |
| Illumination colour | Blue |
