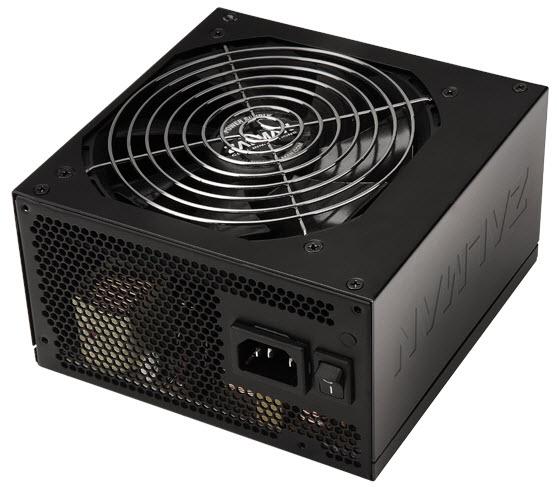

Zalman ZM600-RS power supply unit
600 W ATX Black
Model ZM600-RSPart no. ZM-600RSEAN 8809213761300
23 specifications
- ColourBlack
- Total power600 W
- Number of SATA power connectors2
- Power supply unit (PSU) form factorATX
- Operating temperature (T-T)10 - 40 °C
- SafetyFCC, CE, CB
Overview
- Colour
- Black
- Total power
- 600 W
- Number of SATA power connectors
- 2
- Power supply unit (PSU) form factor
- ATX
- Operating temperature (T-T)
- 10 - 40 °C
- Safety
- FCC, CE, CB
- Brand
- Zalman
- Category
- Power Supply Unit
- Model
- ZM600-RS
- Part number
- ZM-600RS
- EAN / UPC
- 8809213761300
- Also known as
- Zalman ZM600-RS power supply unit 600 W ATX Black
Specifications
23 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 600 W |
| Input current | 6 - 11 A |
| Efficiency | 87% |
| Power protection features | Over current, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Number of SATA power connectors | 2 |
| Peripheral (Molex) power connectors (4-pin) | 7 |
| PCI Express power connectors (6-pin) | 1 |
| PCI Express power connectors (8-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| ATX Power connector (20-pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Power supply unit (PSU) form factor | ATX |
| Compatible products | PC |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 40 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Safety regulation & standards
| Specification | Value |
|---|---|
| Safety | FCC, CE, CB |
Certificates
| Specification | Value |
|---|---|
| Certification | 80 PLUS Bronze, NVIDIA SLI |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 150 x 140 x 86 mm |
