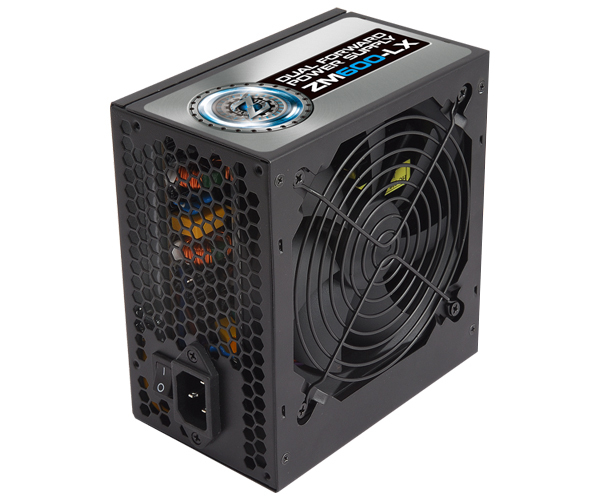

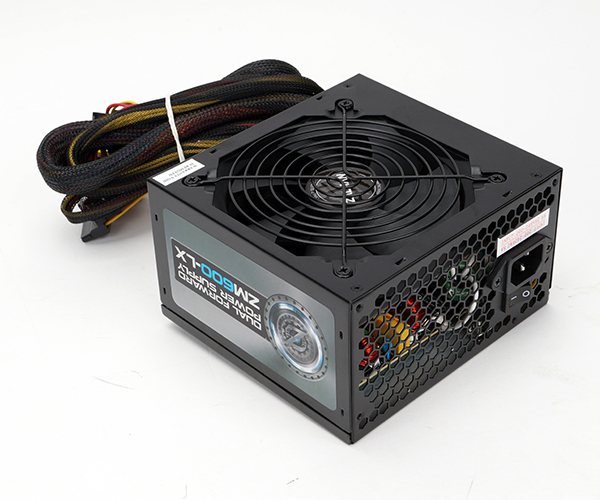

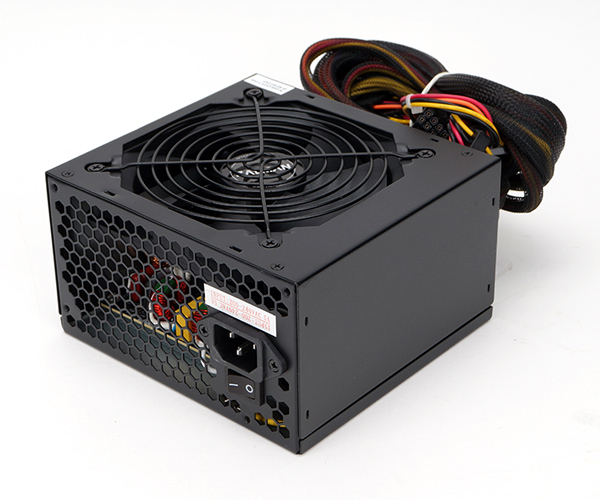

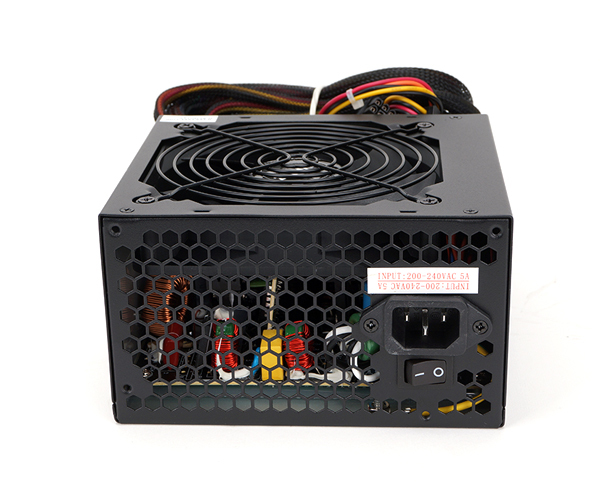

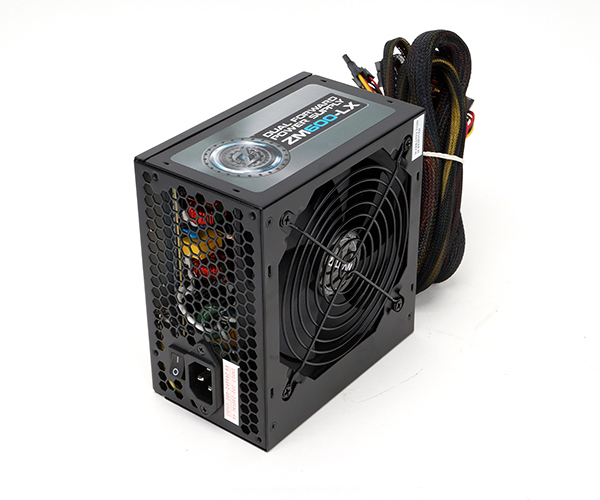

Zalman ZM600-LX power supply unit
600 W ATX Black
Model ZM600-LXEAN 823884204575
43 specifications
- Weight1.95 kg
- ColourBlack
- Total power600 W
- Number of SATA power connectors2
- PurposePC
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 1.95 kg
- Colour
- Black
- Total power
- 600 W
- Number of SATA power connectors
- 2
- Purpose
- PC
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Zalman
- Category
- Power Supply Unit
- Model
- ZM600-LX
- Part number
- ZM600-LX
- EAN / UPC
- 823884204575, 8809213764813
- Also known as
- Zalman ZM600-LX power supply unit 600 W ATX Black
Specifications
43 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 600 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 6 A |
| Maximum input current (@110V) | +12V,+3.3V,+5Vsb |
| Power factor | 0.99 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 540 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 10 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V) | 45 A |
| Max output current (+5V) | 16 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2 A |
| Efficiency | 84% |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Number of SATA power connectors | 2 |
| PCI Express connector | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.31 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Illumination | No |
| On/off switch | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CB, CE, KC, CCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 1.95 kg |
Other features
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
