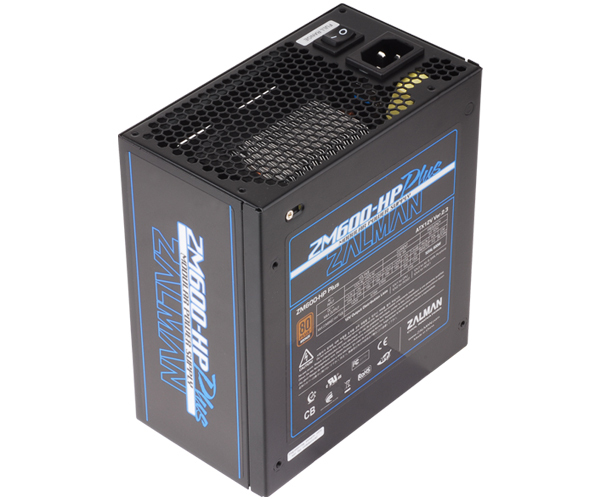

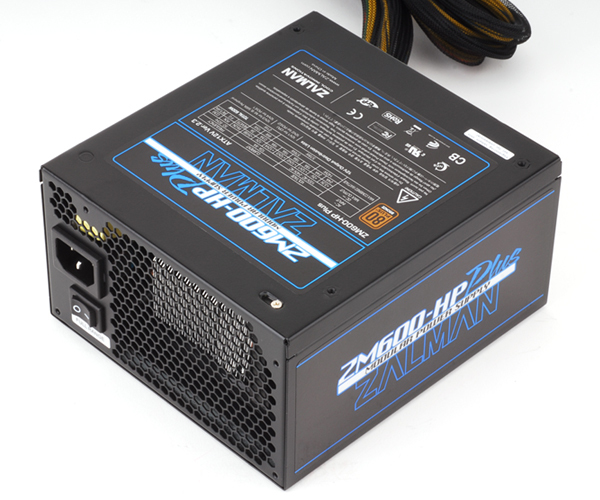

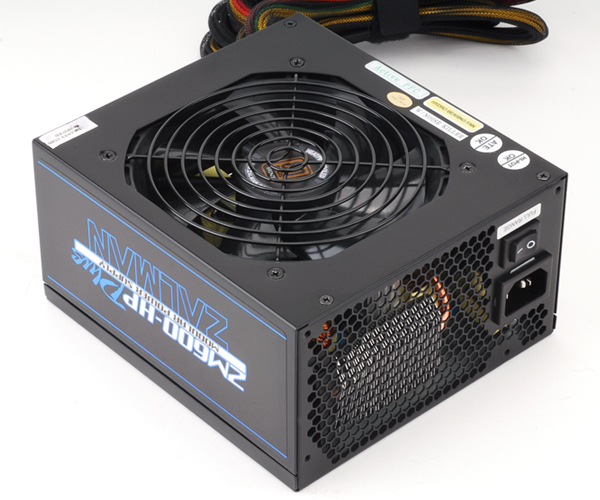

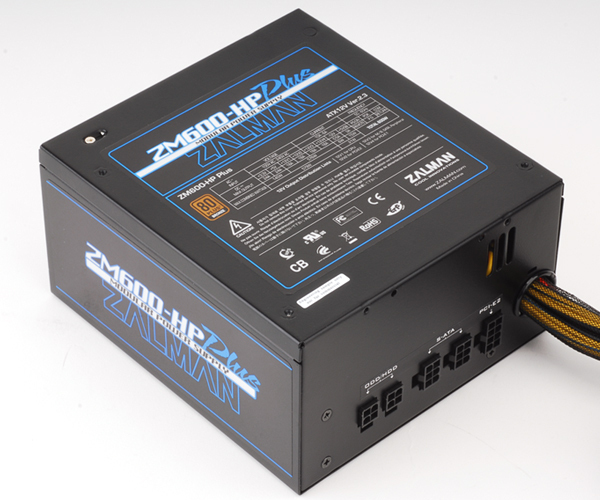

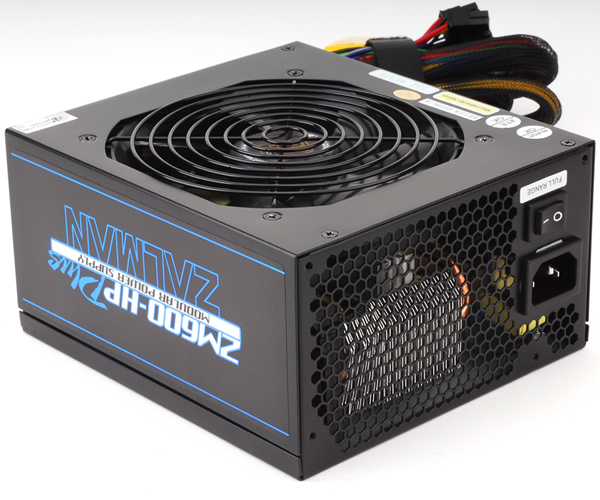

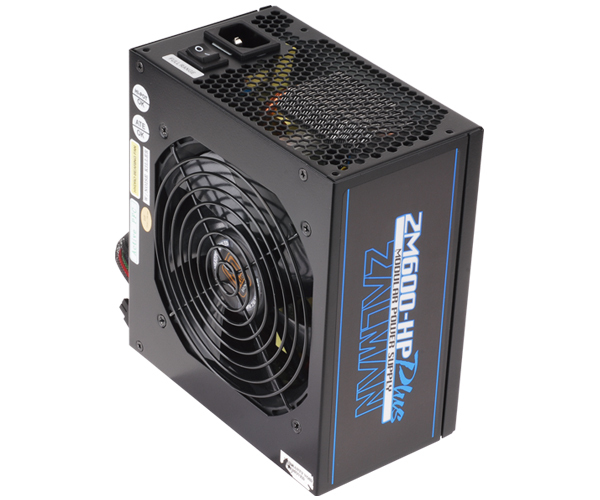

Zalman ZM600-HP Plus

Zalman ZM600-HP Plus

Model ZM600-HP PlusPart no. ZM600-HP PLUSEAN 8809213760723

50 specifications
  • Weight2.8 kg
  • ColourBlack
  • Total power600 W
  • Motherboard power connector20+4 pin ATX
  • PurposePC
  • Operating temperature (T-T)10 - 40 °C
See all specifications

Overview

Weight
2.8 kg
Colour
Black
Total power
600 W
Motherboard power connector
20+4 pin ATX
Purpose
PC
Operating temperature (T-T)
10 - 40 °C
Brand
Zalman
Model
ZM600-HP Plus
Part number
ZM600-HP PLUS
EAN / UPC
8809213760723
Also known as
Zalman ZM600-HP Plus power supply unit 600 W 20+4 pin ATX ATX Black

Specifications

50 specifications in 8 groups

Power

Total power600 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current10 A
Maximum input current (@110V)+12V1,+12V2,+12V3,+12V4,+3.3V,+5V,+5Vsb,-12V
Power factor99
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)140 W
Combined power (+12V)576 W
Combined power (+5V)140 W
Combined power (-12V)6 W
Combined power (+5Vsb)15 W
Max output current (+3.3V)24 A
Max output current (+12V1)18 A
Max output current (+12V2)18 A
Max output current (+12V3)18 A
Max output current (+12V4)18 A
Max output current (+5V)24 A
Max output current (-12V)0.5 A
Max output current (+5Vsb)3 A
Efficiency88%
Power protection featuresOver current, Over voltage, Overheating, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector20+4 pin ATX
Number of SATA power connectors2
Peripheral (Molex) power connectors (4-pin)2
PCI Express power connectors (6-pin)1
PCI Express power connectors (6+2 pin)1
CPU P4 connector (4-pin)1
CPU power connector (4+4 pin)Yes
Floppy drive power connector1
Cabling typeSemi-Modular

Performance

PurposePC
Power supply unit (PSU) form factorATX
80 PLUS certification80 PLUS Bronze
ATX version2.3

Design

Product colourBlack
Cooling typeActive
Fan diameter12 cm
Number of fans1 fan(s)

Operational conditions

Operating temperature (T-T)10 - 40 °C
Storage temperature (T-T)-20 - 80 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%

Certificates

Compliance certificatesRoHS
CertificationFCC, CE, CB, CNPS, ErP

Weight & dimensions

Width150 mm
Depth165 mm
Height86 mm
Weight2.8 kg

Other features

Parallel processing technology support2-Way SLI
