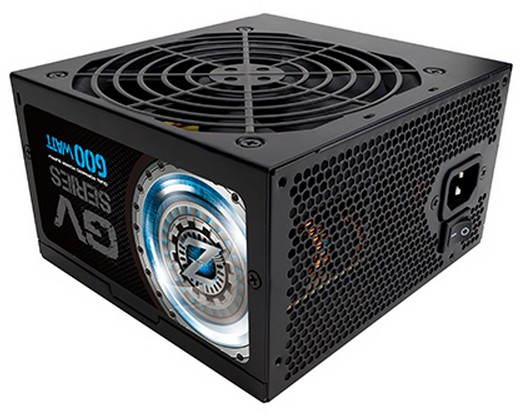

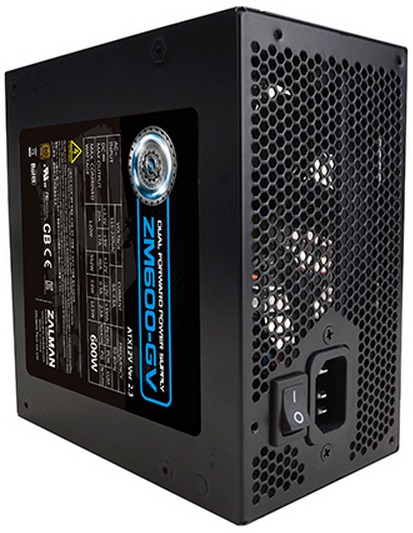

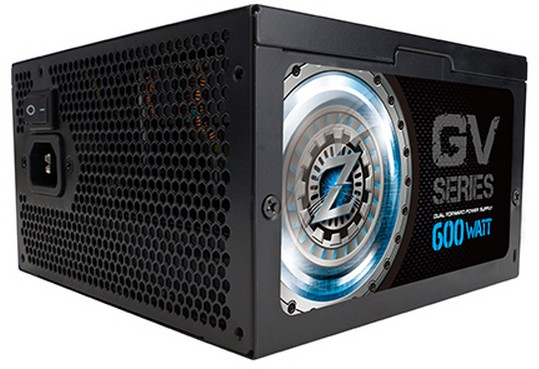

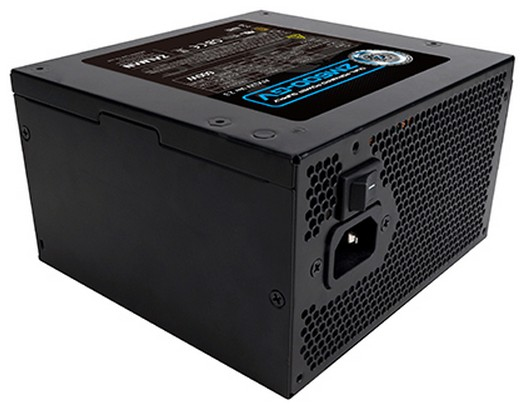

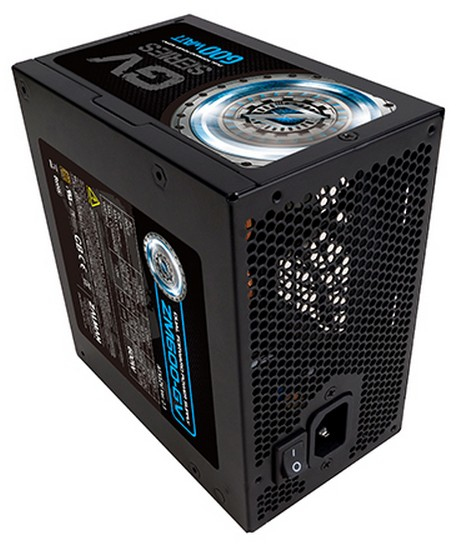

Zalman ZM600-GV power supply unit
600 W 20+4 pin ATX ATX Black
Model ZM600-GVEAN 8809213766053
42 specifications
- Weight2.05 kg
- ColourBlack
- Total power600 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Operating temperature (T-T)0 - 35 °C
Overview
- Weight
- 2.05 kg
- Colour
- Black
- Total power
- 600 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Operating temperature (T-T)
- 0 - 35 °C
- Brand
- Zalman
- Category
- Power Supply Unit
- Model
- ZM600-GV
- Part number
- ZM600-GV
- EAN / UPC
- 8809213766053
- Also known as
- Zalman ZM600-GV power supply unit 600 W 20+4 pin ATX ATX Black
Specifications
42 specifications in 9 groups
Power
| Specification | Value |
|---|---|
| Total power | 600 W |
| AC input voltage | 115 - 230 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 9 A |
| Maximum input current (@110V) | +12V,+3.3V,+5V,+5Vsb,-12V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 552 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 46 A |
| Max output current (+5V) | 17 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 88% |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| CPU P4 connector (4-pin) | 1 |
| CPU power connectors (8-pin) | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 2.05 kg |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| Power management | Yes |
