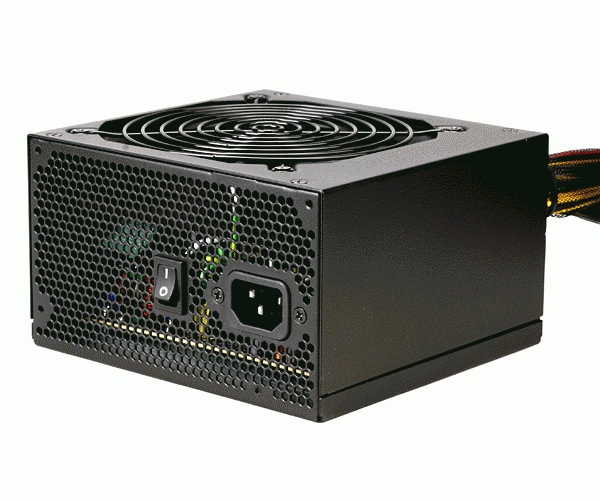

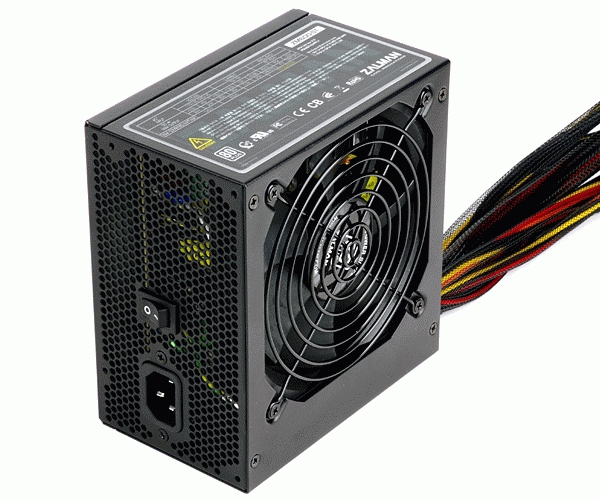

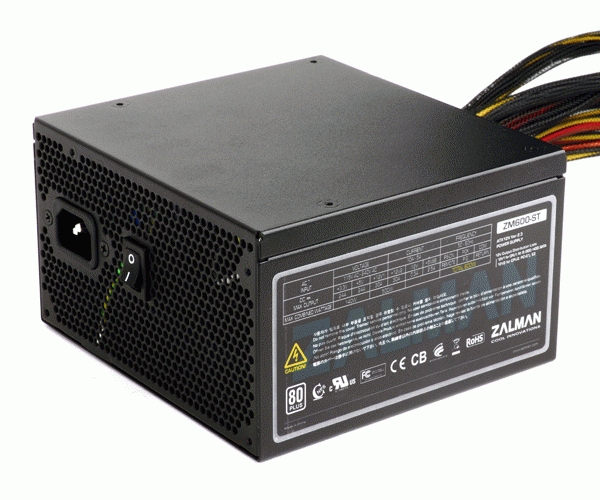

Zalman ZM500-ST power supply unit
500 W ATX
Model ZM500-STEAN 823884201048
17 specifications
- Total power500 W
- Number of SATA power connectors6
- Power supply unit (PSU) form factorATX
- Operating temperature (T-T)0 - 40 °C
Overview
- Total power
- 500 W
- Number of SATA power connectors
- 6
- Power supply unit (PSU) form factor
- ATX
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Zalman
- Category
- Power Supply Unit
- Model
- ZM500-ST
- Part number
- ZM500-ST
- EAN / UPC
- 823884201048, 8809213761393
- Also known as
- Zalman ZM500-ST power supply unit 500 W ATX
Specifications
17 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 100 - 240 V |
| Input current | 5 - 10 A |
| Efficiency | 86% |
| Power protection features | Overload, Short circuit |

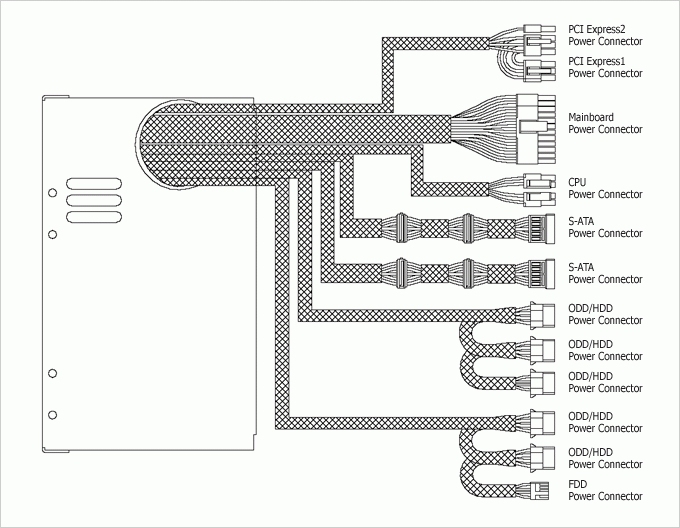

Ports & interfaces
| Specification | Value |
|---|---|
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | Yes |
| PCI Express power connectors (6-pin) | Yes |
| ATX Power connector (24-pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Power supply unit (PSU) form factor | ATX |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 150 x 140 x 86 mm |
