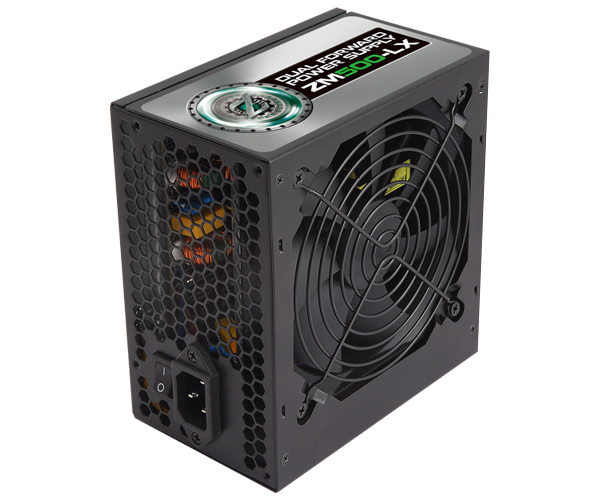

Zalman ZM500-LX power supply unit
500 W Black
Model ZM500-LXEAN 823884204568
29 specifications
- Weight1.9 kg
- ColourBlack
- Total power500 W
- Number of SATA power connectors2
- PurposePC
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 1.9 kg
- Colour
- Black
- Total power
- 500 W
- Number of SATA power connectors
- 2
- Purpose
- PC
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Zalman
- Category
- Power Supply Unit
- Model
- ZM500-LX
- Part number
- ZM500-LX
- EAN / UPC
- 823884204568, 8809213764806
- Also known as
- Zalman ZM500-LX power supply unit 500 W Black
Specifications
29 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum input current (@110V) | +12V,+3.3V,+5V,-12V,-5V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 444 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 10 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V) | 40 A |
| Max output current (+5V) | 15 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Number of SATA power connectors | 2 |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 1.9 kg |
