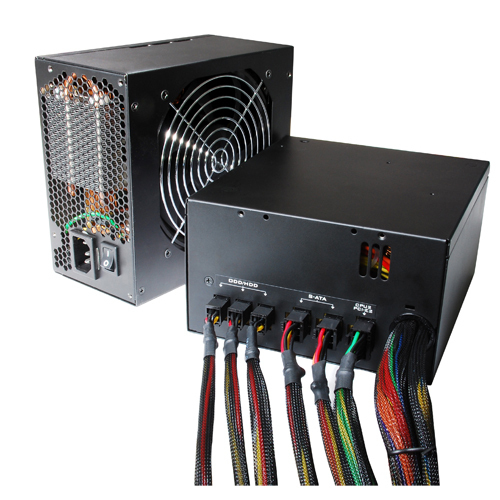

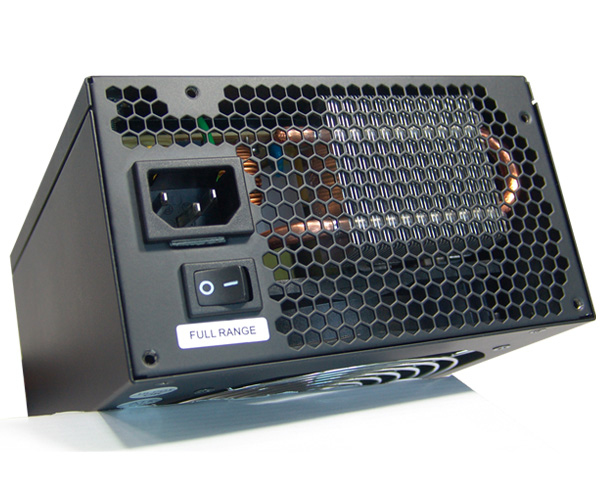

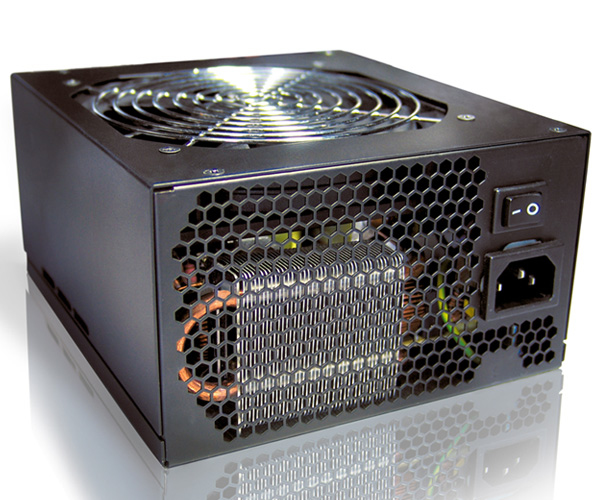

ZM500-HP power supply unit
500 W ATX Black
Model ZM500-HPEAN 823884005035
10 specifications
- ColourBlack
- Total power500 W
- Number of SATA power connectors2
- Power supply unit (PSU) form factorATX
- Operating relative humidity (H-H)5 - 95%
Overview
- Colour
- Black
- Total power
- 500 W
- Number of SATA power connectors
- 2
- Power supply unit (PSU) form factor
- ATX
- Operating relative humidity (H-H)
- 5 - 95%
- Brand
- Zalman
- Category
- Power Supply Unit
- Model
- ZM500-HP
- Part number
- ZM500-HP
- EAN / UPC
- 823884005035
- Also known as
- Zalman ZM500-HP power supply unit 500 W ATX Black
Specifications
10 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 100 - 240 V |
Ports & interfaces
| Specification | Value |
|---|---|
| Number of SATA power connectors | 2 |
| PCI Express power connectors (6-pin) | Yes |
| ATX Power connector (24-pin) | Yes |
| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Power supply unit (PSU) form factor | ATX |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 86 x 150 x 165 mm |
