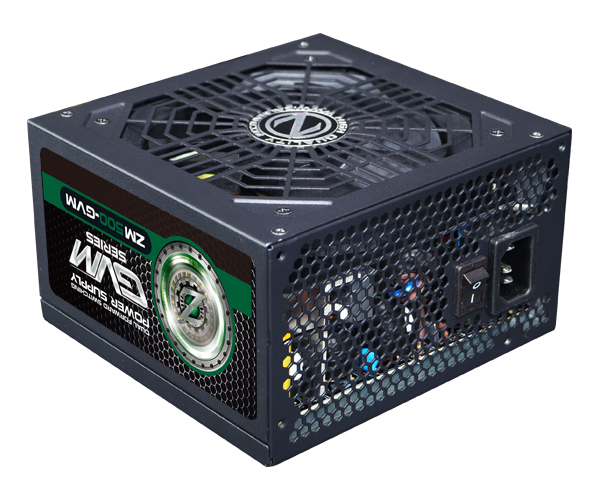

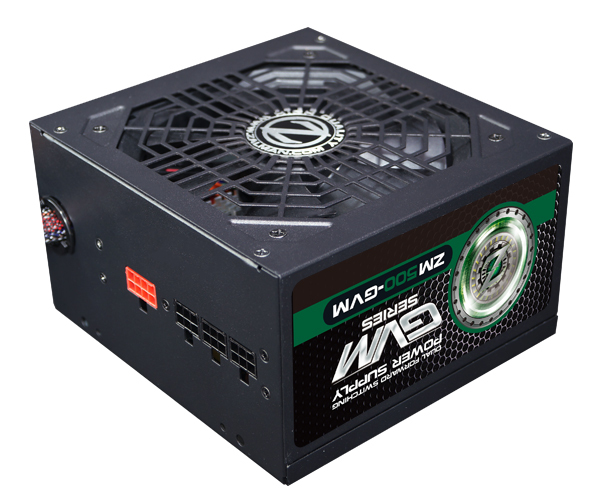

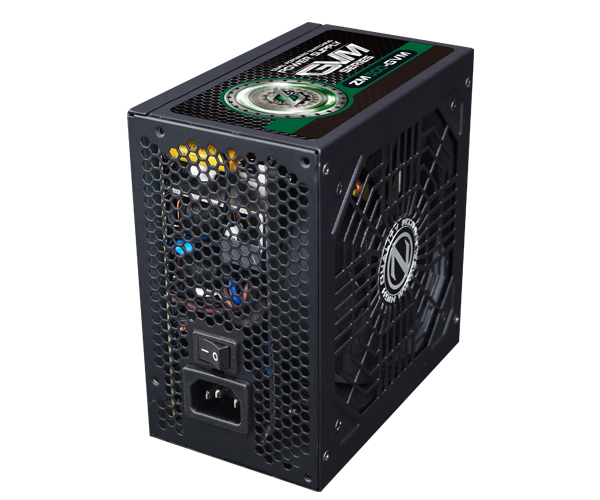

Zalman ZM500-GVM power supply unit
500 W 20+4 pin ATX ATX Black
Model ZM500-GVMEAN 823884208023
41 specifications
- Weight2.35 kg
- ColourBlack
- Total power500 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Operating temperature (T-T)0 - 45 °C
Overview
- Weight
- 2.35 kg
- Colour
- Black
- Total power
- 500 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Operating temperature (T-T)
- 0 - 45 °C
- Brand
- Zalman
- Category
- Power Supply Unit
- Model
- ZM500-GVM
- Part number
- ZM500-GVM
- EAN / UPC
- 823884208023, 8809213768361
- Also known as
- Zalman ZM500-GVM power supply unit 500 W 20+4 pin ATX ATX Black
Specifications
41 specifications in 9 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 115 - 230 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 8 A |
| Combined power (+3.3V) | 103 W |
| Combined power (+12V) | 450 W |
| Combined power (+5V) | 103 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 40 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3.5 A |
| Power protection features | Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Floppy disk drive connector | Yes |
| CPU power connectors (8-pin) | 1 |
| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.31 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Certificates
| Specification | Value |
|---|---|
| Certification | NRTL, FCC, CB, CE, TUV, KC, EAC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 2.35 kg |
Technical details
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
