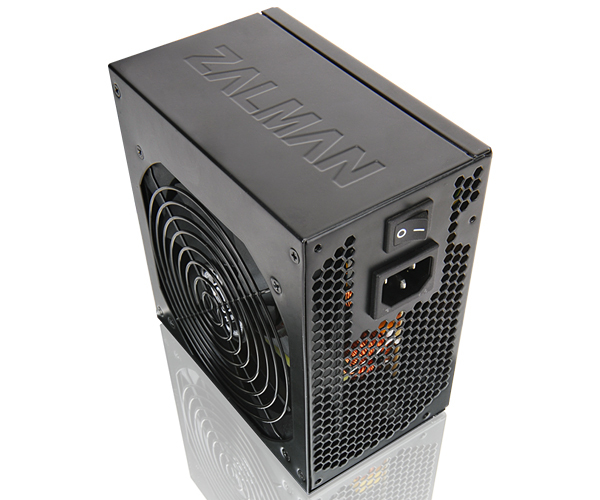

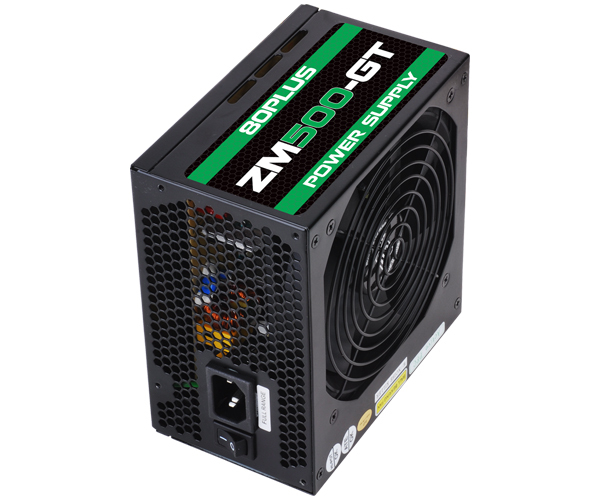

Zalman ZM500-GT power supply unit
500 W 20+4 pin ATX ATX Black
Model ZM500-GTEAN 823884203042
42 specifications
- Weight2.17 kg
- ColourBlack
- Total power500 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 2.17 kg
- Colour
- Black
- Total power
- 500 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Zalman
- Category
- Power Supply Unit
- Model
- ZM500-GT
- Part number
- ZM500-GT
- EAN / UPC
- 823884203042, 8809213763267
- Also known as
- Zalman ZM500-GT power supply unit 500 W 20+4 pin ATX ATX Black
Specifications
42 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power factor | 0.99 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 123 W |
| Combined power (+5V) | 123 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V1) | 18 A |
| Max output current (+12V2) | 18 A |
| Max output current (+5V) | 24 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 87% |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS |
| ATX version | 2.3 |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 2.17 kg |
