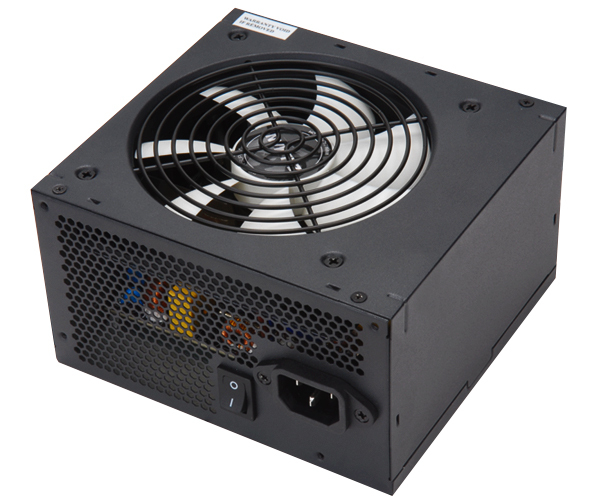

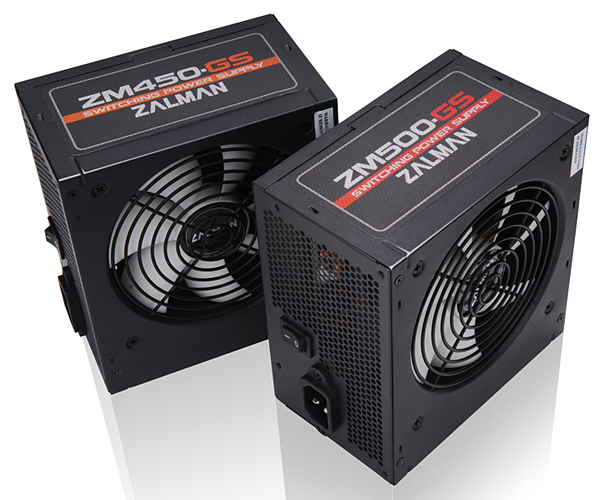

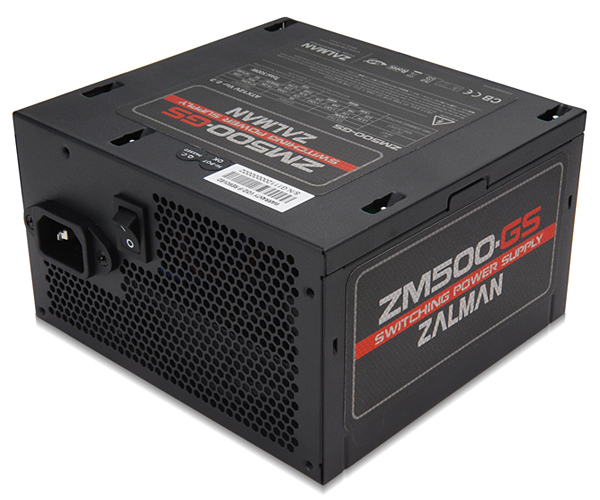

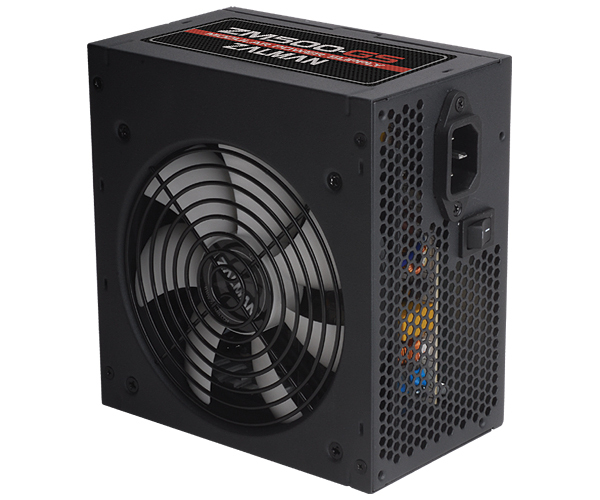

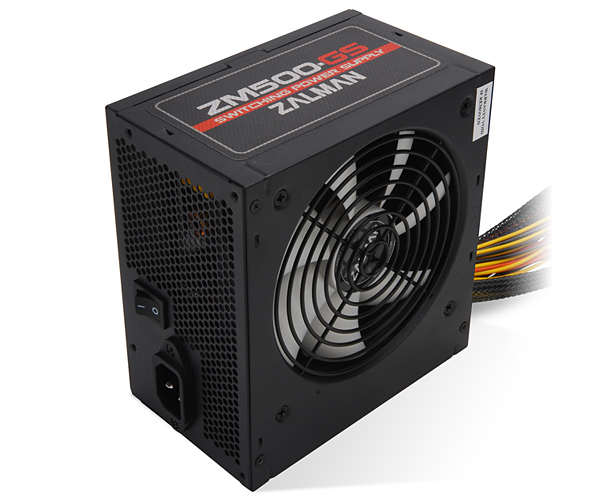

Zalman ZM500-GS power supply unit

Zalman ZM500-GS power supply unit

500 W 20+4 pin ATX ATX Black

Model ZM500-GSEAN 8809213763151

47 specifications
  • Weight1.92 kg
  • ColourBlack
  • Total power500 W
  • Motherboard power connector20+4 pin ATX
  • PurposePC
  • Operating temperature (T-T)0 - 40 °C
See all specifications

Overview

Weight
1.92 kg
Colour
Black
Total power
500 W
Motherboard power connector
20+4 pin ATX
Purpose
PC
Operating temperature (T-T)
0 - 40 °C
Brand
Zalman
Model
ZM500-GS
Part number
ZM500-GS
EAN / UPC
8809213763151
Also known as
Zalman ZM500-GS power supply unit 500 W 20+4 pin ATX ATX Black

Specifications

47 specifications in 7 groups

Power

Total power500 W
AC input voltage115 - 230 V
AC input frequency50 - 60 Hz
Input current4 A
Maximum input current (@110V)+12V1,+12V2,+3.3V,+5V,+5Vsb,-12V
Power factor99
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)130 W
Combined power (+12V)406 W
Combined power (+5V)130 W
Combined power (-12V)3.6 W
Combined power (+5Vsb)12.5 W
Max output current (+3.3V)22 A
Max output current (+12V1)27 A
Max output current (+12V2)23 A
Max output current (+5V)19 A
Max output current (-12V)0.3 A
Max output current (+5Vsb)3 A
Efficiency84%
Power protection featuresOver power, Over voltage, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector20+4 pin ATX
Number of PATA power connectors4
Number of SATA power connectors3
PCI Express power connectors (6-pin)1
PCI Express power connectors (6+2 pin)1
CPU power connector (4+4 pin)Yes
Floppy drive power connector1
Cabling typeNon-Modular

Performance

PurposePC
Power supply unit (PSU) form factorATX
ATX version2.3

Design

Product colourBlack
Cooling typeActive
Fan diameter12 cm
Number of fans1 fan(s)
Fan locationTop
On/off switchYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)20 - 90%
Storage relative humidity (H-H)5 - 95%

Certificates

Compliance certificatesRoHS
CertificationWEEE

Weight & dimensions

Width150 mm
Depth140 mm
Height86 mm
Weight1.92 kg
