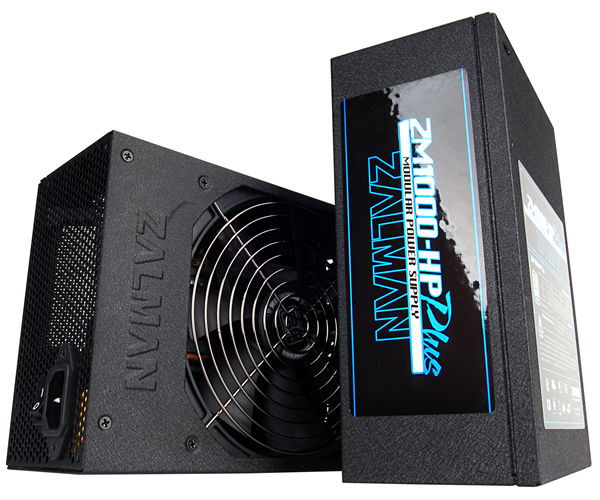

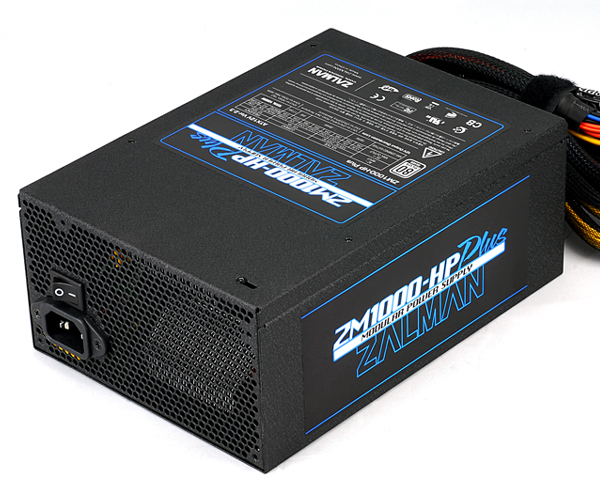

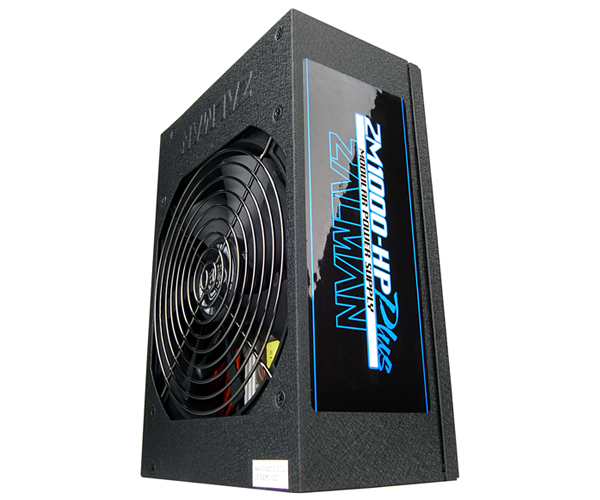

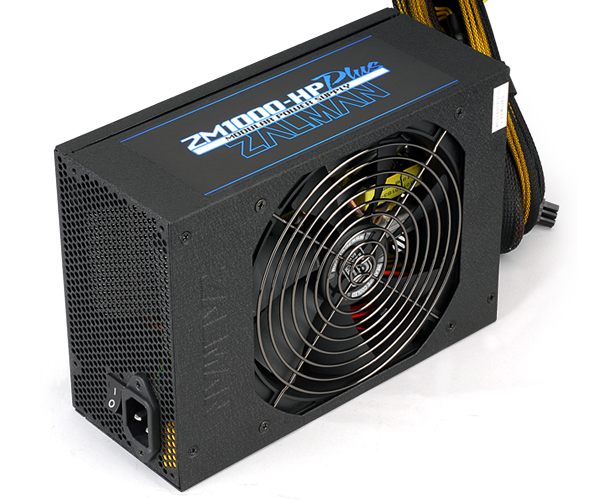

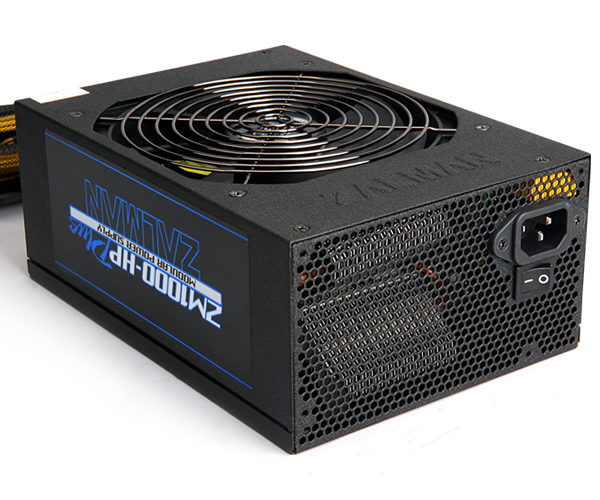

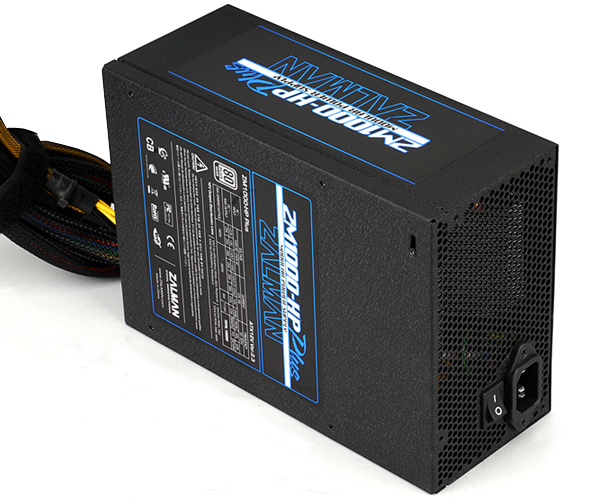

Zalman ZM1000-HP PLUS

Zalman ZM1000-HP PLUS

Model ZM1000-HP PLUSEAN 8809213761911

44 specifications
  • Weight4 kg
  • ColourBlack
  • Total power1000 W
  • Motherboard power connector20+4 pin ATX
  • PurposePC
  • Operating temperature (T-T)0 - 40 °C
See all specifications

Overview

Weight
4 kg
Colour
Black
Total power
1000 W
Motherboard power connector
20+4 pin ATX
Purpose
PC
Operating temperature (T-T)
0 - 40 °C
Brand
Zalman
Model
ZM1000-HP PLUS
Part number
ZM1000-HP PLUS
EAN / UPC
8809213761911
Also known as
Zalman ZM1000-HP PLUS power supply unit 1000 W 20+4 pin ATX ATX Black

Specifications

44 specifications in 9 groups

Power

Total power1000 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current6 - 12 A
Maximum input current (@110V)+12V1,+12V2,+12V3,+12V4,+3.3V,+5V,+5Vsb,-12V
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)180 W
Combined power (+12V)984 W
Combined power (+5V)180 W
Combined power (-12V)6 W
Combined power (+5Vsb)17.5 W
Max output current (+3.3V)25 A
Max output current (+12V)27 A
Max output current (+5V)30 A
Max output current (-12V)0.5 A
Max output current (+5Vsb)3.5 A
Efficiency90%
Power protection featuresOver current, Over voltage, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector20+4 pin ATX
Number of SATA power connectors3
EPS power connector (8-pin)Yes
PCI Express power connectors (6-pin)3
PCI Express power connectors (6+2 pin)3
CPU P4 connector (4-pin)1
Cabling typeSemi-Modular

Performance

PurposePC
Power supply unit (PSU) form factorATX
80 PLUS certification80 PLUS Silver
ATX version2.2
Mean time between failures (MTBF)100000 h

Design

Product colourBlack
Fan diameter14 cm
Number of fans1 fan(s)

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 95%

Certificates

Compliance certificatesRoHS

Weight & dimensions

Width150 mm
Depth210 mm
Height86 mm
Weight4 kg

Technical details

Sustainability certificatesENERGY STAR

Other features

Dimensions (WxDxH)150 x 210 x 86 mm
