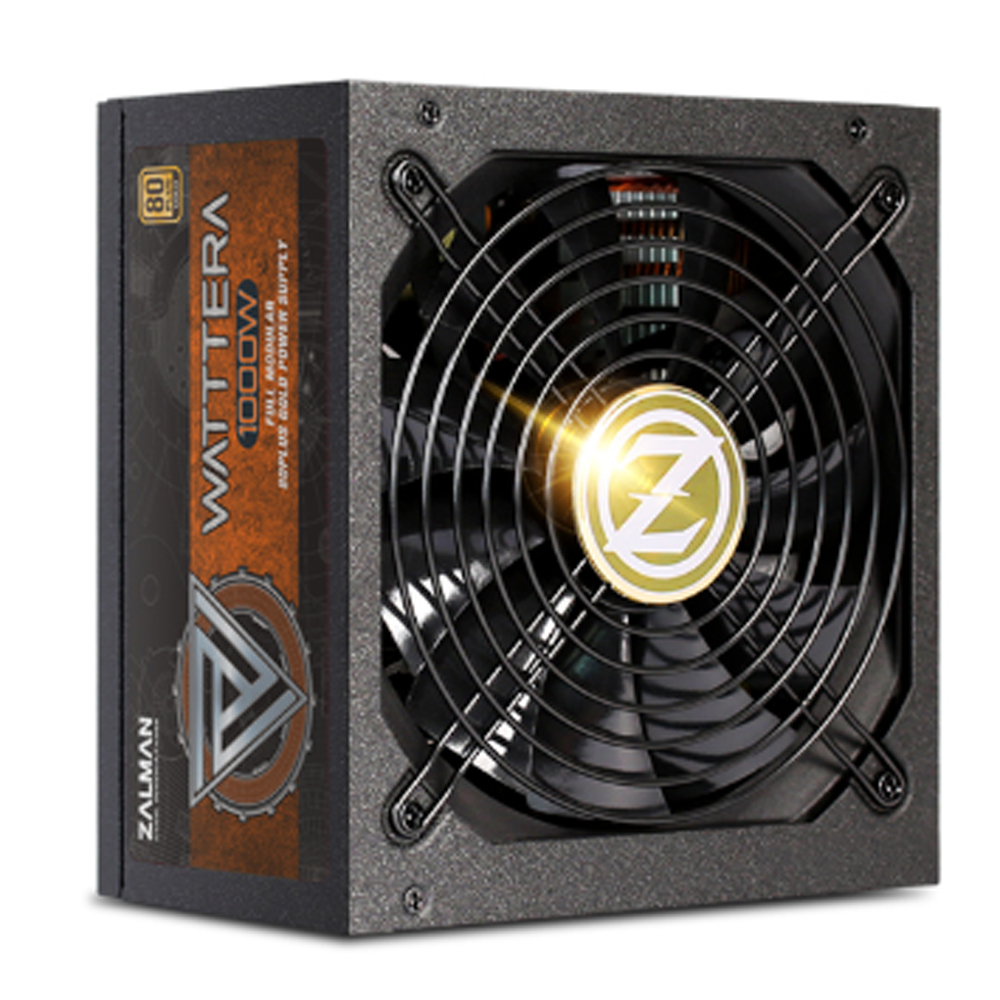

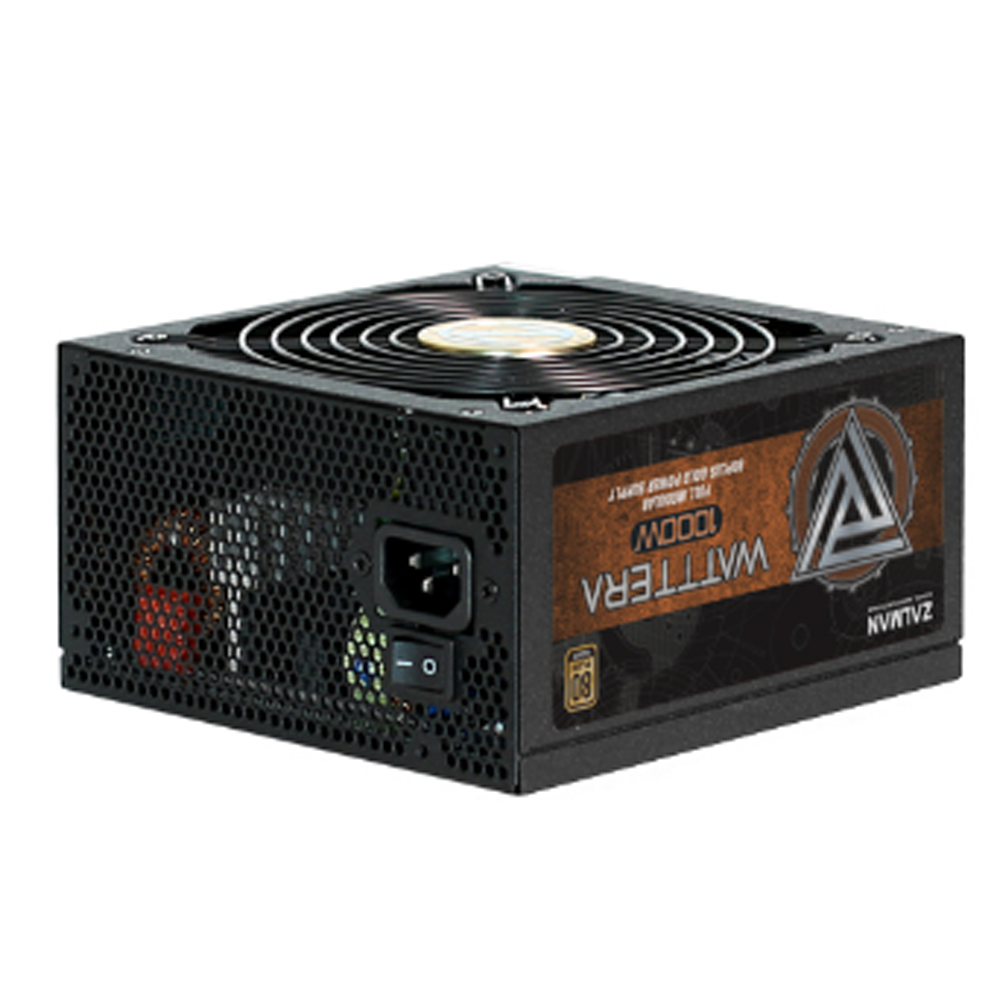

ZM1000-EBTII power supply unit
1000 W 24-pin ATX ATX Black
Model ZM1000-EBTIIEAN 8809213769306
50 specifications
- Weight3.25 kg
- ColourBlack
- Total power1000 W
- Motherboard power connector24-pin ATX
- PurposePC
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 3.25 kg
- Colour
- Black
- Total power
- 1000 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Zalman
- Category
- Power Supply Unit
- Model
- ZM1000-EBTII
- Part number
- ZM1000-EBTII
- EAN / UPC
- 8809213769306
- Also known as
- Zalman ZM1000-EBTII power supply unit 1000 W 24-pin ATX ATX Black
Specifications
50 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 1000 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 5.5 - 11 A |
| Power factor | 99 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+12V) | 996 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 83 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under current |

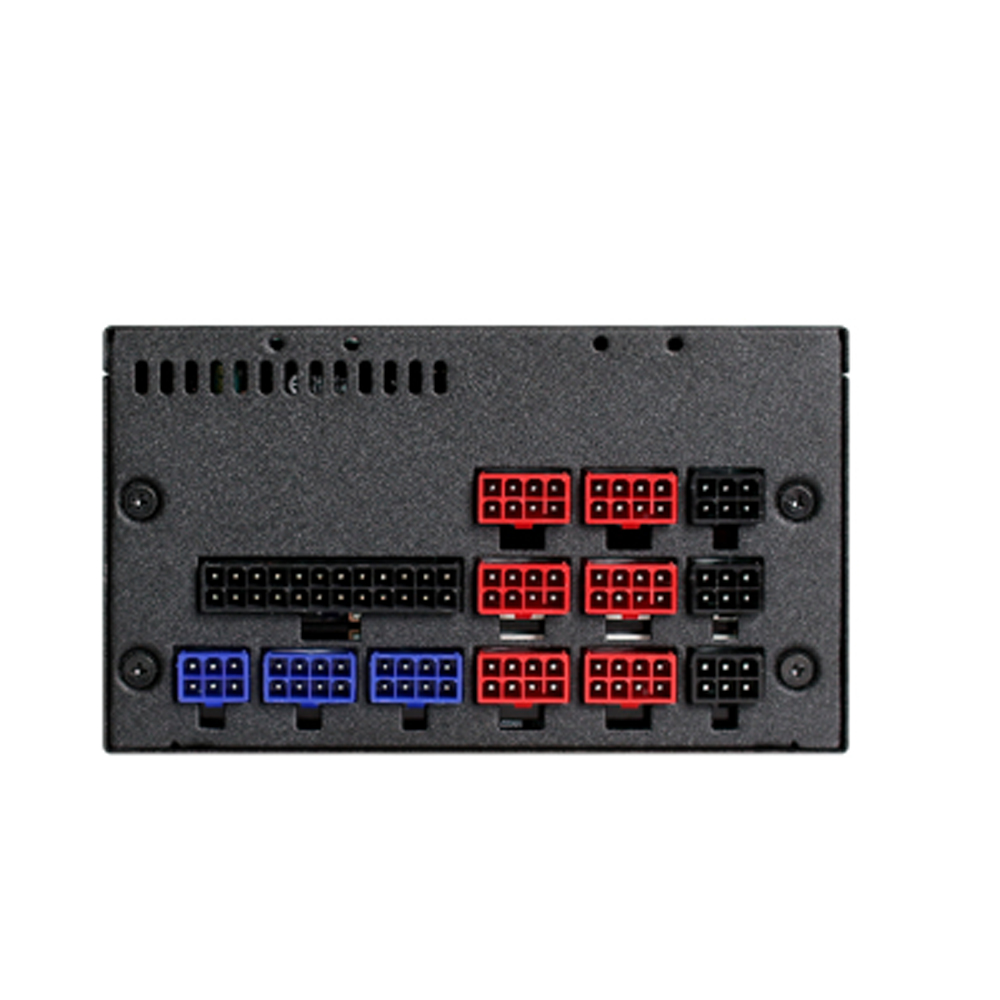

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 8 |
| SATA power cable length | 600 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| EPS power connector (8-pin) | Yes |
| PCI Express power connectors (6+2 pin) | 6 |
| PCI Express power cable length | 55 cm |
| CPU P4 connector (4-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 55 cm |
| ATX Power connector (24-pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 2.31 |
| Silent mode | Yes |
| Bearing technology | Ball bearing |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |

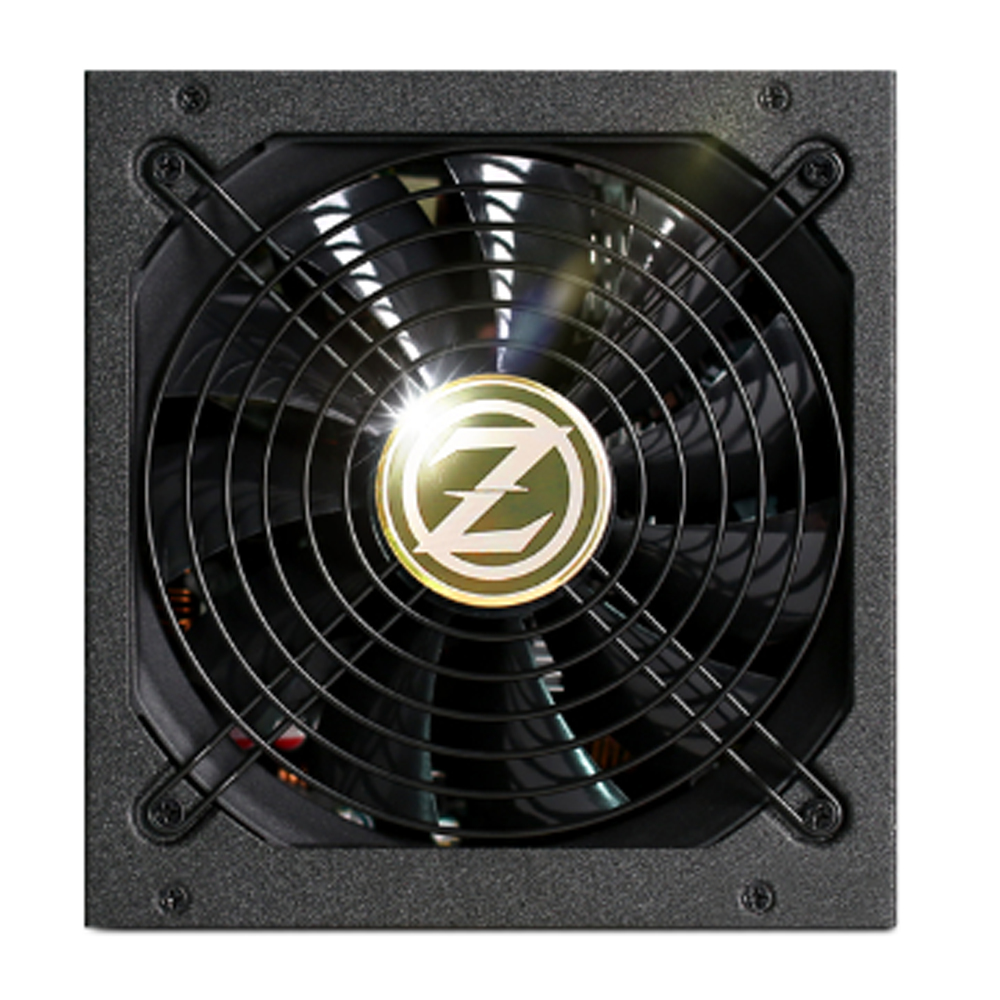

| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | UL, FCC, CB, CE, KC, EAC, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
| Weight | 3.25 kg |
