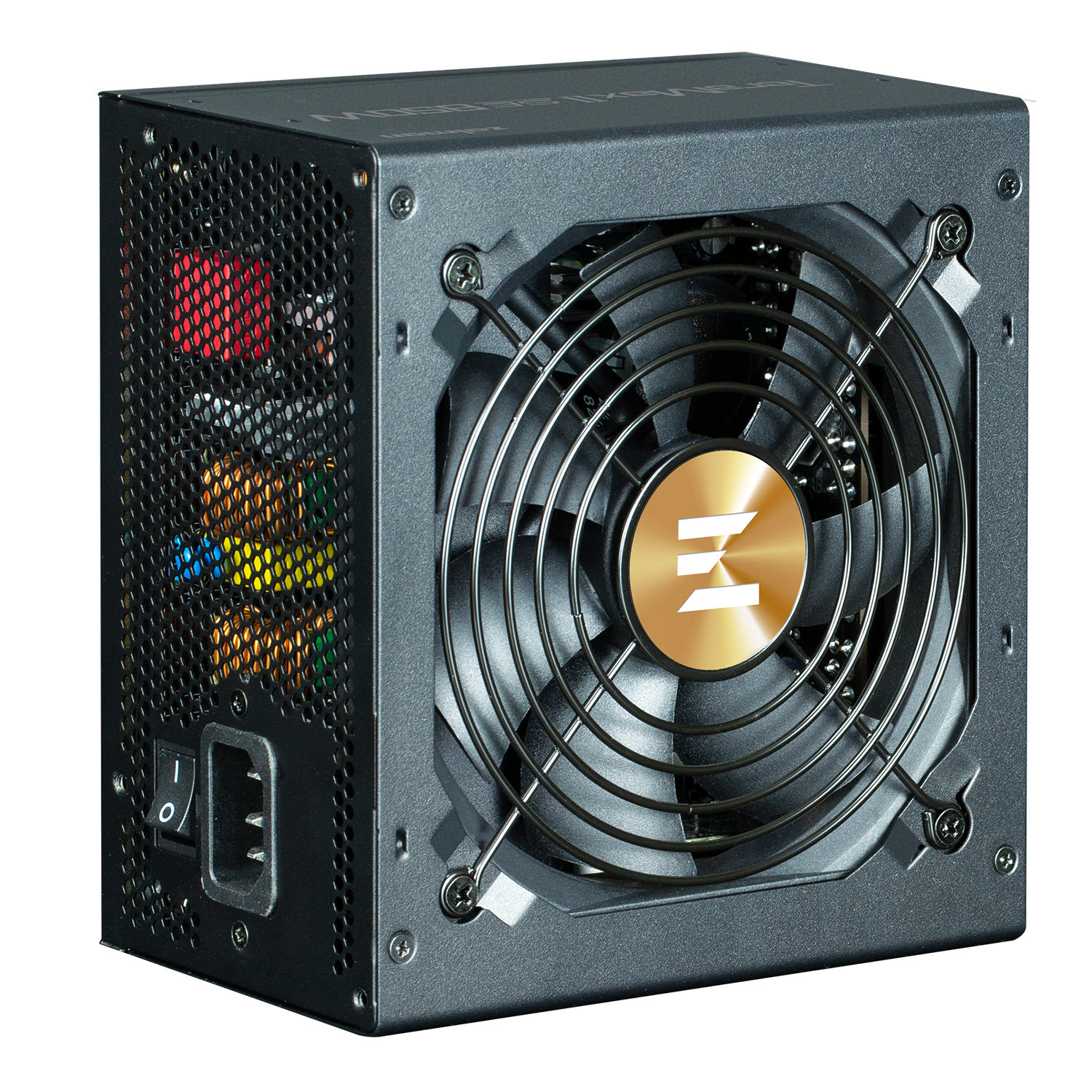

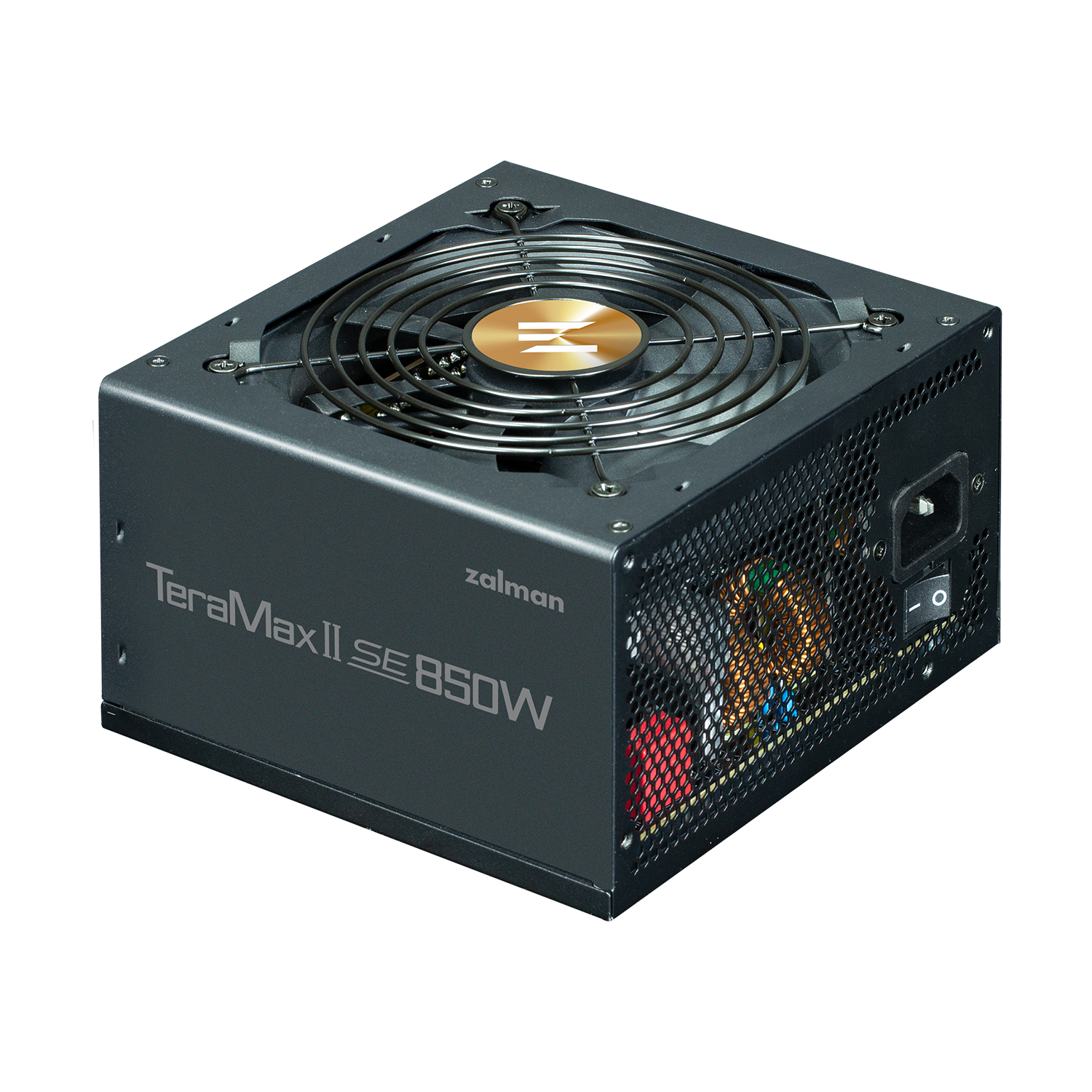

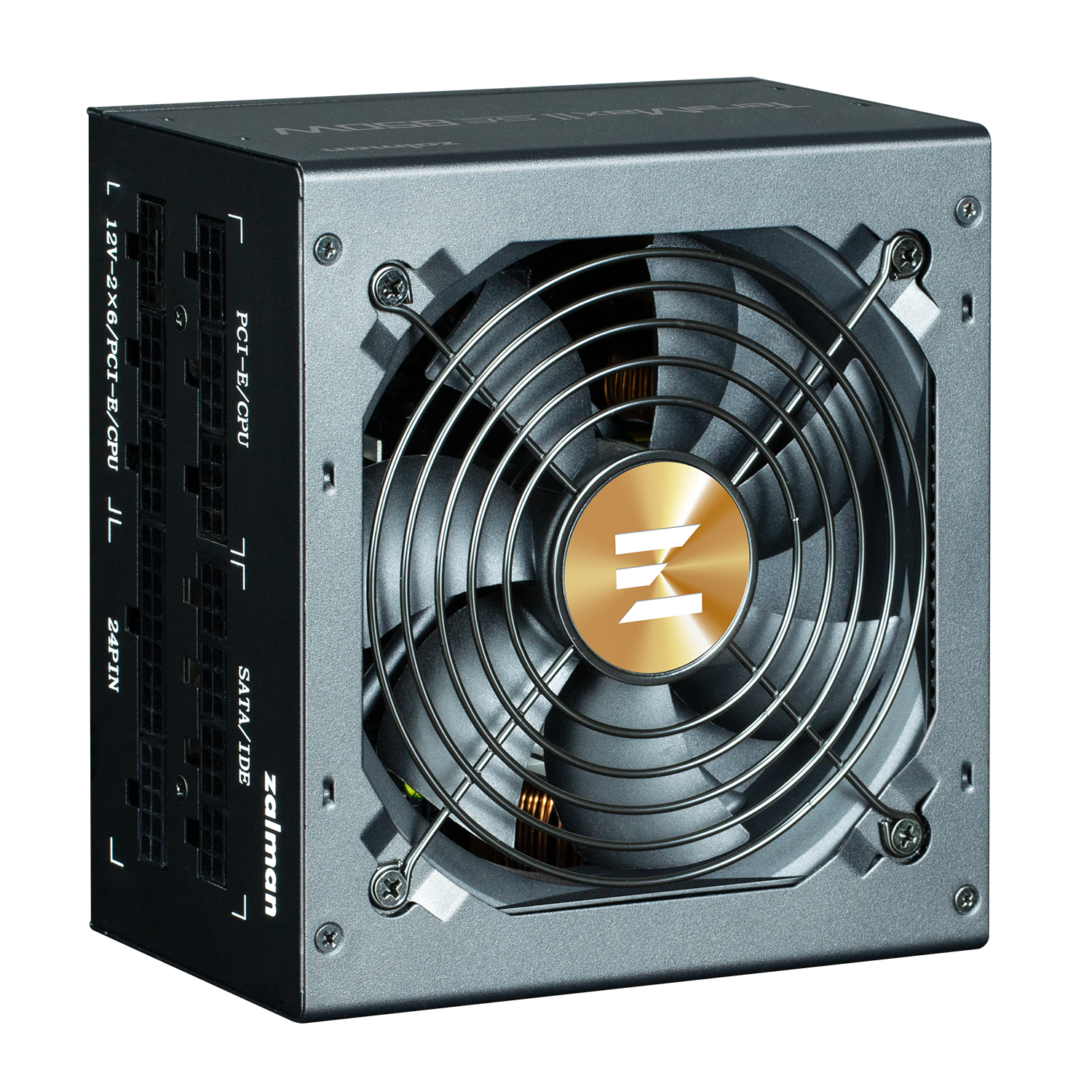

TeramaxII SE
Model TeramaxII SEPart no. ZM850-TMX2SEEAN 8800263650453
36 specifications
- Weight2.6 kg
- ColourBlack
- Total power850 W
- Motherboard power connector18+10 pin ATX
- PurposePC
- Operating temperature (T-T)10 - 40 °C
Overview
- Weight
- 2.6 kg
- Colour
- Black
- Total power
- 850 W
- Motherboard power connector
- 18+10 pin ATX
- Purpose
- PC
- Operating temperature (T-T)
- 10 - 40 °C
- Brand
- Zalman
- Category
- Power Supply Unit
- Model
- TeramaxII SE
- Part numbers
- ZM850-TMX2SE, 8800263650439, ZM1000-TMX2SE
- EAN / UPC
- 8800263650453, 8800263650446, 8800263650439
- Also known as
- Zalman TeramaxII SE power supply unit 850 W 18+10 pin ATX ATX Black
Specifications
36 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 850 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 12-6 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 850 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.83 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |

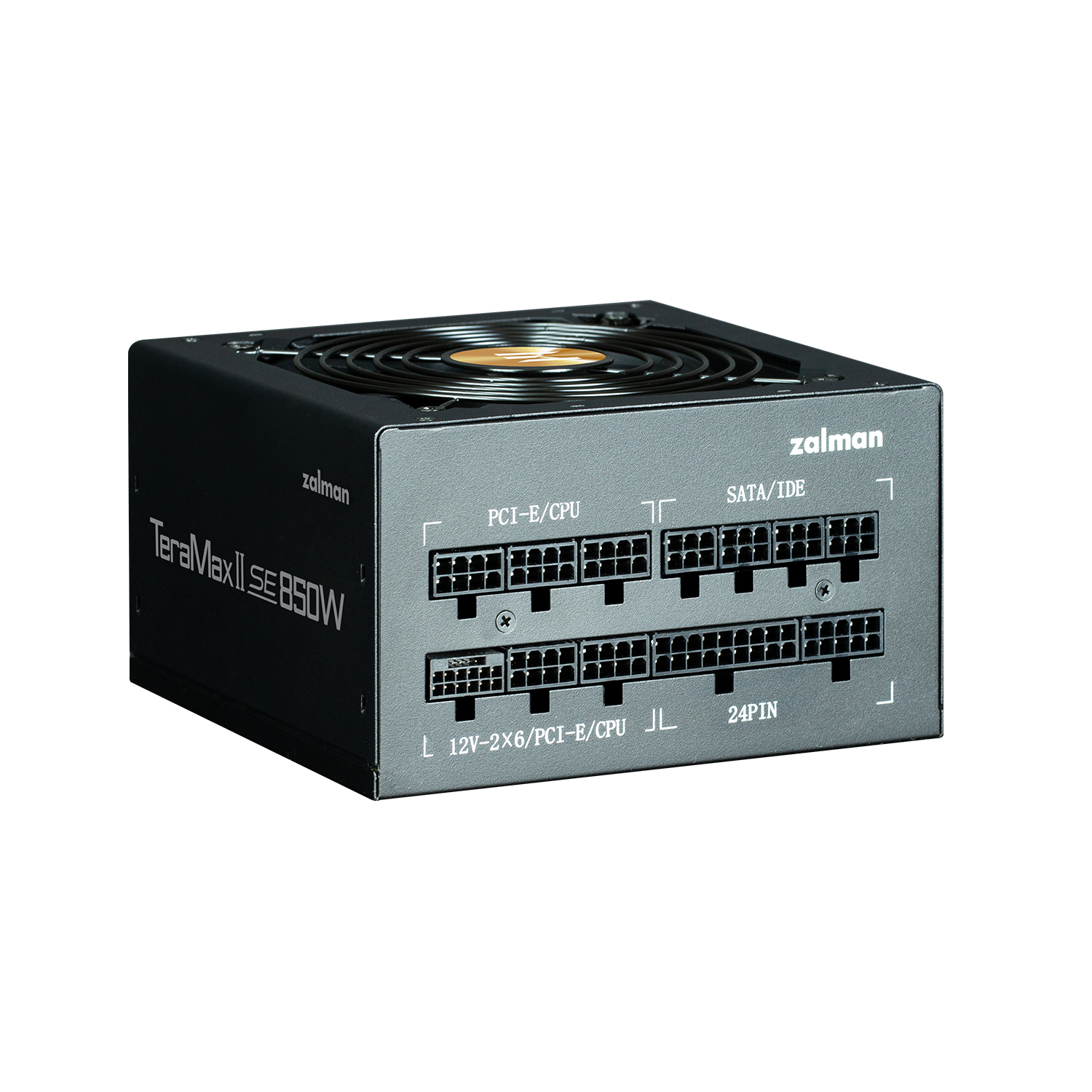

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 18+10 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 3 |
| SATA power cable length | 500 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) | Yes |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |

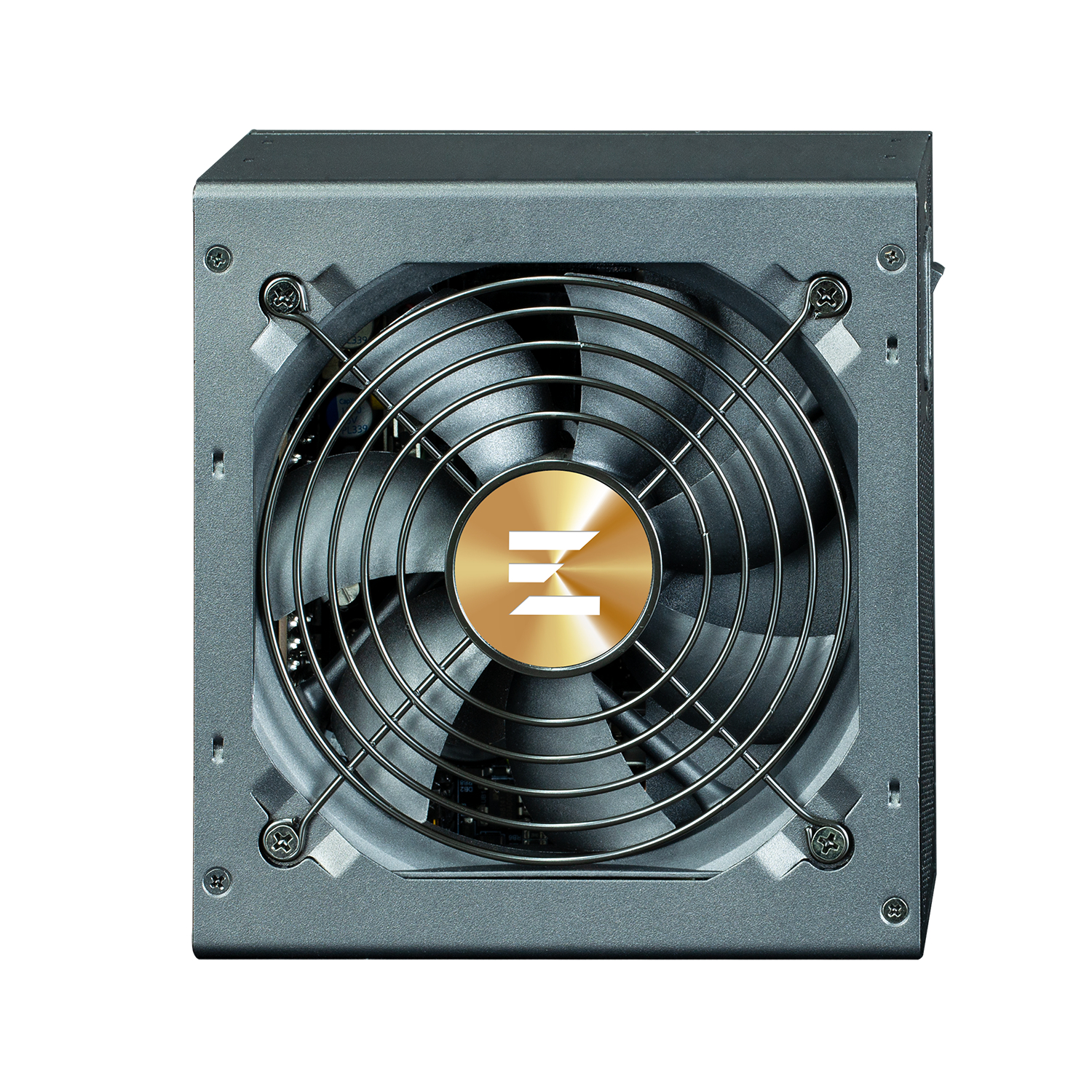

| Fan diameter | 12 cm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 40 °C |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | EAC, TÜV mark, RoHS, CB, CE, cTUVus |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 2.6 kg |
