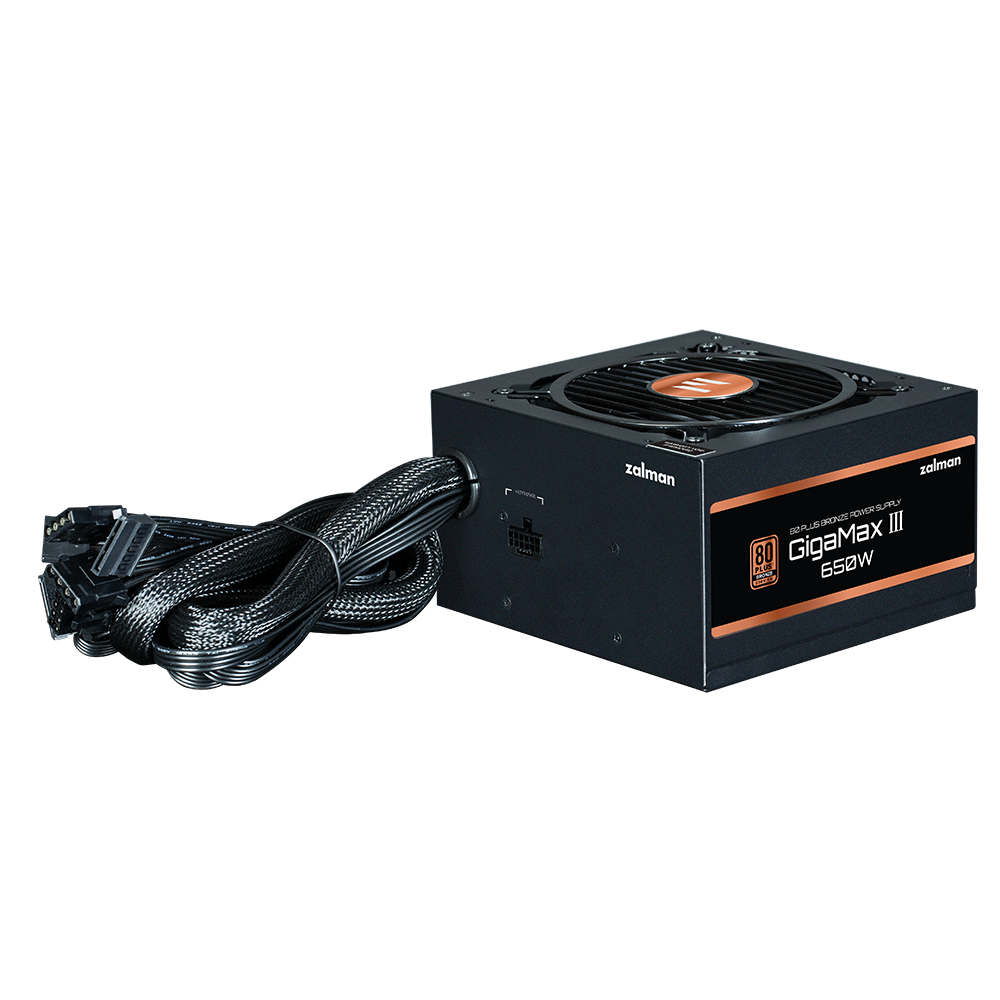

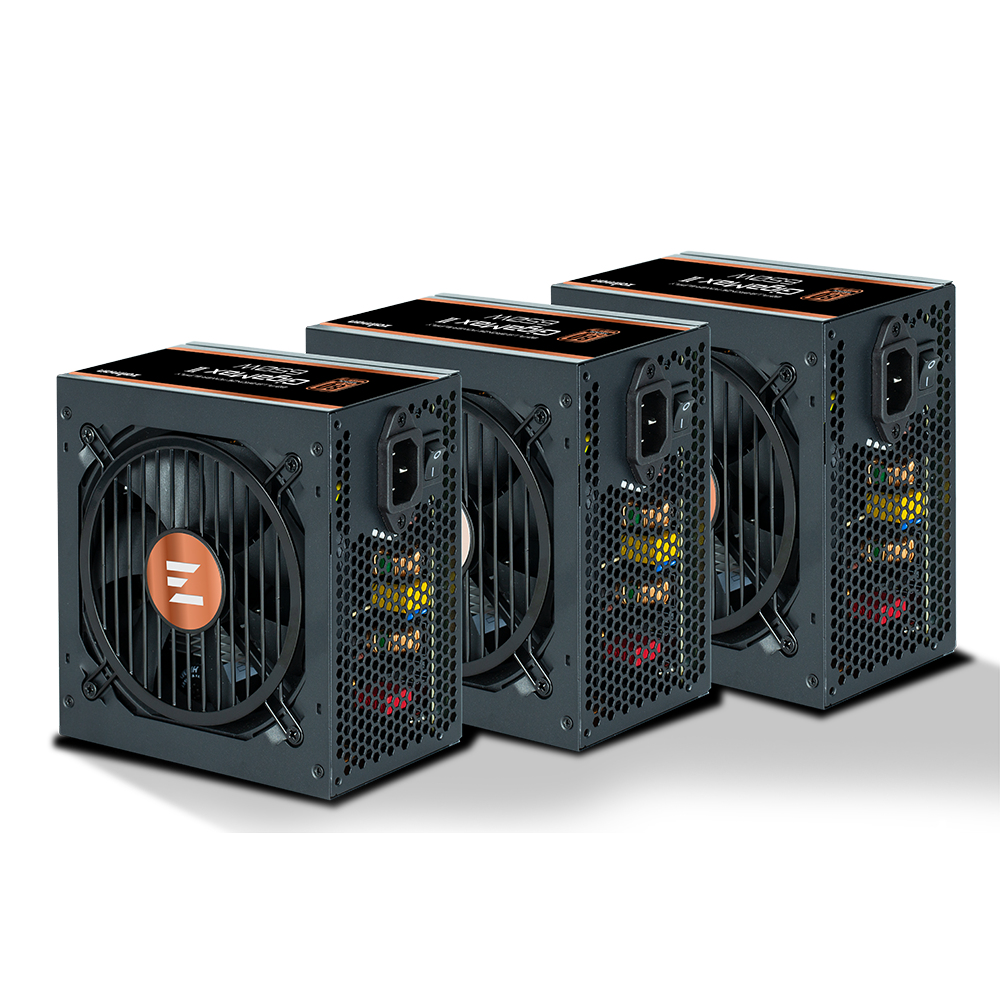

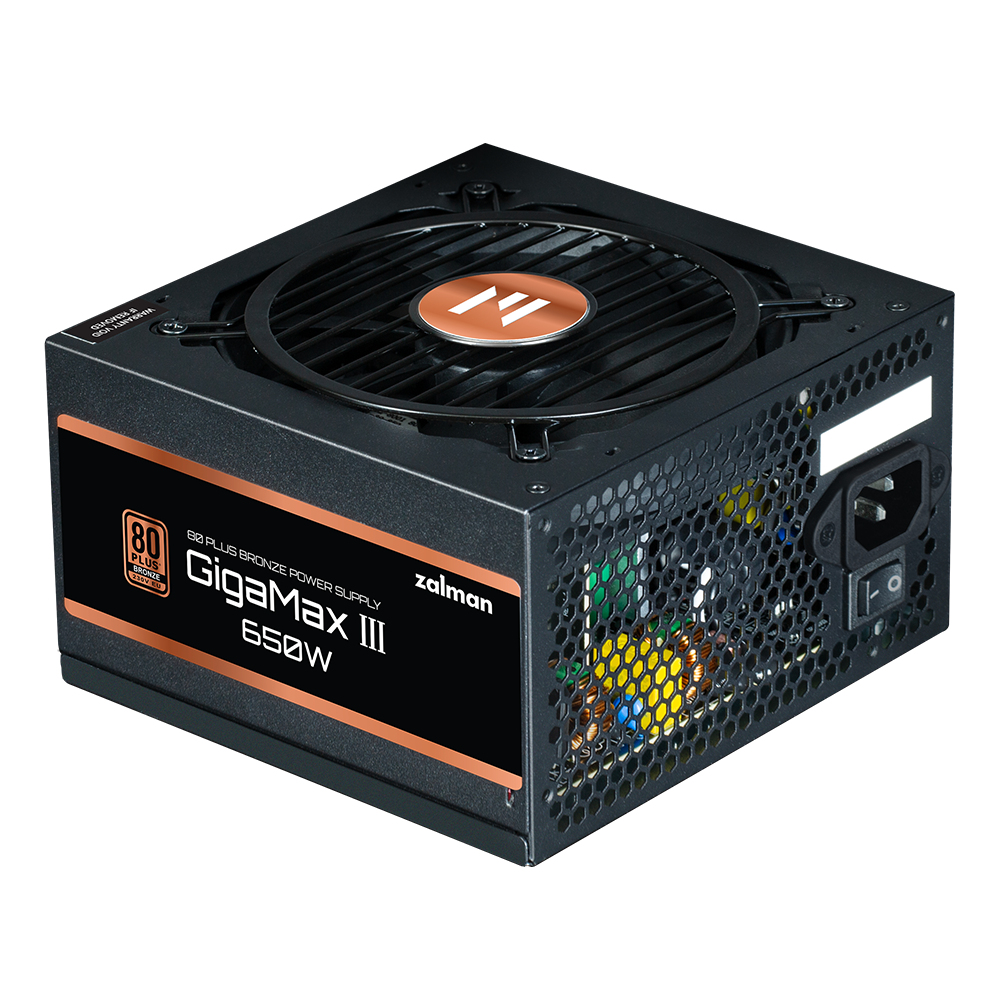

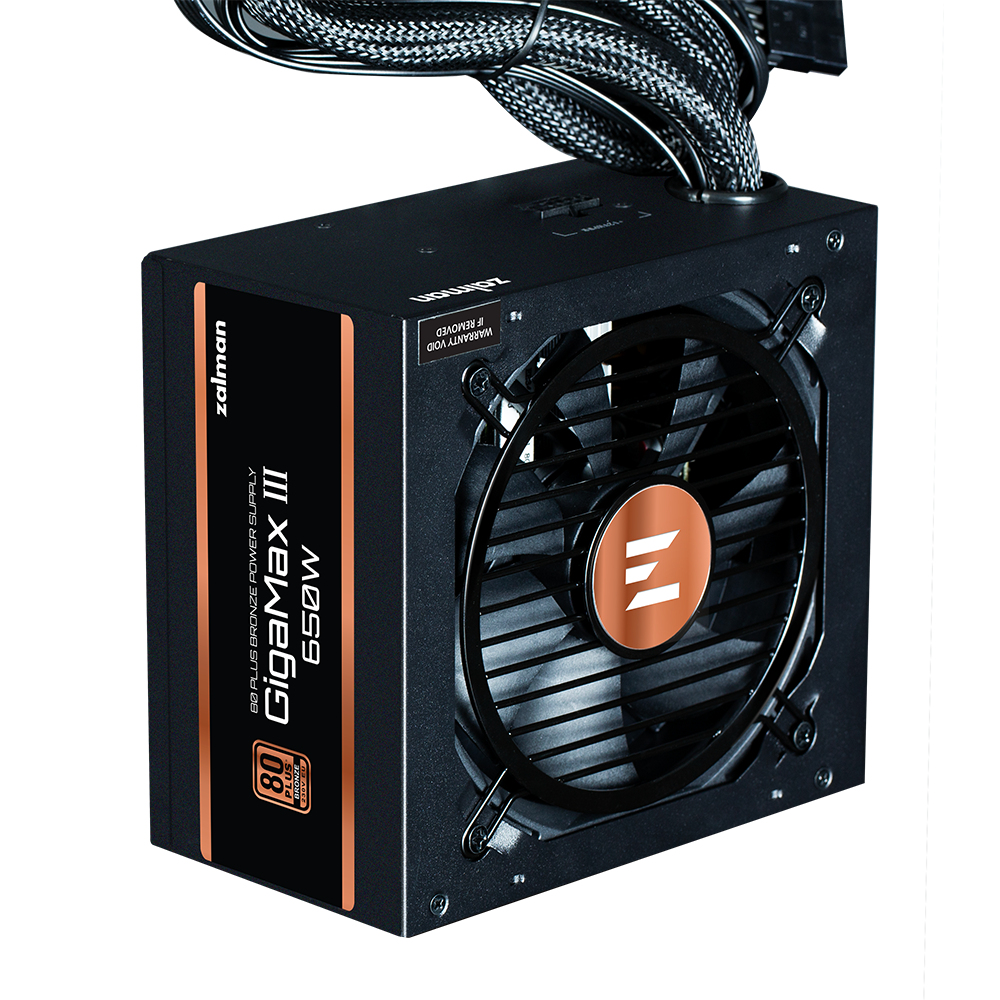

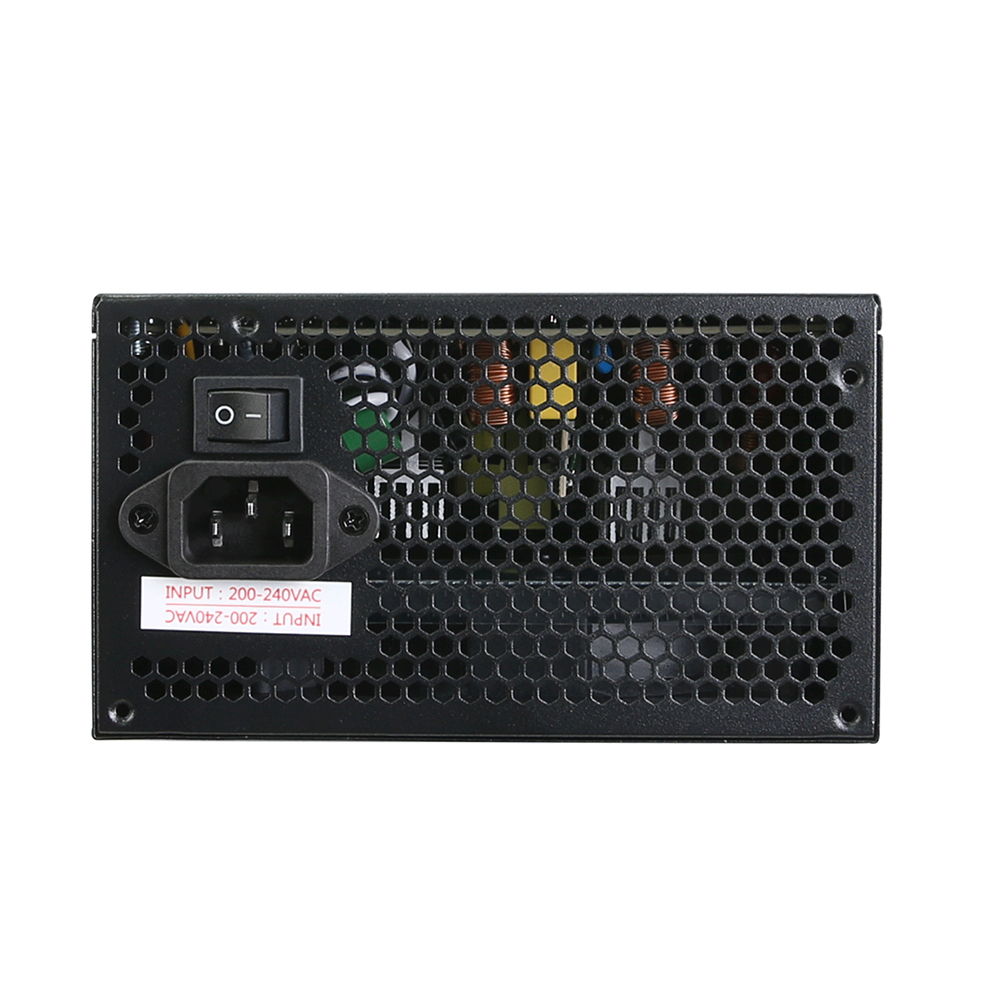

GigaMax III
Model GigaMax IIIPart no. ZM650-GV3EAN 8809213765568
31 specifications
- Weight1.65 kg
- ColourBlack
- Total power650 W
- Cabling typeSemi-Modular
- PurposePC
- Operating temperature (T-T)10 - 40 °C
Overview
- Weight
- 1.65 kg
- Colour
- Black
- Total power
- 650 W
- Cabling type
- Semi-Modular
- Purpose
- PC
- Operating temperature (T-T)
- 10 - 40 °C
- Brand
- Zalman
- Category
- Power Supply Unit
- Model
- GigaMax III
- Part numbers
- ZM650-GV3, ZM850-GV3, ZM750-GV3
- EAN / UPC
- 8809213765568, 8809213763878, 8809213765704
- Also known as
- Zalman GigaMax III power supply unit 650 W ATX Black
Specifications
31 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 650 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 650 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 54.16 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 88% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan diameter | 12 cm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 40 °C |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CB, CE, EAC, KC, RCM, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.65 kg |
